Question

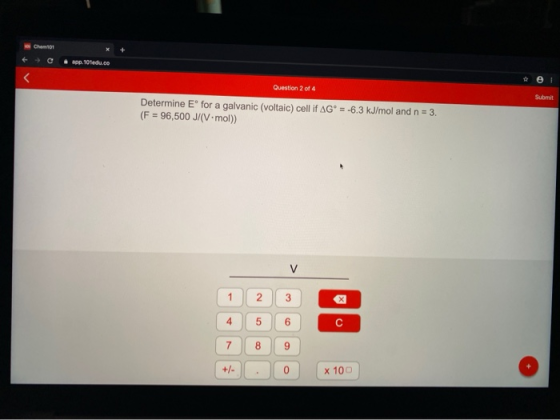

Chem Question 2 of 4 Determine Eº for a galvanic (voltaic) cell if AG = -6.3 kJ/mol and n = 3. (F = 96,500 J/(V.mol)) 1 2 3 4
science   chemistry
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

THE ANSWER TO ABOVE PROBLEM IS 0.0217 V.

THE QUESTION INVOLVES RELATION DELTA G = - nFE

THE SOLUTION IS AS FOLLOWS

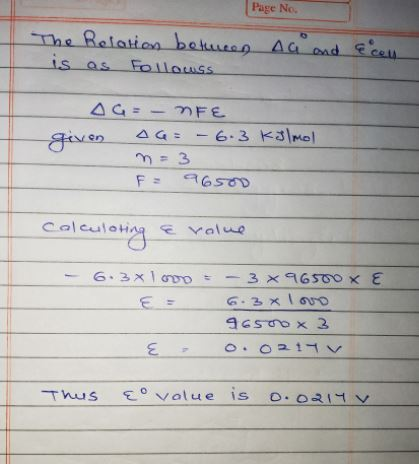

Page No. The Relation between is as followss. AG and scely AG = - OFE given aa= -6.3 Kulmol n = 3 F = 96500 Calculoting Evalu

0 0
Add a comment
