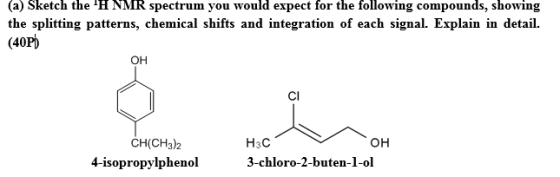

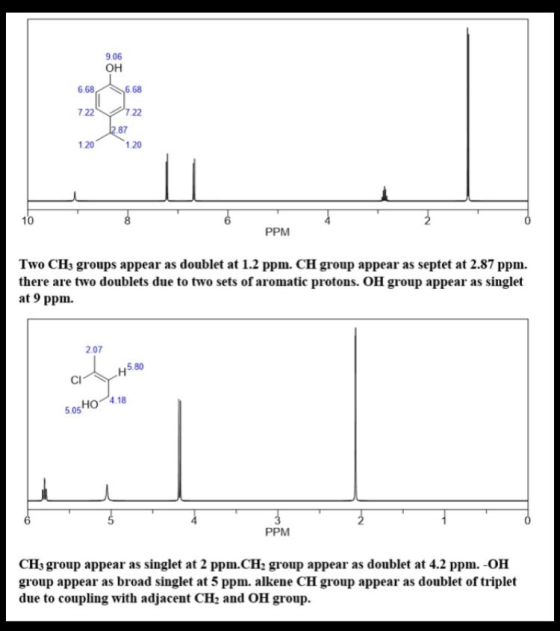

For NMR Structure of following compounds:
Why splitting is like this?Why chemical shifts are like this?So i have the answer of this question here.But i need detailed explanation.

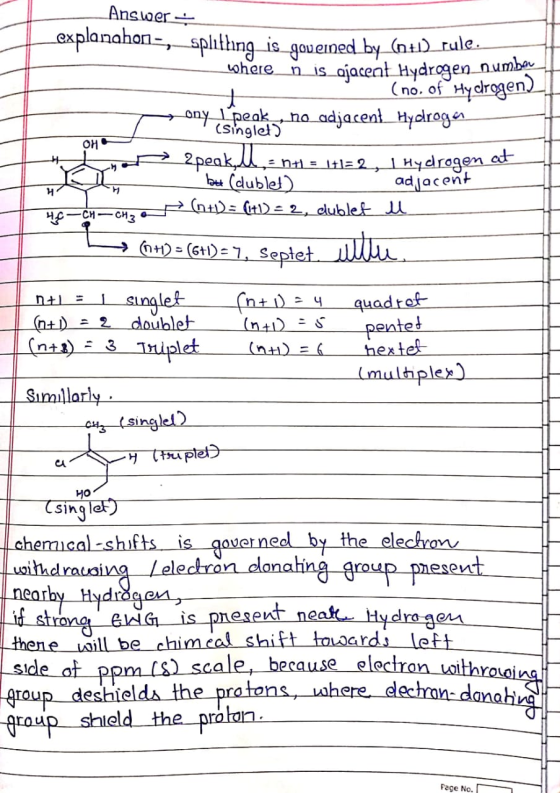

Homework Answers
this all concepts are very general , after studying all this effects we made a standard table to check the chemical shift of particular proton
