The signals in the 1H NMR spectrum of butanoic acid are labelled from A to D....
The signals in the 1H NMR spectrum of butanoic acid are labelled from A to D. Considering the spectrum, answer the questions below:

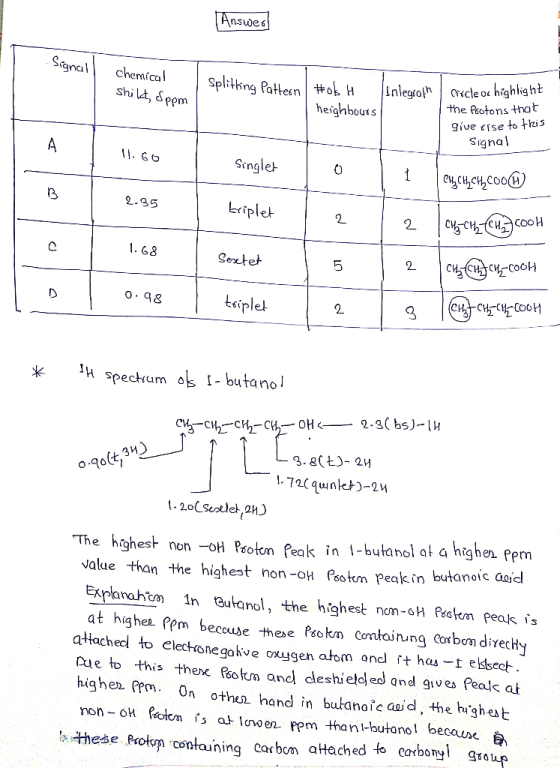

- [4 marks] Complete the table:
|
Signal |
Chemical shift, δ (ppm) |
Splitting pattern (singlet, doublet, triplet, quartet, pentet, sixtet, septet, octet, nonet, multiplet) |
# of H neighbours |
Integration (# of protons) |
Circle or highlight the proton(s) that give rise to this signal |
|
A |
11.60 |
CH3CH2CH2COOH |
|||
|
B |
2.35 |
CH3CH2CH2COOH |
|||
|
C |
1.68 |
CH3CH2CH2COOH |
|||
|
D |
0.98 |
CH3CH2CH2COOH |

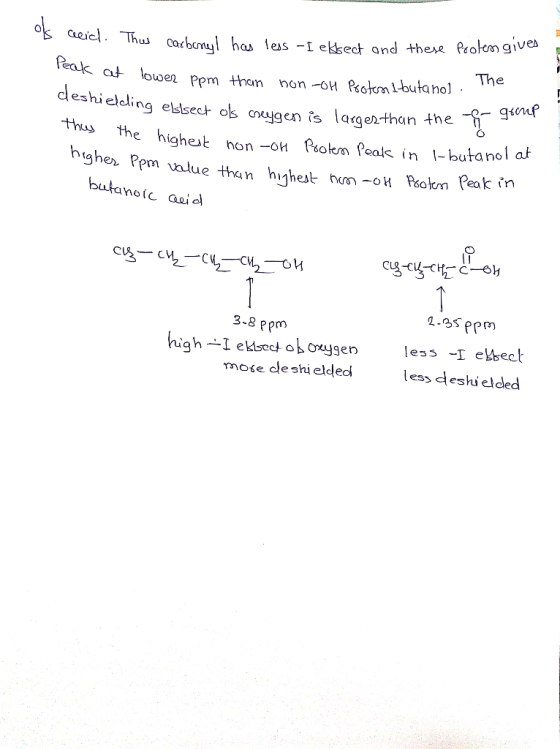

- [2 marks] Compare this spectrum with the spectrum of 1-butanol. A carboxylic acid functional group contains two electronegative oxygen atoms, compared to one oxygen atom in an alcohol functional group. Given this, why is the highest non-OH proton peak in 1-butanol at a higher ppm value than the highest non-OH proton peak in butanoic acid?
