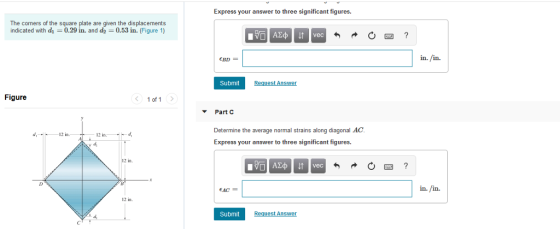

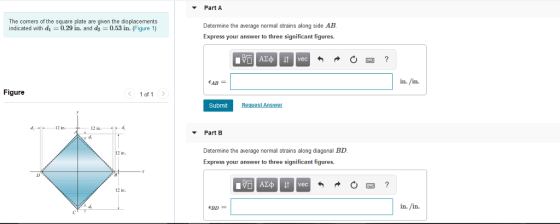

Part A The comers of the square plate are given the displacements indicated with d1-0.29 in. and d2 0.53 in. (Figure 1) Determine the average normal strains along side AB Express your answer to three significant figures. 四? EAB in. in. Figure 1 of 1 Submit i2 i 12 i ▼ Part B Determine the average normal strains along diagonal BD Express your answer to three significant figures. 12 in

please show the work for part A,B,C

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

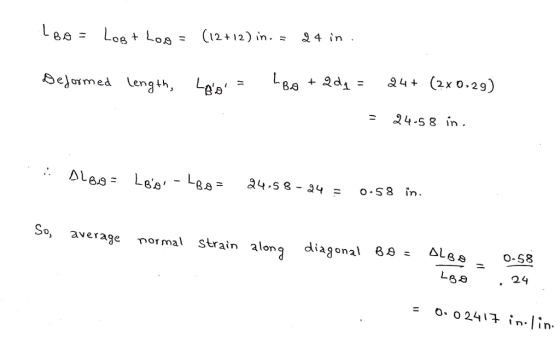

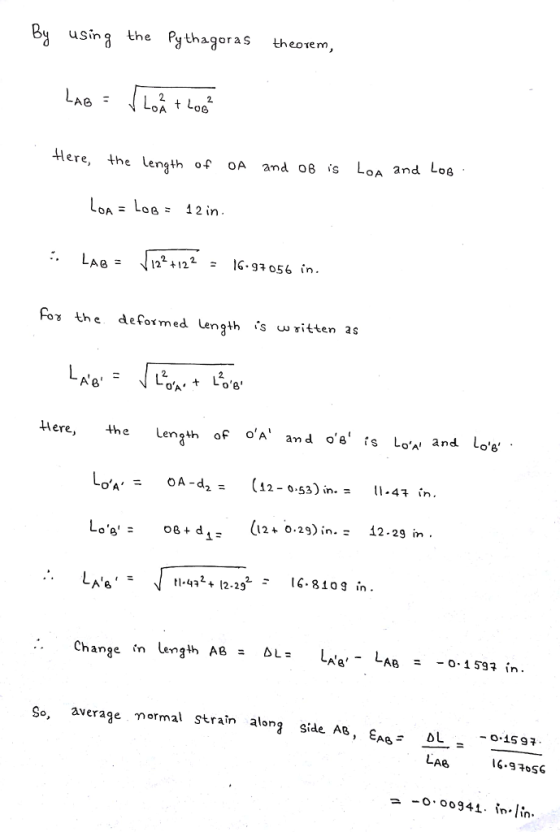

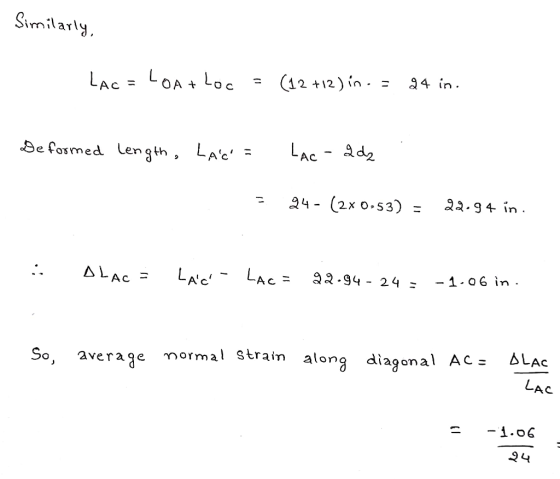

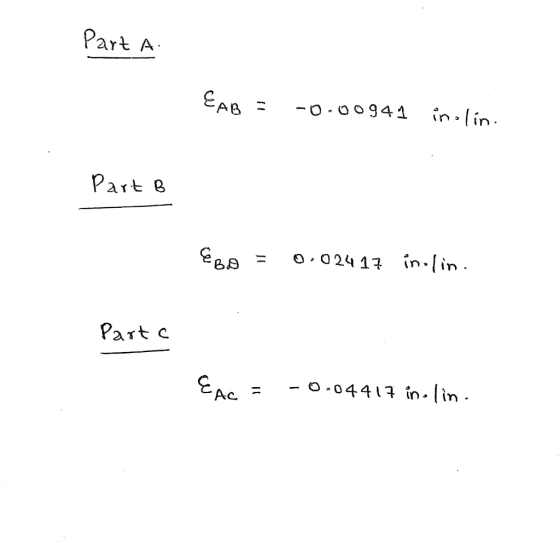

84 usina the Pythagoras theovem, 2 Here, 4he Length of oA and o8 is LoA and Loa = Log= 12in LAB= 12 2 + 122-1697056 in. Fo겡 t

0 0
