Use the principle of superposition to determine the current through Ry in the following figure. Let...
Use the principle of superposition to determine the currenti through R3 in the following figure. Let...

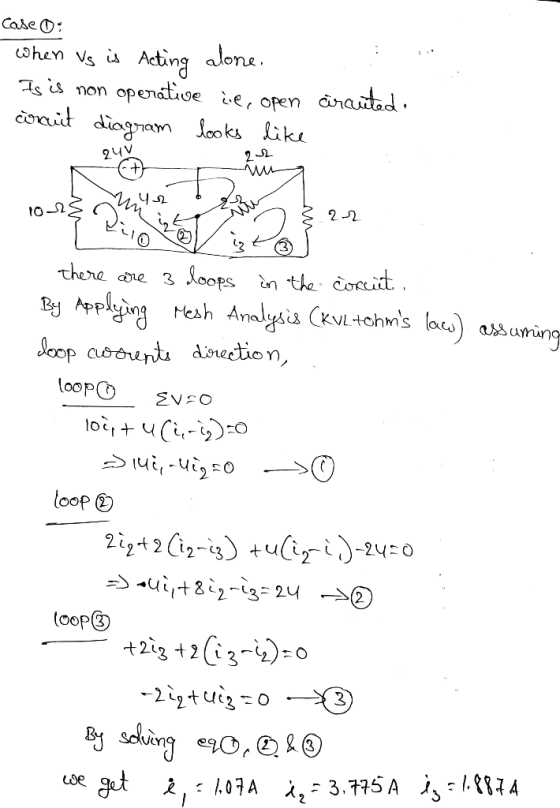

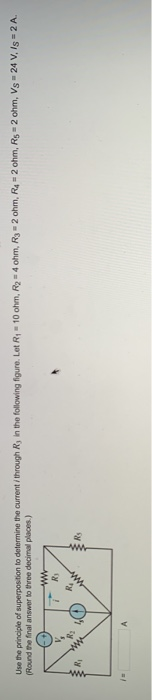

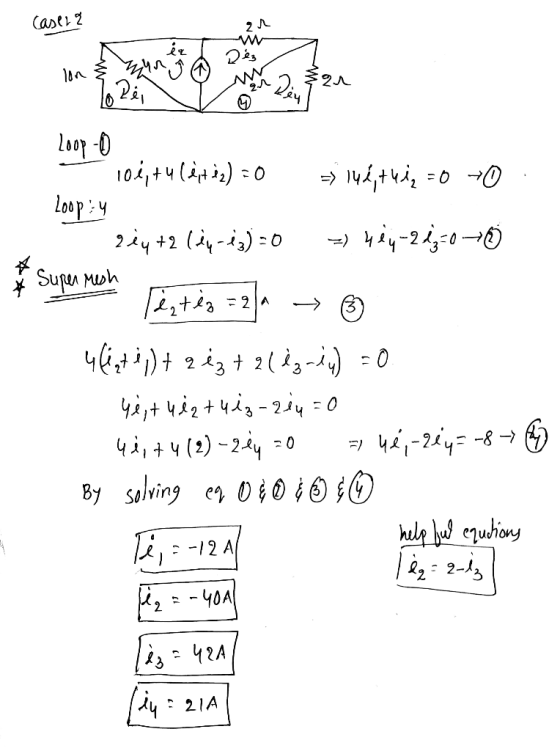

Use the principle of superposition to determine the currenti through R3 in the following figure. Let R1-10 ohm, R2-4 ohm,R3 2 ohm, R4-2 ohm, R5 2 ohm, Vs 8 V. Is 2 A. (Round the final answer to three decimal places.) i R3 R4 R2 Ri Rs
Use the principle of superposition to determine the component of the current i through R3 that...
Use the principle of superposition to determine the component of the current i through R3 that is due to Vs2. (Round the final answer to three decimal places.) TR4 Vsi {R Rs w Assume: Vs1 = Vs2 = 450 V R1 = 7.5 ohm R2 = 6 ohm R3 = 10.5 ohm R4 = 1.5 ohm R5 = 2 ohm The component of current IR3 -2 = 0
Determine the Thévenin equivalent network seen from node a to b in the given circut. Assume...
Determine the Thévenin equivalent network seen from node a to b in the given circut. Assume R - 10 ohm, Ry - 8 ohm, Ry - 15 ohm, R = 4 ohm Rs 1 ohm, Vs - 10V.is 2A (Round the final rowerowe decimal places.) ho Thevenin equivalent network seen from node a to bis
3. Use Superposition Theorem to solve for the current I through the 10-Ohm resistor. RSD I...
3. Use Superposition Theorem to solve for the current I through the 10-Ohm resistor. RSD I = 94() R$100 E 18 V
Use Superposition to find Current passing thru 6 ohm resistor Use Superposition method to find the...
Use Superposition to find Current passing thru 6 ohm
resistor
Use Superposition method to find the current passing through the 6 ohm resistor as shown below. 2012 100 V 4 A 25 V 9Ω 30(2
Use the superposition principle to determine v(t) due to each of the sources. Express your final...
Use the superposition principle to determine v(t) due to each of the sources. Express your final answer as a sum of sinusoidal functions. 4 cos(50t) A 5 52 25 mF 80 mH 82 2 cos (20t) V
Refer to the circuit of the given figure. Assume vs = 20 V. R - 12.40....
Refer to the circuit of the given figure. Assume vs = 20 V. R - 12.40. R, -110. R3 = 9.80 R = 50. R-5.20. R - 560, R, = 13 , and Ry - 1060 ww WW 12.50 points Determine the current through resistor R7 (Round the final value to two decimal places.) The current across the resistor is
Determine the voltage between nodes A and B in the circuit shown in the given figure....
Determine the voltage between nodes A and B in the circuit shown in the given figure. Given: Vs - 12 V Ry - 13 kg Ry - 221 ko R3 = 7,1 ko RA - 0.22 MO АС VO -OB The voltage between nodes A and B in the circuit is V. (Round the final answer to three decimal places.)
Problem 4.95 PSpice Multisim Part A Use the principle of superposition to find the current io...
Problem 4.95 PSpice Multisim Part A Use the principle of superposition to find the current io in the circuit(Figure 1)if ii = 3.6 A泊= 13 A , and U-61 V Express your answer with the appropriate units. iValue Units Submit Request Answer Provide Feedback Figure 1of1 1Ω 5Ω 2012 60Ω 3011
Use the principle of superposition to find the voltage v, in the circuit(Figure 1)if vi = 235 V
Problem 4.93 PSpice Multisim Part A Use the principle of superposition to find the voltage v, in the circuit(Figure 1)if vi = 235 V, v2 = 75 V and i = 18 A. Express your answer with the appropriate units. V = Value
Use the principle of superposition to determine the currenti through R3 in the following figure. Let R1-10 ohm, R2-4 ohm,R3 2 ohm, R4-2 ohm, R5 2 ohm, Vs 8 V. Is 2 A. (Round the final answer to three decimal places.) i R3 R4 R2 Ri Rs
Use the principle of superposition to determine the component of the current i through R3 that is due to Vs2. (Round the final answer to three decimal places.) TR4 Vsi {R Rs w Assume: Vs1 = Vs2 = 450 V R1 = 7.5 ohm R2 = 6 ohm R3 = 10.5 ohm R4 = 1.5 ohm R5 = 2 ohm The component of current IR3 -2 = 0
Determine the Thévenin equivalent network seen from node a to b in the given circut. Assume R - 10 ohm, Ry - 8 ohm, Ry - 15 ohm, R = 4 ohm Rs 1 ohm, Vs - 10V.is 2A (Round the final rowerowe decimal places.) ho Thevenin equivalent network seen from node a to bis
3. Use Superposition Theorem to solve for the current I through the 10-Ohm resistor. RSD I = 94() R$100 E 18 V
Use Superposition to find Current passing thru 6 ohm
resistor
Use Superposition method to find the current passing through the 6 ohm resistor as shown below. 2012 100 V 4 A 25 V 9Ω 30(2
Use the superposition principle to determine v(t) due to each of the sources. Express your final answer as a sum of sinusoidal functions. 4 cos(50t) A 5 52 25 mF 80 mH 82 2 cos (20t) V
Refer to the circuit of the given figure. Assume vs = 20 V. R - 12.40. R, -110. R3 = 9.80 R = 50. R-5.20. R - 560, R, = 13 , and Ry - 1060 ww WW 12.50 points Determine the current through resistor R7 (Round the final value to two decimal places.) The current across the resistor is
Determine the voltage between nodes A and B in the circuit shown in the given figure. Given: Vs - 12 V Ry - 13 kg Ry - 221 ko R3 = 7,1 ko RA - 0.22 MO АС VO -OB The voltage between nodes A and B in the circuit is V. (Round the final answer to three decimal places.)
Problem 4.95 PSpice Multisim Part A Use the principle of superposition to find the current io in the circuit(Figure 1)if ii = 3.6 A泊= 13 A , and U-61 V Express your answer with the appropriate units. iValue Units Submit Request Answer Provide Feedback Figure 1of1 1Ω 5Ω 2012 60Ω 3011
Problem 4.93 PSpice Multisim Part A Use the principle of superposition to find the voltage v, in the circuit(Figure 1)if vi = 235 V, v2 = 75 V and i = 18 A. Express your answer with the appropriate units. V = Value
