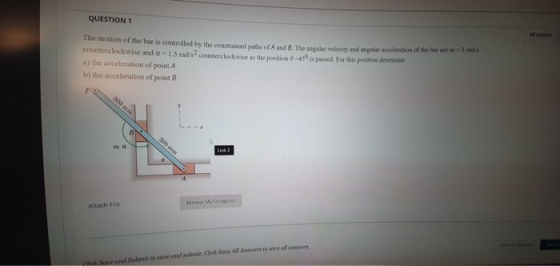

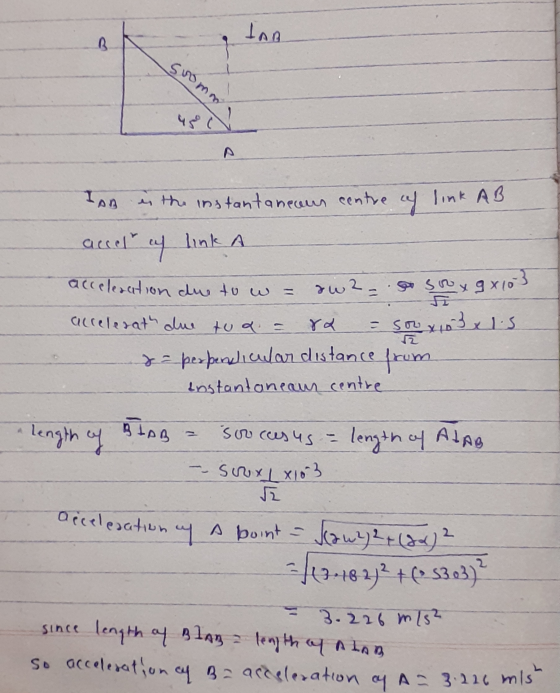

QUESTION 1 e The motion of the bar is controlled by the constrained ths of A...
Motion of the bar is controlled by the constrained paths of A and B. If the...
Motion of the bar is controlled by the constrained paths of A
and B. If the angular velocity of the bar is 2.4 rad/s
counterclockwise as the position ? = 37° is passed, determine the
speeds of points A and P.
535 2.4 rad/s 535
4m 8m System is horizontal. Motion of A constrained by the walls around. at instant 30*...
4m 8m System is horizontal. Motion of A constrained by the walls around. at instant 30* in the figure given angular velocity of OB bar is 45 rpm 8m clockwise direciton. Find the velocity and acceleration of A.
4m 8m System is horizontal. Motion of A constrained by the walls around. at instant 30* in the figure given angular velocity of OB bar is 45 rpm 8m clockwise direciton. Find the velocity and acceleration of A.
Do 3. PHYS 141-Physies Kaul Lecture Supplement/Worksheet 6Intre Cireular Motion A 1. Define and provide an...
Do 3.
PHYS 141-Physies Kaul Lecture Supplement/Worksheet 6Intre Cireular Motion A 1. Define and provide an example of each of the qeantisies belorw and discess their differences. Alvo, draw a vector diagram for each example showing any change in velocity vectors, and showing the centripetal acceleration vector wr to your velocity vectors if i. son mo. b) c) 2. Circular Motion Quantities. Define each of the following quantities used in circular motion and state the base units used in each...
QUESTION 3 a) With a simple schematic diagram, explain why rolling motion is considered as general...
QUESTION 3 a) With a simple schematic diagram, explain why rolling motion is considered as general plane motion. Explain also why we need to assume that there is no slipping occurs during rolling motion in kinematics analysis of rolling object. [CO1/P01/C2] (5 marks) b) Pin B is welded to the disk and freely slides within the slotted arm AC as shown in Figure Q3. The disk rotates about a fixed axis through point o at an angular velocity of w...
The bar, WA=100[lb] and L=3[ft], shown in figure is initially in the vertical position
The bar, WA=100[lb] and L=3[ft], shown in figure is initially in the vertical position. The bar is subjected to a couple moment of M=20 [lb-ft] and a force F=50[l b], which is always perpendicular to the end of bar. Also, the spring is attached to bar at distance L / 2 from point A, and has unstretched length of l0=1.2[ft]. The spring remains in horizontal position throughout the motion due to the roller guide at B. Determine angular velocity of...
3 A homogeneous slender bar AB with length and mass M rotates around point A. At...
3 A homogeneous slender bar AB with length and mass M rotates around point A. At the position shown, bar AB has an angular velocity w = 0 and angular acceleration. The inertial force system could be A α F* w=0 M* B F* = MLa/2 M = M10/3 W a 0=0 "С M* B F = ML./2 M = M2/12 c. F* a o=0 C M* B 1* = ML0/2 M = ML°/12 F* α 0=0 с M* B
5:16 lLTE ) Done 1 of 5 Assessment #1 (Kinematics of a Particle) Rectilinear Motion (Straight...
5:16 lLTE ) Done 1 of 5 Assessment #1 (Kinematics of a Particle) Rectilinear Motion (Straight linc Motion 3. The position of a point during the interval of time from r otor 6 is given by ** * m. (a) What is the maximum velocity during this interval of time, and at what time does it occur? (b) What is the acceleration when the velocity is a maximum? (20 m/s, 0 m/s 3. A test projectile is fired horizontally into...
12 of 11 > Rod AB rotates counterclockwise with a constant angular velocity w 3 rad/s....
12 of 11 > Rod AB rotates counterclockwise with a constant angular velocity w 3 rad/s. The collar consists of two pin-connected slider blocks which are constrained to move along the circular path and the red AB. Suppose that r=0.2 m (Figure 1) Review Determine the r and y components of the velocity of point located on the double collar when Express your answers using three significant figures separated by a comma : 15wing scale notation oe? 10 AED! vec...
QUESTION 1 A slider crank linkage is shown in figure 3 below. The angular velocity and...
QUESTION 1 A slider crank linkage is shown in figure 3 below. The angular velocity and the angular acceleration of the crank are 10 rad/s and 40 rad/s2 respectively. Link AB is 50 mm and link BC is 95 mm. A point D on link BC is 0.2 times BC from point B Determine the following; 1.1 velocity of the piston, 1.2 angular velocity of links BC 1.3 acceleration of the piston 1.4 angular acceleration of link BC 1.5 acceleration...
Question Completion Status: QUESTION 1 In the figure below, a disk of radius R rolls on the horiz...
i
dont know how to do questions 1-6
Question Completion Status: QUESTION 1 In the figure below, a disk of radius R rolls on the horizontal surface as a small disk slides through a slot of radius r milled into the larger disk. At the instant shown: e the centers of the large disk and the slot milled into the disk are coincident with O; the point at which rolling contact occurs is coincident with B directly below O; the...
Motion of the bar is controlled by the constrained paths of A
and B. If the angular velocity of the bar is 2.4 rad/s
counterclockwise as the position ? = 37° is passed, determine the
speeds of points A and P.
535 2.4 rad/s 535
4m 8m System is horizontal. Motion of A constrained by the walls around. at instant 30* in the figure given angular velocity of OB bar is 45 rpm 8m clockwise direciton. Find the velocity and acceleration of A.
4m 8m System is horizontal. Motion of A constrained by the walls around. at instant 30* in the figure given angular velocity of OB bar is 45 rpm 8m clockwise direciton. Find the velocity and acceleration of A.
Do 3.
PHYS 141-Physies Kaul Lecture Supplement/Worksheet 6Intre Cireular Motion A 1. Define and provide an example of each of the qeantisies belorw and discess their differences. Alvo, draw a vector diagram for each example showing any change in velocity vectors, and showing the centripetal acceleration vector wr to your velocity vectors if i. son mo. b) c) 2. Circular Motion Quantities. Define each of the following quantities used in circular motion and state the base units used in each...
QUESTION 3 a) With a simple schematic diagram, explain why rolling motion is considered as general plane motion. Explain also why we need to assume that there is no slipping occurs during rolling motion in kinematics analysis of rolling object. [CO1/P01/C2] (5 marks) b) Pin B is welded to the disk and freely slides within the slotted arm AC as shown in Figure Q3. The disk rotates about a fixed axis through point o at an angular velocity of w...
The bar, WA=100[lb] and L=3[ft], shown in figure is initially in the vertical position. The bar is subjected to a couple moment of M=20 [lb-ft] and a force F=50[l b], which is always perpendicular to the end of bar. Also, the spring is attached to bar at distance L / 2 from point A, and has unstretched length of l0=1.2[ft]. The spring remains in horizontal position throughout the motion due to the roller guide at B. Determine angular velocity of...
3 A homogeneous slender bar AB with length and mass M rotates around point A. At the position shown, bar AB has an angular velocity w = 0 and angular acceleration. The inertial force system could be A α F* w=0 M* B F* = MLa/2 M = M10/3 W a 0=0 "С M* B F = ML./2 M = M2/12 c. F* a o=0 C M* B 1* = ML0/2 M = ML°/12 F* α 0=0 с M* B
5:16 lLTE ) Done 1 of 5 Assessment #1 (Kinematics of a Particle) Rectilinear Motion (Straight linc Motion 3. The position of a point during the interval of time from r otor 6 is given by ** * m. (a) What is the maximum velocity during this interval of time, and at what time does it occur? (b) What is the acceleration when the velocity is a maximum? (20 m/s, 0 m/s 3. A test projectile is fired horizontally into...
12 of 11 > Rod AB rotates counterclockwise with a constant angular velocity w 3 rad/s. The collar consists of two pin-connected slider blocks which are constrained to move along the circular path and the red AB. Suppose that r=0.2 m (Figure 1) Review Determine the r and y components of the velocity of point located on the double collar when Express your answers using three significant figures separated by a comma : 15wing scale notation oe? 10 AED! vec...
QUESTION 1 A slider crank linkage is shown in figure 3 below. The angular velocity and the angular acceleration of the crank are 10 rad/s and 40 rad/s2 respectively. Link AB is 50 mm and link BC is 95 mm. A point D on link BC is 0.2 times BC from point B Determine the following; 1.1 velocity of the piston, 1.2 angular velocity of links BC 1.3 acceleration of the piston 1.4 angular acceleration of link BC 1.5 acceleration...
i
dont know how to do questions 1-6
Question Completion Status: QUESTION 1 In the figure below, a disk of radius R rolls on the horizontal surface as a small disk slides through a slot of radius r milled into the larger disk. At the instant shown: e the centers of the large disk and the slot milled into the disk are coincident with O; the point at which rolling contact occurs is coincident with B directly below O; the...
