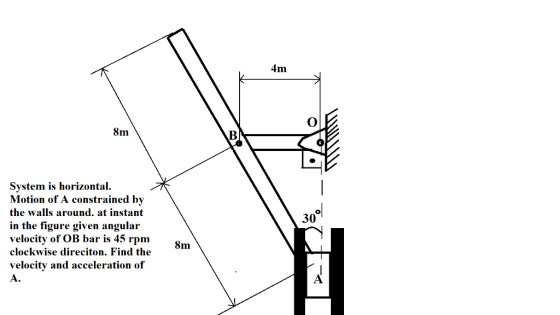

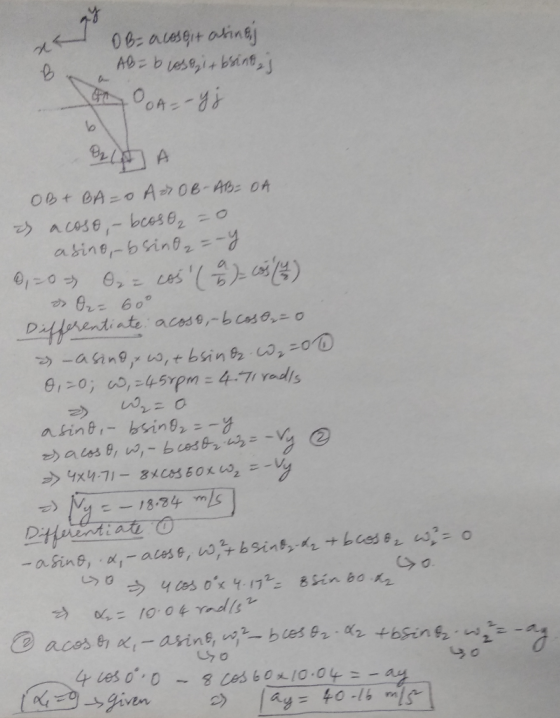

4m 8m System is horizontal. Motion of A constrained by the walls around. at instant 30*...
Problem 4(20 points): At the given instant bar AB is rotating with an angular velocity of...
Problem 4(20 points): At the given instant bar AB is rotating with an angular velocity of 4.0 rad/s and an angular acceleration of 3.5 rad/s, both counter-clockwise. Pin A is fixed and piston C is constrained to move ina horizontal slot at the same elevation as pin A. Determine the magnitude of the velocity of piston C and the magnitude of the acceleration of pin B at this instant. Problem 420 points) At the given insadoekvise. Pin A is fixed...
Problem 15.109 General plane motion, find relationships among accelerations Knowing that at the instant shown crank...
Problem 15.109 General plane motion, find relationships among accelerations Knowing that at the instant shown crank BC has a constant angular velocity of 81 rpm clockwise, determine the acceleration of point A and point D. (Round the final answers to one decimal place.) 8 in. 4 in 8 in. ing? Click to select) The acceleration of point A is The acceleration of point D is
QUESTION 1 e The motion of the bar is controlled by the constrained ths of A...
QUESTION 1 e The motion of the bar is controlled by the constrained ths of A and B The velocity and angular acceleration of the hat are w counterclockwise and a 1.5 rad's counterclockwise as the position 8 -45° is passed. For this position determine a) the acceleration of point A b) the acceleration of point B Attach File and submit to see and submit. Click Saw All Arrow
Question 6 of 8 Question 6 points Save Anawer At a given instant the top B...
Question 6 of 8 Question 6 points Save Anawer At a given instant the top B of the ladder has an acceleration ag the instant shown. Note motion to the left has negative velocity 1 ms and a velocilty of va 8m/s both acting downward. Determine the velocity (in ms) of the bottom A of the ladder at Question 5 of 8 Question 5 points Save Anwer At a given instant the top B of the ladder has an acceleration...
Horizontal motion of the piston rod of the hydraulic cylinder controls the rotation of link OB...
Horizontal motion of the piston rod of the hydraulic cylinder controls the rotation of link OB about O. For the instant represented, VA = 2.3 m/s and OB is horizontal. Determine the angular velocity Wos (positive if counterclockwise, negative if clockwise) of OB for this instant. Solve for the angular velocity of OB by the method of this article. A VA = 2.3 m/s 0 290 mm 225 mm B 165 mm Answer: WOB = rad/s the tolerance is +/-2%
At a given instant the roller A on the bar has the velocity v = 3...
At a given instant the roller A on the bar has the velocity v =
3 m/s and acceleration a = 6.5 m/s2
Determine the acceleration of the roller B at this instant.
Determine the bar's angular acceleration at this instant
measured counterclockwise.
and Acceleration = 6.5 mis - Part A At a given instant the roller 4 on the bar has the velocity n = 3 m (Figure 1) Determine the velocity of the roler at this Inalart. Express...
A jogger runs around a circular track of 30 m radius, as shown in the figure....
A jogger runs around a circular track of 30 m radius, as shown
in the figure. She runs at constant speed in a clockwise direction
for a few minutes. She completes a round in 40 s.
Using N, S, E, W, cw, or ccw for the direction, compare the
directions and magnitudes of her linear velocity, linear
acceleration, angular velocity and angular acceleration at A, B and
C
A particle moves horizontally in uniform circular motion, over a horizontal xy plane. At one instant,...
A particle moves horizontally in uniform circular motion, over a horizontal xy plane. At one instant, it moves through the point with coordinates (x, y) with a velocity of vi and an acceleration of -aj. In these expressions, v and a are the speed and the magnitude of acceleration, respectively, and thus are positive quantities. In terms of the variables given, what are the coordinates (a) xo and (b) Yo of the center of the circular path? (a) Xo =...
Help me with this problem as soon as possible . Thank you The differential gear system...
Help me with this problem as soon as possible . Thank you
The differential gear system - differential train is shown in the figure 1. r =41, = 45 : a=30° Given data 3 & = 10 Figure 1 a) Determine Dof of system and analyze the motion of the rigid bodies of the mechanical system. b) Determine the angular velocity w of the 2nd gear and velocity of particle A on the 2nd gear. c) Determine the angular acceleration...
At the instant shown, point B has a velocity and acceleration, ūB = 4ſ ft's and...
At the instant shown, point B has a velocity and acceleration, ūB = 4ſ ft's and àg = 1.5j ft/s, respectively. It is also known that ã ab = -3.945k rad/s. Answer the following questions: A [20%] A/B = T + B [20%] Draw the vector ŽABXA/B in the bar figure below. C [20%] Draw the vector WABXWABXPA/B) in the bar figure below. D [40%] Use relative motion analysis to find aA. 1 ft 2 ft VB = 4 ft/s...
Problem 4(20 points): At the given instant bar AB is rotating with an angular velocity of 4.0 rad/s and an angular acceleration of 3.5 rad/s, both counter-clockwise. Pin A is fixed and piston C is constrained to move ina horizontal slot at the same elevation as pin A. Determine the magnitude of the velocity of piston C and the magnitude of the acceleration of pin B at this instant. Problem 420 points) At the given insadoekvise. Pin A is fixed...
Problem 15.109 General plane motion, find relationships among accelerations Knowing that at the instant shown crank BC has a constant angular velocity of 81 rpm clockwise, determine the acceleration of point A and point D. (Round the final answers to one decimal place.) 8 in. 4 in 8 in. ing? Click to select) The acceleration of point A is The acceleration of point D is
QUESTION 1 e The motion of the bar is controlled by the constrained ths of A and B The velocity and angular acceleration of the hat are w counterclockwise and a 1.5 rad's counterclockwise as the position 8 -45° is passed. For this position determine a) the acceleration of point A b) the acceleration of point B Attach File and submit to see and submit. Click Saw All Arrow
Question 6 of 8 Question 6 points Save Anawer At a given instant the top B of the ladder has an acceleration ag the instant shown. Note motion to the left has negative velocity 1 ms and a velocilty of va 8m/s both acting downward. Determine the velocity (in ms) of the bottom A of the ladder at Question 5 of 8 Question 5 points Save Anwer At a given instant the top B of the ladder has an acceleration...
Horizontal motion of the piston rod of the hydraulic cylinder controls the rotation of link OB about O. For the instant represented, VA = 2.3 m/s and OB is horizontal. Determine the angular velocity Wos (positive if counterclockwise, negative if clockwise) of OB for this instant. Solve for the angular velocity of OB by the method of this article. A VA = 2.3 m/s 0 290 mm 225 mm B 165 mm Answer: WOB = rad/s the tolerance is +/-2%
At a given instant the roller A on the bar has the velocity v =
3 m/s and acceleration a = 6.5 m/s2
Determine the acceleration of the roller B at this instant.
Determine the bar's angular acceleration at this instant
measured counterclockwise.
and Acceleration = 6.5 mis - Part A At a given instant the roller 4 on the bar has the velocity n = 3 m (Figure 1) Determine the velocity of the roler at this Inalart. Express...
A jogger runs around a circular track of 30 m radius, as shown
in the figure. She runs at constant speed in a clockwise direction
for a few minutes. She completes a round in 40 s.
Using N, S, E, W, cw, or ccw for the direction, compare the
directions and magnitudes of her linear velocity, linear
acceleration, angular velocity and angular acceleration at A, B and
C
A particle moves horizontally in uniform circular motion, over a horizontal xy plane. At one instant, it moves through the point with coordinates (x, y) with a velocity of vi and an acceleration of -aj. In these expressions, v and a are the speed and the magnitude of acceleration, respectively, and thus are positive quantities. In terms of the variables given, what are the coordinates (a) xo and (b) Yo of the center of the circular path? (a) Xo =...
Help me with this problem as soon as possible . Thank you
The differential gear system - differential train is shown in the figure 1. r =41, = 45 : a=30° Given data 3 & = 10 Figure 1 a) Determine Dof of system and analyze the motion of the rigid bodies of the mechanical system. b) Determine the angular velocity w of the 2nd gear and velocity of particle A on the 2nd gear. c) Determine the angular acceleration...
At the instant shown, point B has a velocity and acceleration, ūB = 4ſ ft's and àg = 1.5j ft/s, respectively. It is also known that ã ab = -3.945k rad/s. Answer the following questions: A [20%] A/B = T + B [20%] Draw the vector ŽABXA/B in the bar figure below. C [20%] Draw the vector WABXWABXPA/B) in the bar figure below. D [40%] Use relative motion analysis to find aA. 1 ft 2 ft VB = 4 ft/s...
