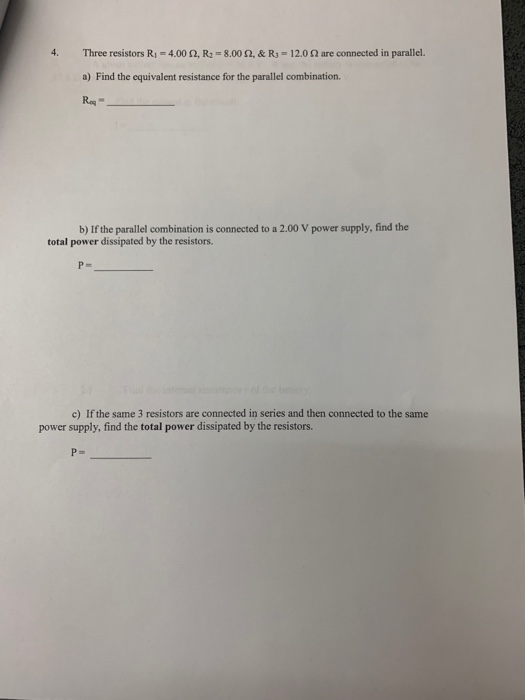

Three resistors R, -4.002, R2 = 8.00 2. & R = 12.0 are connected in parallel....

Question

Question

science physics

Answer 1

Answer #1

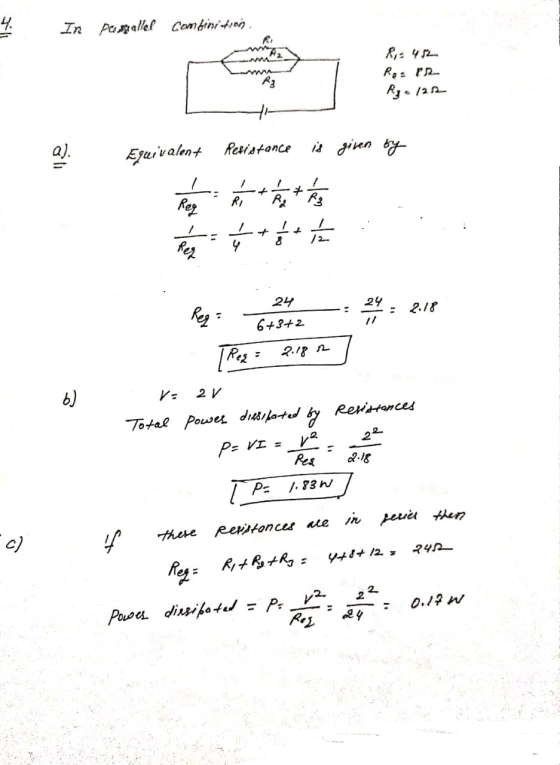

4. In persalel combiniting 33 R.: 412 Pas 8 R₂ = /22 a). Equivalent Resistance is given by kan ¢ ¢¢¢ . - 24 Rez 6+3+2 -- :24:

Answer 2

Similar Homework Help Questions

Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A...

Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A potential difference of 12.0V is maintained between points a and b. Three resistors connected in parallel. The Another circuit with three resistors and a voltage across each resistor is 12.0 V. battery. Is it equivalent to the circuit in (a)? a Ž 3.00 6.00 9.00 3.00 6.00 09.00 (a) Calculate the equivalent resistance of the circuit. SOLUTION Conceptualize Figure (a) shows that we are...
7. Three resistors having resistances of 2.00 2, 3.002, and 4.002 are connected in series to...

7. Three resistors having resistances of 2.00 2, 3.002, and 4.002 are connected in series to a 24.0-Vbattery that has negligi- ble internal resistance. Find a) the equivalent resistance of the combination; b) the current in each resistor; c) the total cur rent through the battery; d) the voltage across each resistor, e) the power dissipated in each resistor.
2. Two resistors R and R2 may be connected either in series or in parallel across...

2. Two resistors R and R2 may be connected either in series or in parallel across a battery with emfe. The power consumed by the parallel combination is five times that of the series combination. Find the ratio R R2/ (RR2)

Resistors R1 = 4on and R2 = 60Ω are connected series and the combination is parallel...

Resistors R1 = 4on and R2 = 60Ω are connected series and the combination is parallel Ra 36n, the combined resistors is connected to a battery of unknown voltage. If the voltage across R2 is 10V, A. What is the voltage of the battery? B. what is the power dissipated by R
A circuit has three resistors. R2 and R3 are in parallel. This combination is then connected...

A circuit has three resistors. R2 and R3 are in parallel. This combination is then connected in series with resistor R1. It is known that R1=1 ohm, R2= 2 ohms, and R3= 3 ohms. Find the current through R2. The battery has 12 V. Ignore the internal resistance.
a)Three resistors, each having a resistance, R, are connected in parallel to a 1.50 V battery....

a)Three resistors, each having a resistance, R, are connected in parallel to a 1.50 V battery. If the resistors dissipate a total power of 3.00 W, what is the value of R? b) Calculate the charge stored on a 2.0 nF capacitor connected to a 12.0 V battery.

Three resistors, R1 = 3.00 ohm, R2 = 4.00 ohm, R3 = 5.00 ohm, are connected...

Three resistors, R1 = 3.00 ohm, R2 = 4.00 ohm, R3 = 5.00 ohm, are connected in series. With what single equivalent resistance Req could the series combination be replaced? If the series combination is connected to a 12.0 V battery, what is the voltage across each resistor?
Example 2: Three resistors are connected in parallel as shown. A potential difference of 18.0 V...

Example 2: Three resistors are connected in parallel as shown. A potential difference of 18.0 V is maintained between points a and b. (A) Calculate the equivalent resistance of the circuit 18.0 V 3.00 (2] 6.00 Ω| 9.00 Ω (B) Find the current in each resistor (C) Calculate the power delivered to each resistor and the total power delivered to the combination of resistors
the figure shows six different arrangements of identical resistors of resistance R. (a) For each arrangement,...

the figure shows six different arrangements of identical resistors of resistance R. (a) For each arrangement, give the algebraic expression for the equivalent resistance of the diagrammed arrangement, and evaluate the expression for R = 840 ?. (b) Evaluate the current through each resistor when the combination is connected to a power supply giving 1200 V. (c) Evaluate the power dissipated in each resistor of each combination,and the total power dissipated by each full combination, when the combination is connected...

Consider the circuit below with three resistors Two resistors, R2 (10 Ω) and R3 (10 Ω)...

Consider the circuit below with three resistors Two resistors, R2 (10 Ω) and R3 (10 Ω) are connected in parallel to another resistor R1 (5 Ω). And the circuit is connected to a 20 V power supply 9. Find the equivalent resistance (R) of the circuit shown above. (3 pts) Answer 10. Find the current that goes through R1. (4 pts) Answer 11. Find the potential difference through resistors in parallel (R2 and R3). (4 pts) Answer
