For the beam and loading shown, design the cross section of the beam, knowing that the...

Question

Question

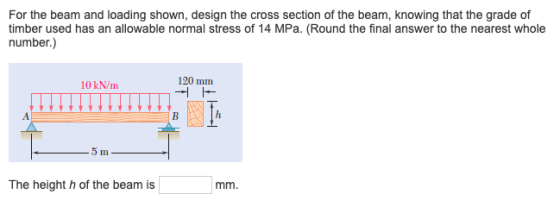

For the beam and loading shown, design the cross section of the beam, knowing that the grade of timber used has an allowable

engineering Mechanical-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

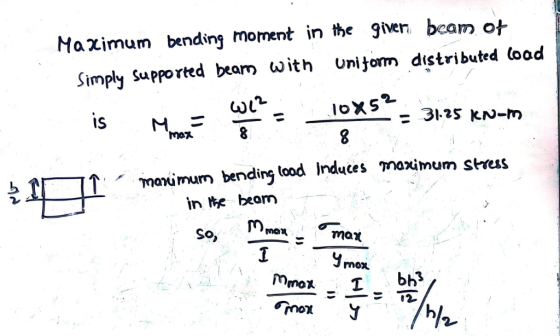

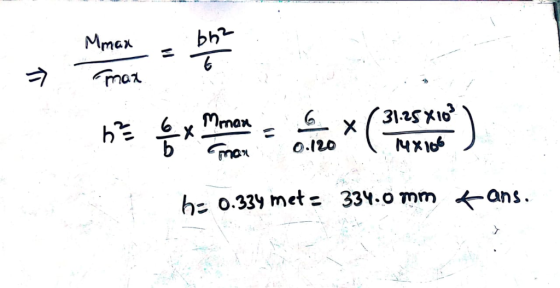

Maximum bending moment in the giver beam of uniform distributed lood Simply supported beam with is Mu= 105= 31.25 kN-M 2 max 190 he 0.334 met: 334.0 mm fans.

Add a comment
