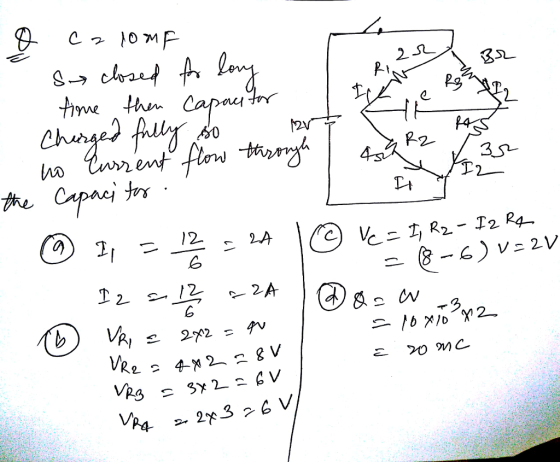

96. Consider the circuit below. The capacitor has a capacitance of 10 mF. The switch...
A circuit is constructed with four resistors, one capacitor, one battery and a switch as shown....
A circuit is constructed with four resistors, one capacitor, one
battery and a switch as shown. The values for the resistors are:
R1
= R2
= 67 ?, R3
= 96 ? and R4
= 77 ?. The capacitance is C = 48 ?F and the battery voltage is V =
24 V.
Consider the circuit above, with R5
= 67 ? in series with the capacitor. Once again, the switch has
been open for a long time when at...
A circuit is constructed with four resistors, one capacitor, one battery and a switch as shown....
A circuit is constructed with four resistors, one capacitor, one
battery and a switch as shown. The values for the resistors are: R1
= R2 = 60 Ω, R3 = 49 Ω and R4 = 133 Ω. The capacitance is C = 75 μF
and the battery voltage is V = 24 V.
1)
The switch has been open for a long time when at time t = 0, the
switch is closed. What is I1(0), the magnitude of the...
A circuit is constructed with four resistors, one capacitor, one battery and a switch as shown....
A circuit is constructed with four resistors, one capacitor, one
battery and a switch as shown. The values for the resistors are:
R1 = R2 = 34 ?, R3 = 114 ? and
R4 = 145 ?. The capacitance is C = 46 ?F and the battery
voltage is V = 12 V. The positive terminal of the battery is
indicated with a + sign.
1) The switch has been open for a long time when at time t =...
Consider the RC circuit in the figure. The switch has been open for a long time...
Consider the RC circuit in the figure. The switch has been open for a long time and is closed at t=0s. The capacitor initially uncharged. (a) Immediately after the switch is closed, what is value of the current through each resistor? (b) After a long time has elapsed and the capacitor is fully charged, what is the value of the current through each resistor and the charge on the capacitor?
A circuit is constructed with four resistors, one capacitor, onebattery and a switch as shown....
A circuit is constructed with four resistors, one capacitor, one
battery and a switch as shown. The values for the resistors are:
R1 = R2 = 56 Ω, R3 = 45 Ω and
R4 = 91 Ω. The capacitance is C = 44 μF and the battery
voltage is V = 24 V.4)Consider the circuit above, with R5 = 81 Ω in series
with the capacitor. Once again, the switch has been open for a long
time when at time...
A circuit is constructed with four resistors, one capacitor, one battery and a switch as shown....
A circuit is constructed with four resistors, one capacitor, one battery and a switch as shown. The values for the resistors are: R1 = R2 = 48 Q, R3 = 117 and R4 = 127 . The capacitance is C = 56 uF and the battery voltage is V = 24 V. 1) The switch has been open for a long time when at time t = 0, the switch is closed. What is 110), the magnitude of the current...
please answer asap Problem 2 In the given RC circuit, a capacitor is connected to a...
please answer asap
Problem 2 In the given RC circuit, a capacitor is connected to a resistor in series and is getting charged after closing the Switch. The time constant of the circuit is 10 (S). R = 109 (12) C =? (F) O A- Calculate the capacitance of the capacitor. B- How much time does it take for the capacitor to become fully (about 99%) charged? C- If we close the Switch and the capacitor starts getting charged, what...
A circuit is constructed with four resistors, one capacitor, one battery and a switch as shown. T...
A circuit is constructed with four resistors, one capacitor, one battery and a switch as shown. The values for the resistors are: R -R2°41 Ω, R3-110 Ω and R4-84Ω, The capacitance is C-70 uF and the battery voltage is V-24 V R. R, "The switch has been open for a long time when at time t-0, the switch is closed. What is (0), the magnitude of the current through the resistor R1 just after the switch is closed? You currently...
(a) A capacitor of capacitance 220 μF is connected in series with a 150 kΩ resistor, a switch and an ammeter. A d.c. power supply of negligible internal resistance is connected to the circuit as show...
(a) A capacitor of capacitance 220 μF is connected in series with a 150 kΩ resistor, a switch and an ammeter. A d.c. power supply of negligible internal resistance is connected to the circuit as shown below 1 50 kΩ 220HF A stopclock is started and after 10 seconds the switch S is closed Ammeter readings are noted at regular intervals until a time of 80s is shown on the stopclock. The graph below shows how the current in the...
HE In the given RC circuit, a capacitor is connected to a resistor in series and...
HE In the given RC circuit, a capacitor is connected to a resistor in series and is getting charged after closing the Switch. The time constant of the circuit is 10 (s). R = 109 (0) C =? (F) A- Calculate the capacitance of the capacitor. B- How much time does it take for the capacitor to become fully (about 99%) charged? C- If we close the Switch and the capacitor starts getting charged, what is the charge at the...
A circuit is constructed with four resistors, one capacitor, one
battery and a switch as shown. The values for the resistors are:
R1
= R2
= 67 ?, R3
= 96 ? and R4
= 77 ?. The capacitance is C = 48 ?F and the battery voltage is V =
24 V.
Consider the circuit above, with R5
= 67 ? in series with the capacitor. Once again, the switch has
been open for a long time when at...
A circuit is constructed with four resistors, one capacitor, one
battery and a switch as shown. The values for the resistors are: R1
= R2 = 60 Ω, R3 = 49 Ω and R4 = 133 Ω. The capacitance is C = 75 μF
and the battery voltage is V = 24 V.
1)
The switch has been open for a long time when at time t = 0, the
switch is closed. What is I1(0), the magnitude of the...
A circuit is constructed with four resistors, one capacitor, one
battery and a switch as shown. The values for the resistors are:
R1 = R2 = 34 ?, R3 = 114 ? and
R4 = 145 ?. The capacitance is C = 46 ?F and the battery
voltage is V = 12 V. The positive terminal of the battery is
indicated with a + sign.
1) The switch has been open for a long time when at time t =...
Consider the RC circuit in the figure. The switch has been open for a long time and is closed at t=0s. The capacitor initially uncharged. (a) Immediately after the switch is closed, what is value of the current through each resistor? (b) After a long time has elapsed and the capacitor is fully charged, what is the value of the current through each resistor and the charge on the capacitor?
A circuit is constructed with four resistors, one capacitor, one
battery and a switch as shown. The values for the resistors are:
R1 = R2 = 56 Ω, R3 = 45 Ω and
R4 = 91 Ω. The capacitance is C = 44 μF and the battery
voltage is V = 24 V.4)Consider the circuit above, with R5 = 81 Ω in series
with the capacitor. Once again, the switch has been open for a long
time when at time...
A circuit is constructed with four resistors, one capacitor, one battery and a switch as shown. The values for the resistors are: R1 = R2 = 48 Q, R3 = 117 and R4 = 127 . The capacitance is C = 56 uF and the battery voltage is V = 24 V. 1) The switch has been open for a long time when at time t = 0, the switch is closed. What is 110), the magnitude of the current...
please answer asap
Problem 2 In the given RC circuit, a capacitor is connected to a resistor in series and is getting charged after closing the Switch. The time constant of the circuit is 10 (S). R = 109 (12) C =? (F) O A- Calculate the capacitance of the capacitor. B- How much time does it take for the capacitor to become fully (about 99%) charged? C- If we close the Switch and the capacitor starts getting charged, what...
A circuit is constructed with four resistors, one capacitor, one battery and a switch as shown. The values for the resistors are: R -R2°41 Ω, R3-110 Ω and R4-84Ω, The capacitance is C-70 uF and the battery voltage is V-24 V R. R, "The switch has been open for a long time when at time t-0, the switch is closed. What is (0), the magnitude of the current through the resistor R1 just after the switch is closed? You currently...
(a) A capacitor of capacitance 220 μF is connected in series with a 150 kΩ resistor, a switch and an ammeter. A d.c. power supply of negligible internal resistance is connected to the circuit as shown below 1 50 kΩ 220HF A stopclock is started and after 10 seconds the switch S is closed Ammeter readings are noted at regular intervals until a time of 80s is shown on the stopclock. The graph below shows how the current in the...
HE In the given RC circuit, a capacitor is connected to a resistor in series and is getting charged after closing the Switch. The time constant of the circuit is 10 (s). R = 109 (0) C =? (F) A- Calculate the capacitance of the capacitor. B- How much time does it take for the capacitor to become fully (about 99%) charged? C- If we close the Switch and the capacitor starts getting charged, what is the charge at the...
