Consider the structure and applied actions shown in the adjoining figure. The frame is subjected to...
Consider the structure and applied actions shown in the adjoining figure The frame is subjected to...
Consider the structure and applied actions shown in the adjoining figure The frame is subjected to a uniformly distributed load on CD, a change in temperature in AB and support settlement at D. Use the dimensions and load values in the table below. Analyse the structure for all actions acting applied simultaneously and determine the reactions, member forces and displacement required in the table below. Enter your answers in the space provided. Dimensions 4 m 0.275lm 0.00001 Applied actions: DY...

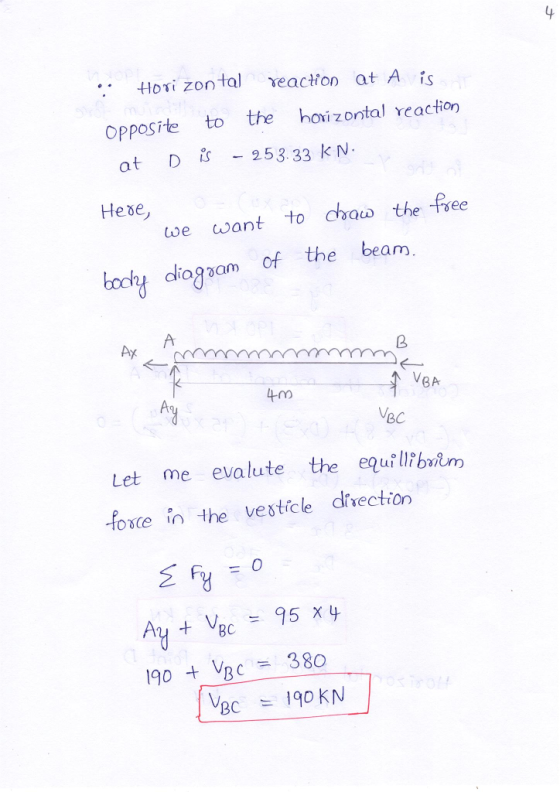

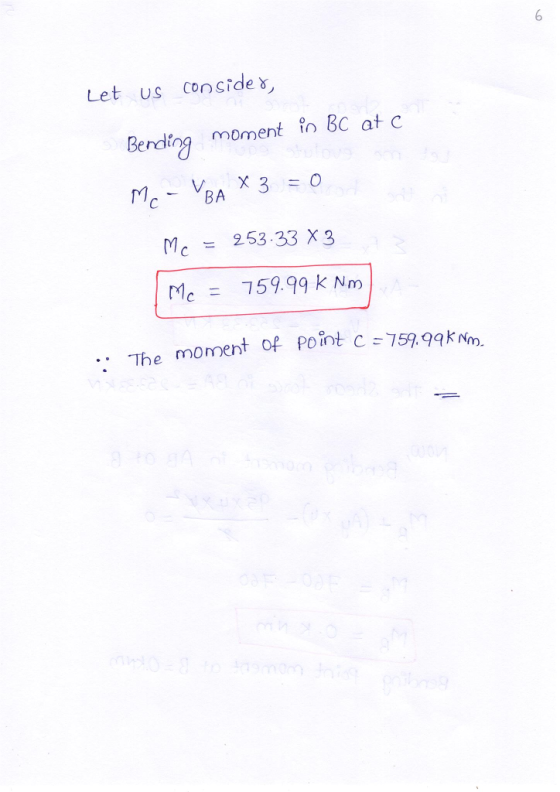

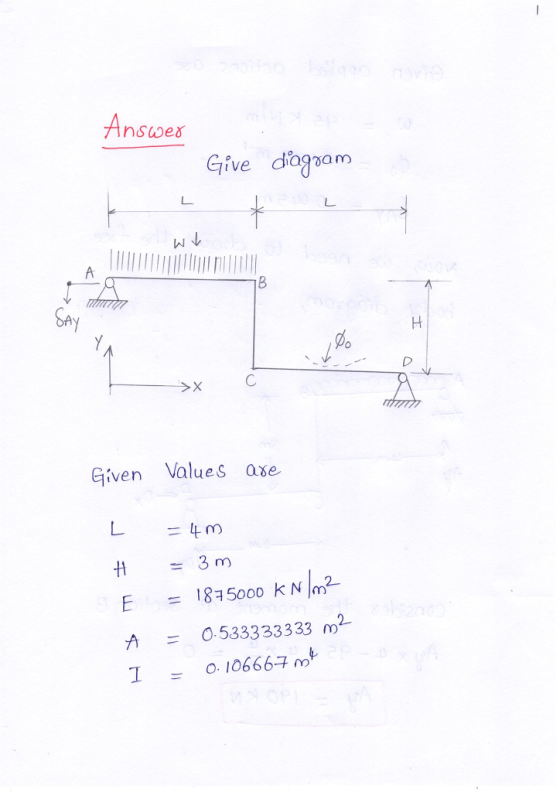

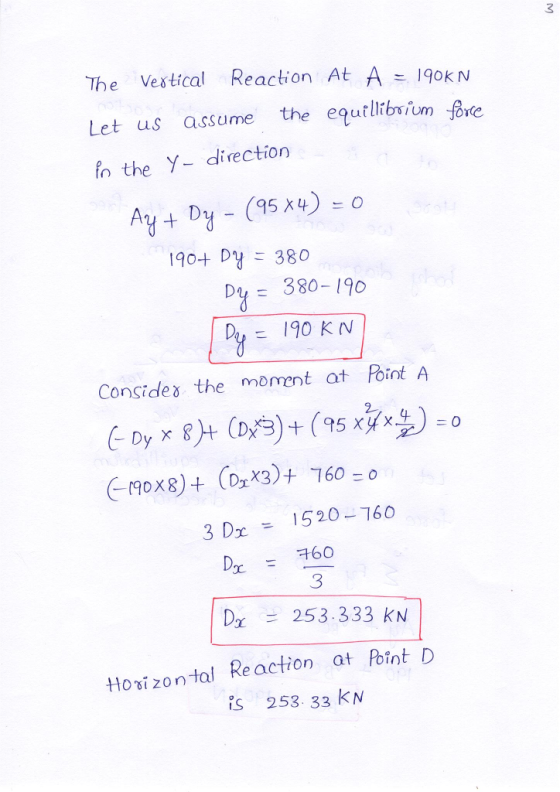

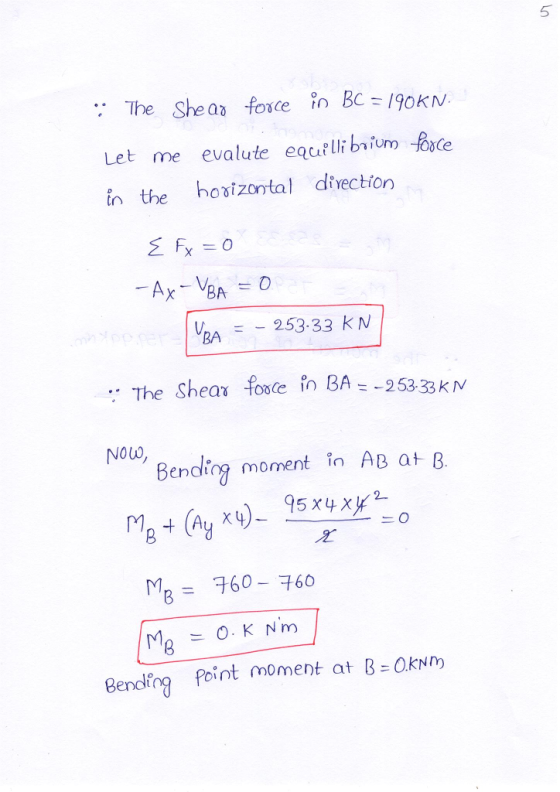

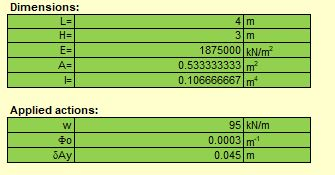

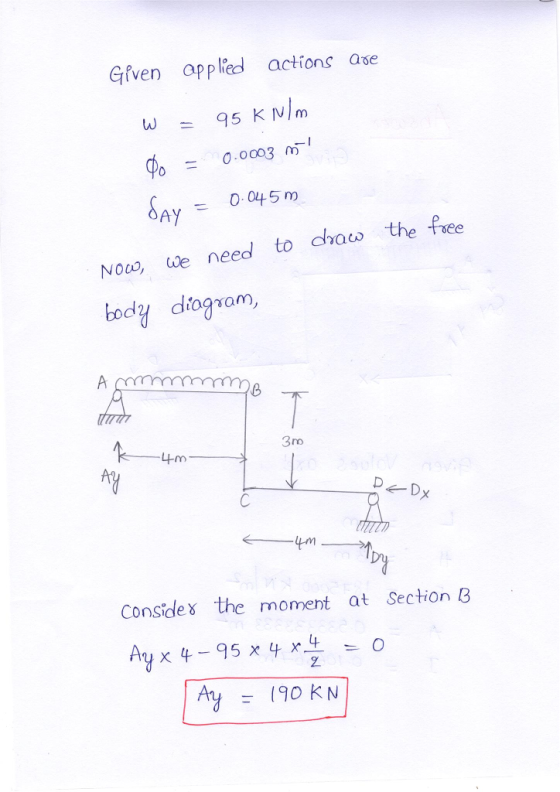

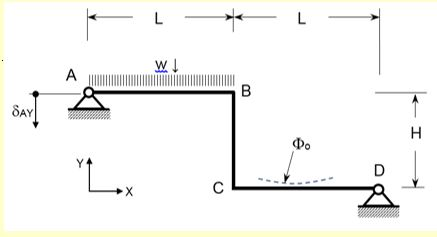

A) Consider the frame in the adjoining figure, which is subjected to the following actions: Case...
A) Consider the frame in the adjoining figure, which is subjected to the following actions: Case 1) Distributed load acting on member BC only Case 2) Initial curvature I member CD only Case 3) Support settlement at point D only Determine the horizontal displacement at point B for each of the above cases. B) Consider load case 4 below where all actions act simultaneously Case 4) All actions combined = Cases 1 +2+3 Determine for case 4 the support reactions,...
Consider the frame and loading shown in the adjoining figure. Use the dimensions and load values...
Consider the frame and loading shown in the adjoining figure.
Use the dimensions and load values in the table below. Analyse the
frame and determine the reactions and internal actions required in
the table below. Enter your answers in the space provided.
Dimensions:
h = 3.8m
a = 2.5m
b = 4.8m
c = 1.8m
w = 20kn/m
Consider the frame and loading shown in the adjoining figure. Use the dimensions and load values in the table below. Analyse the...
Consider the frame and loading shown in the adjoining figure Use the dimensions and load values...
Consider the frame and loading shown in the adjoining figure Use the dimensions and load values in the table below Analyse the frame and determine the reactions and internal actions required in the table below. Enter your answers in the space provided. Dimensions: 4.2 m Loadin 20 kN/m Results Provide Answer for the followings to an accuracy of 2.5% Absolute Value Unit Direction Reactions Member Forces Shear force in member CE Vce Maximum moment in member BC Mmax Location of...
Consider the frame and loading shown in the adjoining figure. Use the dimensions and load values...
Consider the frame and loading shown in the adjoining figure. Use the dimensions and load values in the table below. Analyse the frame and determine the reactions and internal actions required in the table below. Enter your answers in the space provided. tab- 000000000000000000000UI C Dimensions: 3.3 m 2.5 m 4 m 22m c Loading: w 20 kN/m ] Results: Provide Answer for the followings to an accuracy of 2.5% Absolute Value Unit Direction Reactions Dy Member Forces Shear force...
Consider the pin-jointed truss and applied forces shown in the adjoining figure. Consider the pin-jointed truss...
Consider the pin-jointed truss and applied forces shown in the
adjoining figure.
Consider the pin-jointed truss and applied forces shown in the adjoining figure Use the dimensions and load values in the table below Analyse the truss and determine the reactions and member forces required in the table below Enter your answers in the space provided Dimensions Applied forces 81.2 kN 125 kN Results Provide Answer for the followings to an accuracy of 2.5% Absolute Value Unit Direction Reactions Member...
please answer all the questions P A Consider the pin-jointed truss and applied forces shown in...
please answer all the questions
P A Consider the pin-jointed truss and applied forces shown in the adjoining figure Use the dimensions and load values in the table below. Analyse the truss and determine the reactions and member forces required in the table below Enter your answers in the space provided. Dimensions: Applied forces: 81.2 kN 112.5kN 5.5m 6.1 m Results: Provide Answer for the followings to an accuracy of 2.5% Absolute Value Unit Direction Reactions Hx- IkN Gx- Member...
Use the Moment Distribution Method to analyse the frame when subjected to the loading shown. Dimensions and load values...
Use the Moment Distribution Method to analyse the frame when subjected to the loading shown. Dimensions and load values, which depend on your student ID, are given in the table below Determine the member forces and support reactions required in the table below Enter your answers in the space provided. Dimensions 5.4 m 2.6 m 6.8 m 3.4 m 280 kN lied actions 285 kN 13 kN/m Provide Answer for the followings to an accuracy of 2.5% sult required Absol...
AB length is 4000mm AD length is 3000mm A pin jointed frame ABCD is supported by...
AB length is 4000mm
AD length is 3000mm
A pin jointed frame ABCD is supported by a pinned support at A, a roller at B and is subjected to the loading indicated in Figure Q1. All members have circular cross-section and all are made of steel materials with same cross-section. Determine the support reactions at A and B Determine all the member forces Find out the horizontal displacement at point C using a table template as shown in Table Q1....
QUESTION 1 In the frame shown below dimension His 7m, y is 3m, L is 7m,...
QUESTION 1 In the frame shown below dimension His 7m, y is 3m, L is 7m, x is 4m, I is 4m, h is 3m. External loads are: the horizontal point load P of 2kN is applied at B, the clockwise moment M of 5kNm is applied at D, the vertical uniformly distributed load w of 1kN/m is applied on bar FJ. Calculate reactions of supports. Note that this frame has two internal pins; at Cand at F. What is...
Consider the structure and applied actions shown in the adjoining figure The frame is subjected to a uniformly distributed load on CD, a change in temperature in AB and support settlement at D. Use the dimensions and load values in the table below. Analyse the structure for all actions acting applied simultaneously and determine the reactions, member forces and displacement required in the table below. Enter your answers in the space provided. Dimensions 4 m 0.275lm 0.00001 Applied actions: DY...
A) Consider the frame in the adjoining figure, which is subjected to the following actions: Case 1) Distributed load acting on member BC only Case 2) Initial curvature I member CD only Case 3) Support settlement at point D only Determine the horizontal displacement at point B for each of the above cases. B) Consider load case 4 below where all actions act simultaneously Case 4) All actions combined = Cases 1 +2+3 Determine for case 4 the support reactions,...
Consider the frame and loading shown in the adjoining figure.
Use the dimensions and load values in the table below. Analyse the
frame and determine the reactions and internal actions required in
the table below. Enter your answers in the space provided.
Dimensions:
h = 3.8m
a = 2.5m
b = 4.8m
c = 1.8m
w = 20kn/m
Consider the frame and loading shown in the adjoining figure. Use the dimensions and load values in the table below. Analyse the...
Consider the frame and loading shown in the adjoining figure Use the dimensions and load values in the table below Analyse the frame and determine the reactions and internal actions required in the table below. Enter your answers in the space provided. Dimensions: 4.2 m Loadin 20 kN/m Results Provide Answer for the followings to an accuracy of 2.5% Absolute Value Unit Direction Reactions Member Forces Shear force in member CE Vce Maximum moment in member BC Mmax Location of...
Consider the frame and loading shown in the adjoining figure. Use the dimensions and load values in the table below. Analyse the frame and determine the reactions and internal actions required in the table below. Enter your answers in the space provided. tab- 000000000000000000000UI C Dimensions: 3.3 m 2.5 m 4 m 22m c Loading: w 20 kN/m ] Results: Provide Answer for the followings to an accuracy of 2.5% Absolute Value Unit Direction Reactions Dy Member Forces Shear force...
Consider the pin-jointed truss and applied forces shown in the
adjoining figure.
Consider the pin-jointed truss and applied forces shown in the adjoining figure Use the dimensions and load values in the table below Analyse the truss and determine the reactions and member forces required in the table below Enter your answers in the space provided Dimensions Applied forces 81.2 kN 125 kN Results Provide Answer for the followings to an accuracy of 2.5% Absolute Value Unit Direction Reactions Member...
please answer all the questions
P A Consider the pin-jointed truss and applied forces shown in the adjoining figure Use the dimensions and load values in the table below. Analyse the truss and determine the reactions and member forces required in the table below Enter your answers in the space provided. Dimensions: Applied forces: 81.2 kN 112.5kN 5.5m 6.1 m Results: Provide Answer for the followings to an accuracy of 2.5% Absolute Value Unit Direction Reactions Hx- IkN Gx- Member...
Use the Moment Distribution Method to analyse the frame when subjected to the loading shown. Dimensions and load values, which depend on your student ID, are given in the table below Determine the member forces and support reactions required in the table below Enter your answers in the space provided. Dimensions 5.4 m 2.6 m 6.8 m 3.4 m 280 kN lied actions 285 kN 13 kN/m Provide Answer for the followings to an accuracy of 2.5% sult required Absol...
AB length is 4000mm
AD length is 3000mm
A pin jointed frame ABCD is supported by a pinned support at A, a roller at B and is subjected to the loading indicated in Figure Q1. All members have circular cross-section and all are made of steel materials with same cross-section. Determine the support reactions at A and B Determine all the member forces Find out the horizontal displacement at point C using a table template as shown in Table Q1....
QUESTION 1 In the frame shown below dimension His 7m, y is 3m, L is 7m, x is 4m, I is 4m, h is 3m. External loads are: the horizontal point load P of 2kN is applied at B, the clockwise moment M of 5kNm is applied at D, the vertical uniformly distributed load w of 1kN/m is applied on bar FJ. Calculate reactions of supports. Note that this frame has two internal pins; at Cand at F. What is...
