Consider the frame and loading shown in the adjoining figure. Use the dimensions and load values...

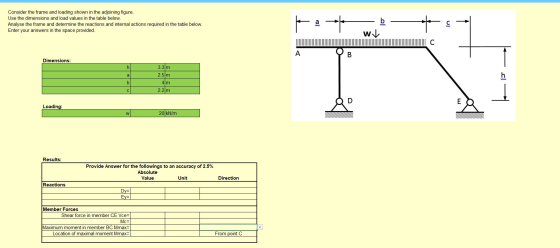

Consider the frame and loading shown in the adjoining figure Use the dimensions and load values in the table below Analyse the frame and determine the reactions and internal actions required in the table below. Enter your answers in the space provided. Dimensions: 4.2 m Loadin 20 kN/m Results Provide Answer for the followings to an accuracy of 2.5% Absolute Value Unit Direction Reactions Member Forces Shear force in member CE Vce Maximum moment in member BC Mmax Location of...
Consider the frame and loading shown in the adjoining figure.
Use the dimensions and load values in the table below. Analyse the
frame and determine the reactions and internal actions required in
the table below. Enter your answers in the space provided.
Dimensions:
h = 3.8m
a = 2.5m
b = 4.8m
c = 1.8m
w = 20kn/m

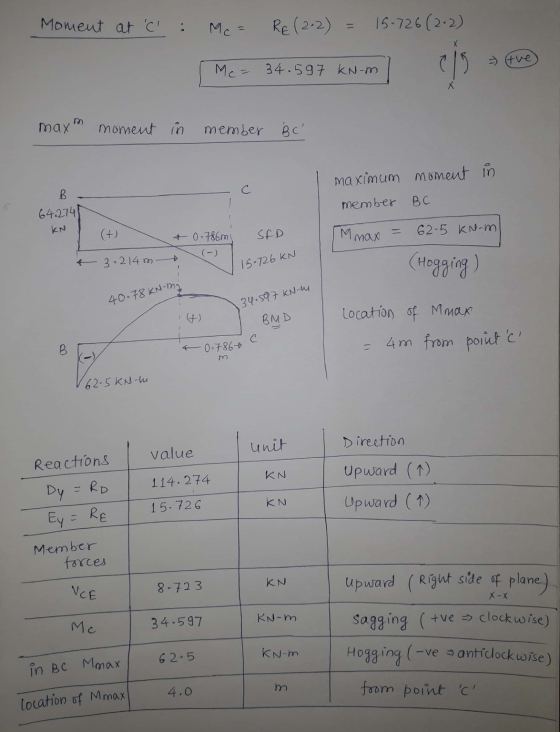

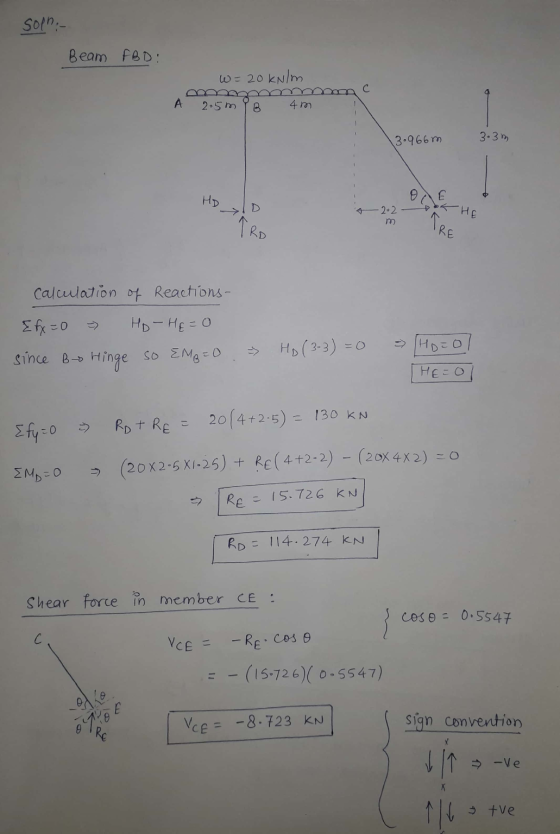

Consider the frame and loading shown in the adjoining figure. Use the dimensions and load values in the table below. Analyse the...
Consider the structure and applied actions shown in the adjoining figure The frame is subjected to a uniformly distributed load on CD, a change in temperature in AB and support settlement at D. Use the dimensions and load values in the table below. Analyse the structure for all actions acting applied simultaneously and determine the reactions, member forces and displacement required in the table below. Enter your answers in the space provided. Dimensions 4 m 0.275lm 0.00001 Applied actions: DY...
Use the Moment Distribution Method to analyse the frame when subjected to the loading shown. Dimensions and load values, which depend on your student ID, are given in the table below Determine the member forces and support reactions required in the table below Enter your answers in the space provided. Dimensions 5.4 m 2.6 m 6.8 m 3.4 m 280 kN lied actions 285 kN 13 kN/m Provide Answer for the followings to an accuracy of 2.5% sult required Absol...
A) Consider the frame in the adjoining figure, which is subjected to the following actions: Case 1) Distributed load acting on member BC only Case 2) Initial curvature I member CD only Case 3) Support settlement at point D only Determine the horizontal displacement at point B for each of the above cases. B) Consider load case 4 below where all actions act simultaneously Case 4) All actions combined = Cases 1 +2+3 Determine for case 4 the support reactions,...
Consider the structure and applied actions shown in the adjoining figure. The frame is subjected to a uniformly distributed load on AB, an initial curvature in CD and support settlement at A Use the dimensions and load values in the table below. Analyse the structure for all actions applied simultaneously and determine the reactions, member forces and displacement required in the table below Enter your answers in the space provided.
Consider the pin-jointed truss and applied forces shown in the
adjoining figure.
Consider the pin-jointed truss and applied forces shown in the adjoining figure Use the dimensions and load values in the table below Analyse the truss and determine the reactions and member forces required in the table below Enter your answers in the space provided Dimensions Applied forces 81.2 kN 125 kN Results Provide Answer for the followings to an accuracy of 2.5% Absolute Value Unit Direction Reactions Member...
please answer all the questions
P A Consider the pin-jointed truss and applied forces shown in the adjoining figure Use the dimensions and load values in the table below. Analyse the truss and determine the reactions and member forces required in the table below Enter your answers in the space provided. Dimensions: Applied forces: 81.2 kN 112.5kN 5.5m 6.1 m Results: Provide Answer for the followings to an accuracy of 2.5% Absolute Value Unit Direction Reactions Hx- IkN Gx- Member...
Problem 4: The frame with cross-section given supports the distributed load as shown. Answer the following: A. Support reactions at A and the force in member BC B. Find the Shear and moment equations for AD section [V(x) and M(x)] and plot the shear and moment diagrams. C. State of stress at D D. State of stress at E 4 kN/m D 20 mm 60 mm 20 mm BA E 5 m 50 mm |-1.5 m -1.5 m --- 3...
CE 340-F/2016-EXAM 4. FRAME-SOLUTION BY MOMENT-DISTRIBUTION METHOD w-3.6 kips 21 to 20 Use the Moment-Distribution Method to analyze the braced-frame shown above (No Side-way). Note: Joints F and E are fixed; joints A and D are pin-connected; No loads on member DC. (Hint: Start at joint A) -Clearly show computations of stiffness values, K, and DFs. -Clearly show computations of FEMs. -Present a clear and organized table of iterations to follow your computation. A suggested table is given on the...
