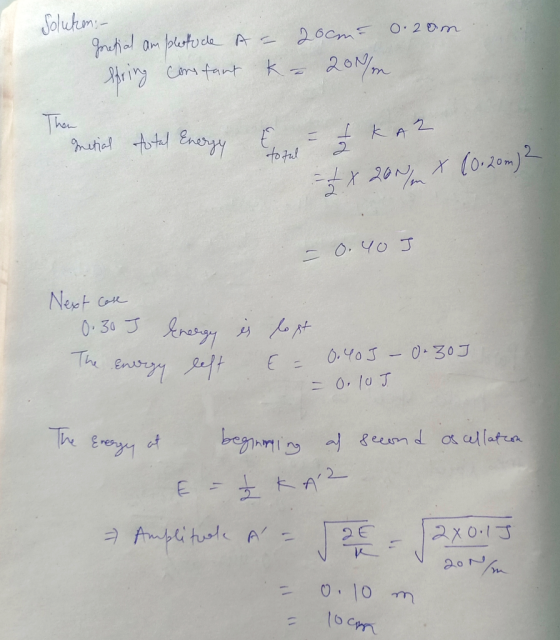

A mass-spring system rests on a rough table. Its initial amplitude is 20 cm. The spring...
A mass-spring system rests on a rough table. Its initial amplitude is 20 cm. The spring constant is 20 N/m and the mass is 2.0 kg. If 0.30 J of energy is lost to friction during the first oscillation, what is the amplitude at the beginning of the second oscillation?
Homework Answers
Add Answer to:
A mass-spring system rests on a rough table. Its initial
amplitude is 20 cm. The spring...
A block with mass M = 6.0 kg rests on a frictionless table and is attached by a horizontal spring (k = 130 N/m) to a all.
A block with mass M = 6.0 kg rests on a frictionless table and is attached by a horizontal spring (k = 130 N/m) to a all. A second block, of mass m = 1.25 kg, rests on top of M. The coefficient of static friction between the two blocks is 0.30. What is the maximum possible amplitude of oscillation such that m will not slip off M?
A 0.40-kg mass is attached to a spring with a force constant of k = 207...
A 0.40-kg mass is attached to a spring with
a force constant of k = 207 N/m, and the mass–spring
system is set into oscillation with an amplitude of A =
2.0 cm. Determine the following.
(a) mechanical energy of the system
_____ J
(b) maximum speed of the oscillating mass
_____ m/s
(c) magnitude of the maximum acceleration of the oscillating
mass
_____ m/s2
A 0.40-kg mass is attached to a spring with a force constant of k =...
an object-spring system oscillates with an amplitude of 6cm on a horizontal, frictionless table. mass of...
an object-spring system oscillates with an amplitude of 6cm on a horizontal, frictionless table. mass of the object js 0.4kg annd the spring constant K=200/N/m a) find the mechanical energy of the system b) find the maximum speed of the mass during oscillation. Vmax=? c) the maximum acceleration if the mass: Amax=? d) the period of the oscillation: T=
A horizontal spring of spring constant 100 N/m is attached to a wall, and a block (A) of mass 5 kg. The block rests on a frictionless table.
3. A horizontal spring of spring constant 100 N/m is attached to a wall, and a block (A) of mass 5 kg. The block rests on a frictionless table. It oscillates with an amplitude of 10 cm. On top of the block rests a second block (B), held in place only by friction. (A) If block B slips, where is it most likely to do so: near the center of the spring's travel, or near the extremes? Why? (B) How...
LUumeu. wwe. 1. Mass-spring system [20] A 0.50 kg mass is connected to a 5.0 N/m...
LUumeu. wwe. 1. Mass-spring system [20] A 0.50 kg mass is connected to a 5.0 N/m spring. From the rest position (x = 0), it is set into motion with an initial speed of +2.0 m/s. (a) What is the amplitude of the subsequent oscillatory motion? [5] (b) How long will a complete oscillation take? [5] (c) What will be the position and the velocity of the mass at t=0.30 s? [10]
A mass m = 16 kg rests on a frictionless table and accelerated by a spring...
A mass m = 16 kg rests on a frictionless table and accelerated by a spring with spring constant k = 4431 N/m. The floor is frictionless except for a rough patch. For this rough path, the coefficient of friction is μk = 0.52. The mass leaves the spring at a speed v = 3.3 m/s. 1)How much work is done by the spring as it accelerates the mass?J 2)How far was the spring stretched from its unstreched length?m 3)The...
A mass of 1.32 kg is connected to a spring of spring constant 8.81 N/m ....
A mass of 1.32 kg is connected to a spring of spring constant 8.81 N/m . An oscillation is started by pulling the mass to the right to amplitude 0.582m before release and the oscillator moves in air. The oscillation decays to 18.2% of the original amplitude in 58.2 seconds. the damping constant of the oscillation is 7.73*10^-2 kg/s total energy has the system lost in this time due to air damping = 1.44 j the amplitude of the oscillation...
3.) An oscillating block-spring system has a mechanical energy of 1 J, an amplitude of 10...
3.) An oscillating block-spring system has a mechanical energy of 1 J, an amplitude of 10 cm and a maximum speed of 1.2 m/s. Find (a) the spring constant (b) the mass of the block and (c) the frequency of oscillation. [200 N/m; 1.39 kg; f#1.91 Hz
A mass-spring system oscillates with an amplitude of 3.60 cm. If the spring constant is 276...
A mass-spring system oscillates with an amplitude of 3.60 cm. If the spring constant is 276 N/m and the mass is 499 g, determine the mechanical energy of the system. Tries 0/20 Determine the maximum speed of the object. Tries 0/20 Determine the maximum acceleration. Tries 0/20
A 20 g mass-spring system is suspended vertically. If 20 g is added, it stretches 5...
A 20 g mass-spring system is suspended vertically. If 20 g is
added, it stretches 5 cm. (Assume the mass of the spring is
negligible)
A) The spring constant is
________ N/m.
From equilibrium position give mass-spring a speed of
1.2 m/s.
B1) Period of oscillation is ______ s
B2) Maximum speed of the the spring-mass system is _______
m/s.
B3) The equation of motion of the oscillating spring is
_______.
B4) The maximum kinetic energy of the spring is...
A 0.40-kg mass is attached to a spring with
a force constant of k = 207 N/m, and the mass–spring
system is set into oscillation with an amplitude of A =
2.0 cm. Determine the following.
(a) mechanical energy of the system
_____ J
(b) maximum speed of the oscillating mass
_____ m/s
(c) magnitude of the maximum acceleration of the oscillating
mass
_____ m/s2
A 0.40-kg mass is attached to a spring with a force constant of k =...
LUumeu. wwe. 1. Mass-spring system [20] A 0.50 kg mass is connected to a 5.0 N/m spring. From the rest position (x = 0), it is set into motion with an initial speed of +2.0 m/s. (a) What is the amplitude of the subsequent oscillatory motion? [5] (b) How long will a complete oscillation take? [5] (c) What will be the position and the velocity of the mass at t=0.30 s? [10]
3.) An oscillating block-spring system has a mechanical energy of 1 J, an amplitude of 10 cm and a maximum speed of 1.2 m/s. Find (a) the spring constant (b) the mass of the block and (c) the frequency of oscillation. [200 N/m; 1.39 kg; f#1.91 Hz
A 20 g mass-spring system is suspended vertically. If 20 g is
added, it stretches 5 cm. (Assume the mass of the spring is
negligible)
A) The spring constant is
________ N/m.
From equilibrium position give mass-spring a speed of
1.2 m/s.
B1) Period of oscillation is ______ s
B2) Maximum speed of the the spring-mass system is _______
m/s.
B3) The equation of motion of the oscillating spring is
_______.
B4) The maximum kinetic energy of the spring is...
