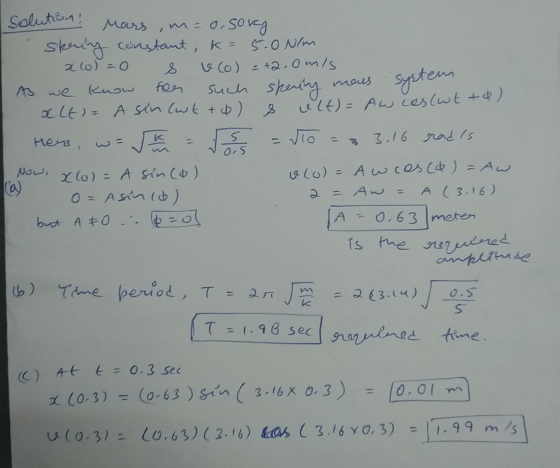

![LUumeu. wwe. 1. Mass-spring system [20] A 0.50 kg mass is connected to a 5.0 N/m spring. From the rest position (x = 0), it i](http://img.homeworklib.com/questions/9215aba0-7876-11eb-b160-eb5db542bb8d.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
LUumeu. wwe. 1. Mass-spring system [20] A 0.50 kg mass is connected to a 5.0 N/m...
* Amass of 2.0 kg is connected to a spring with a spring constant of 5.0...
* Amass of 2.0 kg is connected to a spring with a spring constant of 5.0 N/m. The mass is oscillating on a horizontal, frictionless surface. At time t = 0, the mass is 0.30 m from the equilibrium position and has zero velocity. (a) What is the amplitude? (b) What is the maximum speed of the mass? (c) What is the maximum acceleration of the mass? (d) Write an equation that describes the displacement of the mass from the...
A 0.33-kg mass is attached to the end of a spring and set into oscillation on...
A 0.33-kg mass is attached to the end of a spring and set into
oscillation on a horizontal frictionless surface by releasing it
from a compressed position. The record of time is started when the
oscillating mass passes through the equilibrium position and the
position of the mass at any time is shown in the drawing.
https://www.webassign.net/webassignalgphys1/16-p-027.gif
Coordinates at (0,0), (2.0,.10), (3,0), (6.0,-.10)
Determine the following.
(a) amplitude A of the motion
.1 m
(b) angular frequency ω
How is...
A mass of 1.32 kg is connected to a spring of spring constant 8.81 N/m ....
A mass of 1.32 kg is connected to a spring of spring constant 8.81 N/m . An oscillation is started by pulling the mass to the right to amplitude 0.582m before release and the oscillator moves in air. The oscillation decays to 18.2% of the original amplitude in 58.2 seconds. the damping constant of the oscillation is 7.73*10^-2 kg/s total energy has the system lost in this time due to air damping = 1.44 j the amplitude of the oscillation...
A 0.81-kg mass is attached to the end of a spring and set into oscillation on...
A 0.81-kg mass is attached to the end of a spring and set into oscillation on a horizontal frictionless surface by releasing it from a compressed position. The record of time is started when the oscillating mass passes through the equilibrium position and the position of the mass at any time is shown in the drawing, x (m) 0.10 --- 04 16.0 -0.10 - - - - - - Determine the following. (a) amplitude A of the motion (b) angular...
A mass-spring system rests on a rough table. Its initial amplitude is 20 cm. The spring...
A mass-spring system rests on a rough table. Its initial amplitude is 20 cm. The spring constant is 20 N/m and the mass is 2.0 kg. If 0.30 J of energy is lost to friction during the first oscillation, what is the amplitude at the beginning of the second oscillation?
A wooden block (m = 0.640 kg) is connected to a spring and undergoes simple harmonic...
A wooden block (m = 0.640 kg) is connected to a spring and undergoes simple harmonic motion with an amplitude of oscillation of 0.055 m. The frequency of the motion is 11.50 Hz. (a) What is the spring constant? N/m (b) What is the maximum speed of the block? m/s (c) What is the speed of the block when it is 0.023 m away from the equilibrium position? m/s
5. A 2 kg mass connected to a spring with spring constant k = 10 N/m...
5. A 2 kg mass connected to a spring with spring constant k = 10 N/m oscillates in simple harmonic motion with an amplitude of A = 0.1 m. What is the kinetic energy of the mass when its position is at x = 0.05 m?
A horizontal mass-spring system consists of a block (m=1.5 kg) on a frictionless to connected to...
A horizontal mass-spring system consists of a block (m=1.5 kg) on a frictionless to connected to a spring (k = 750 N/m). The system is initially at rest and is in equilibrium MI Second DIOCK (M=1.5 kg) approaches with a speed of 3.5 m/s and undergoes all inelastic collision with the first block (i.e.. they stick together after the collision). (a) What is the amplitude of the resulting simple harmonic motion (in cm)? (b) What is the angular frequency (w)...
???? Suppose that the mass in a mass-spring-dashpot system with m = = kg, c= 1...
????
Suppose that the mass in a mass-spring-dashpot system with m = = kg, c= 1 N, and k = 50 N/m. The mass is set into motion with initial position (0) 1 and initial velocity x' = -5. Find the position of the mass, x(t) and graph the position function.
An oscillator consists of a block of mass 0.524 kg connected to a spring. When set...
An oscillator consists of a block of mass 0.524 kg connected to a spring. When set into oscillation with amplitude 37 cm, the oscillator repeats its motion every 0.701 s. Find the (a) period, (b) frequency, (c) angular frequency, (d) spring constant, (e) maximum speed, and (f) magnitude of the maximum force on the block from the spring.
* Amass of 2.0 kg is connected to a spring with a spring constant of 5.0 N/m. The mass is oscillating on a horizontal, frictionless surface. At time t = 0, the mass is 0.30 m from the equilibrium position and has zero velocity. (a) What is the amplitude? (b) What is the maximum speed of the mass? (c) What is the maximum acceleration of the mass? (d) Write an equation that describes the displacement of the mass from the...
A 0.81-kg mass is attached to the end of a spring and set into oscillation on a horizontal frictionless surface by releasing it from a compressed position. The record of time is started when the oscillating mass passes through the equilibrium position and the position of the mass at any time is shown in the drawing, x (m) 0.10 --- 04 16.0 -0.10 - - - - - - Determine the following. (a) amplitude A of the motion (b) angular...
A wooden block (m = 0.640 kg) is connected to a spring and undergoes simple harmonic motion with an amplitude of oscillation of 0.055 m. The frequency of the motion is 11.50 Hz. (a) What is the spring constant? N/m (b) What is the maximum speed of the block? m/s (c) What is the speed of the block when it is 0.023 m away from the equilibrium position? m/s
A horizontal mass-spring system consists of a block (m=1.5 kg) on a frictionless to connected to a spring (k = 750 N/m). The system is initially at rest and is in equilibrium MI Second DIOCK (M=1.5 kg) approaches with a speed of 3.5 m/s and undergoes all inelastic collision with the first block (i.e.. they stick together after the collision). (a) What is the amplitude of the resulting simple harmonic motion (in cm)? (b) What is the angular frequency (w)...
????
Suppose that the mass in a mass-spring-dashpot system with m = = kg, c= 1 N, and k = 50 N/m. The mass is set into motion with initial position (0) 1 and initial velocity x' = -5. Find the position of the mass, x(t) and graph the position function.
