An oscillator consists of a block of mass 0.524 kg connected to a spring. When set...

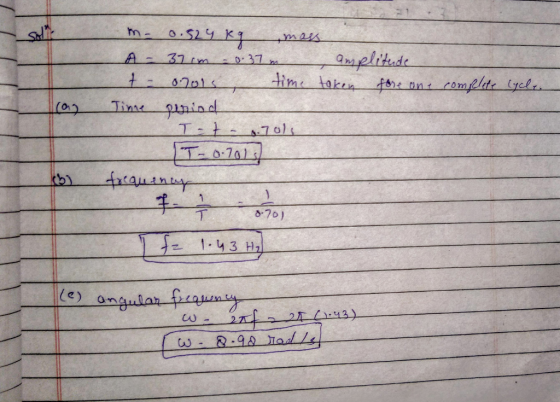

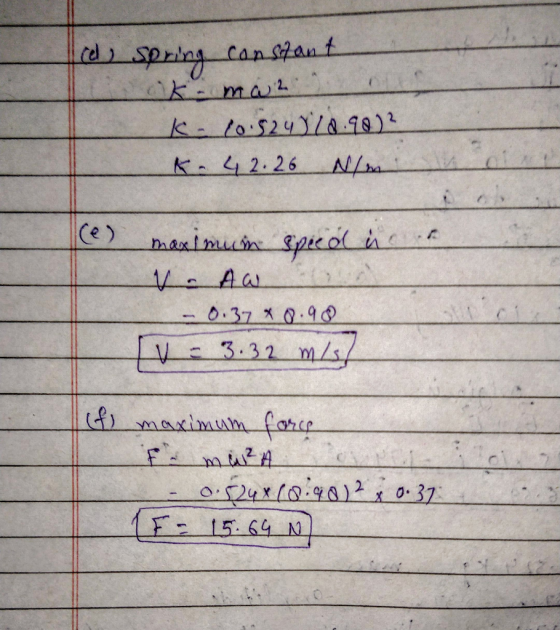

An oscillator consists of a block of mass 0.524 kg connected to a spring. When set into oscillation with amplitude 37 cm, the oscillator repeats its motion every 0.701 s. Find the (a) period, (b) frequency, (c) angular frequency, (d) spring constant, (e) maximum speed, and (f) magnitude of the maximum force on the block from the spring.
Homework Answers
Add Answer to:
An oscillator consists of a block of mass 0.524 kg connected to
a spring. When set...
An oscillator consists of a block of mass 0.713 kg connected to a spring. When set...
An oscillator consists of a block of mass 0.713 kg connected to a spring. When set into oscillation with amplitude 44 cm, the oscillator repeats its motion every 0.627 s. Find the (a) period, (b) frequency, (c) angular frequency, (d) spring constant, (e) maximum speed, and (f) magnitude of the maximum force on the block from the spring.
An oscillator consists of a block of mass 420 g connected to a spring. When set...
An oscillator consists of a block of mass 420 g connected to a spring. When set into oscillation with amplitude 26 cm, the oscillator repeats its motion every 0.41 s. Find the (a) period, (b) frequency (in Hz), (c) angular frequency, (d) spring constant, (e) maximum speed, and (f) magnitude of the maximum force on the block from the spring.
A horizontal mass-spring system consists of a block (m=1.5 kg) on a frictionless to connected to...
A horizontal mass-spring system consists of a block (m=1.5 kg) on a frictionless to connected to a spring (k = 750 N/m). The system is initially at rest and is in equilibrium MI Second DIOCK (M=1.5 kg) approaches with a speed of 3.5 m/s and undergoes all inelastic collision with the first block (i.e.. they stick together after the collision). (a) What is the amplitude of the resulting simple harmonic motion (in cm)? (b) What is the angular frequency (w)...
A block of mass m is 650 g which is tied to a spring whose spring...
A block of mass m is 650 g which is tied to a spring whose spring constant is 62 N/m. The block is pulled a distance x=11 cm from its equilibrium position at x=0 on a frictionless surface and released from rest at t=0 s. What are the angular frequency, the frequency, and the period of the resulting motion? What is the amplitude of the oscillation? What is the maximum speed Vm of the oscillating block, and where is the...
A mass-spring oscillator consists of a 3.45-kg block attached to a spring of spring constant 72.0...
A mass-spring oscillator consists of a 3.45-kg block attached to a spring of spring constant 72.0 N/m. At time t 3.00 s, the position and the velocity of the block are x-0.160 m and v -4.05 m/s What is the amplitude of oscillation? 0.901 m You are correct reviousies r receipt no. is 157-144 What was the position of the block at t-0 Submit An Tries 6/10 Previous Tries swer What was the speed of the block at t 0?
help with 1-3 1) A simple harmonic oscillator consists of a 0.100 kg mass attached to...
help with 1-3
1) A simple harmonic oscillator consists of a 0.100 kg mass attached to a spring whose force constant is 10.0 N/m. The mass is displaced 3.00 cm and released from rest. Calculate (a) the natural frequency fo and period T (b) the total energy , and (c) the maximum speed 2) Allow the motion in problem 1 to take place in a resisting medium. After oscillating for 10 seconds, the maximum amplitude decreases to half the initial...
A simple harmonic oscillator consists of a block attached to a spring, moving back and forth...
A simple harmonic oscillator consists of a block attached to a spring, moving back and forth on a frictionless horizontal surface. Suppose the mass of the box is 5.0 kg. The motion is started by holding the box at .50m from its central position, using a force of 40.0 N. Then the box is let go and allowed to perform simple harmonic motion. What is the amplitude of the motion? What is the spring constant k? What is the maximum...
A harmonic oscillator is made by using a .60 kg frictionless block and an Ideal spring...
A harmonic oscillator is made by using a .60 kg frictionless block and an Ideal spring of unknown force constant. The oscillator is found to have a period of 150s and a max speed of 2 m/s. Find (a) the force constant of the spring and (b) the amplitude of the oscillation.
A simple harmonic oscillator consists of a block attached to a spring, moving back and forth...
A simple harmonic oscillator consists of a block attached to a
spring, moving back and forth on a frictionless horizontal surface.
Suppose the mass of the box is 5.0 kg. The motion is started by
holding the box at 0.50 m from its central position, using a force
of 40.0 N. Then the box is let go and allowed to perform simple
harmonic motion.
(a) What is the amplitude of the motion?
(b) What is the spring constant k?
(c)...
A wooden block (m = 0.640 kg) is connected to a spring and undergoes simple harmonic...
A wooden block (m = 0.640 kg) is connected to a spring and undergoes simple harmonic motion with an amplitude of oscillation of 0.055 m. The frequency of the motion is 11.50 Hz. (a) What is the spring constant? N/m (b) What is the maximum speed of the block? m/s (c) What is the speed of the block when it is 0.023 m away from the equilibrium position? m/s
An oscillator consists of a block of mass 420 g connected to a spring. When set into oscillation with amplitude 26 cm, the oscillator repeats its motion every 0.41 s. Find the (a) period, (b) frequency (in Hz), (c) angular frequency, (d) spring constant, (e) maximum speed, and (f) magnitude of the maximum force on the block from the spring.
A horizontal mass-spring system consists of a block (m=1.5 kg) on a frictionless to connected to a spring (k = 750 N/m). The system is initially at rest and is in equilibrium MI Second DIOCK (M=1.5 kg) approaches with a speed of 3.5 m/s and undergoes all inelastic collision with the first block (i.e.. they stick together after the collision). (a) What is the amplitude of the resulting simple harmonic motion (in cm)? (b) What is the angular frequency (w)...
A mass-spring oscillator consists of a 3.45-kg block attached to a spring of spring constant 72.0 N/m. At time t 3.00 s, the position and the velocity of the block are x-0.160 m and v -4.05 m/s What is the amplitude of oscillation? 0.901 m You are correct reviousies r receipt no. is 157-144 What was the position of the block at t-0 Submit An Tries 6/10 Previous Tries swer What was the speed of the block at t 0?
help with 1-3
1) A simple harmonic oscillator consists of a 0.100 kg mass attached to a spring whose force constant is 10.0 N/m. The mass is displaced 3.00 cm and released from rest. Calculate (a) the natural frequency fo and period T (b) the total energy , and (c) the maximum speed 2) Allow the motion in problem 1 to take place in a resisting medium. After oscillating for 10 seconds, the maximum amplitude decreases to half the initial...
A simple harmonic oscillator consists of a block attached to a
spring, moving back and forth on a frictionless horizontal surface.
Suppose the mass of the box is 5.0 kg. The motion is started by
holding the box at 0.50 m from its central position, using a force
of 40.0 N. Then the box is let go and allowed to perform simple
harmonic motion.
(a) What is the amplitude of the motion?
(b) What is the spring constant k?
(c)...
A wooden block (m = 0.640 kg) is connected to a spring and undergoes simple harmonic motion with an amplitude of oscillation of 0.055 m. The frequency of the motion is 11.50 Hz. (a) What is the spring constant? N/m (b) What is the maximum speed of the block? m/s (c) What is the speed of the block when it is 0.023 m away from the equilibrium position? m/s
