A block of mass m is 650 g which is tied to a spring whose spring...

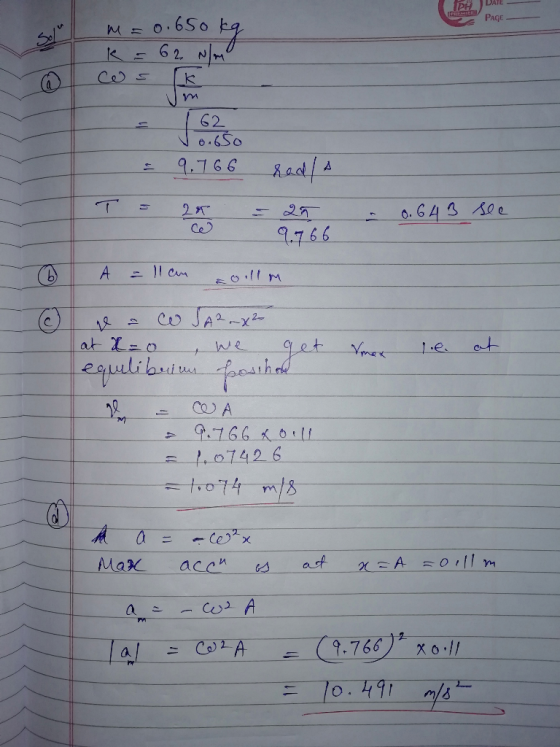

- A block of mass m is 650 g which is tied to a spring whose spring constant is 62 N/m. The block is pulled a distance x=11 cm from its equilibrium position at x=0 on a frictionless surface and released from rest at t=0 s.
- What are the angular frequency, the frequency, and the period of the resulting motion?
- What is the amplitude of the oscillation?
- What is the maximum speed Vm of the oscillating block, and where is the block when it has this speed?
- What is the magnitude Am of the maximum acceleration of the block?
Homework Answers
Add Answer to:
A block of mass m is 650 g which is tied to a spring whose
spring...
A block whose mass m is 0.5 kg is fastened to a spring whose spring constant...
A block whose mass m is 0.5 kg is fastened to a spring whose spring constant is K = 12.5N/m. The block is pulled a distance 0.05 m from its equilibrium position at x = 0 on a frictionless surface and released from rest at t=0. a) Angular frequency? (Include the symbol and unit of measurement ) b) Frequency? (Include the symbol and unit of measurement ) c) Period? (Include the symbol and unit of measurement ) d) Amplitude? (Include...
A block of mass m = 0.672 kg is fastened to an unstrained horizontal spring whose...
A block of mass m = 0.672 kg is fastened to an unstrained horizontal spring whose spring constant is k = 97.0 N/m. The block is given a displacement of +0.162 m, where the + sign indicates that the displacement is along the +x axis, and then released from rest. (a) What is the force (with sign) that the spring exerts on the block just before the block is released? (b) Find the angular frequency of the resulting oscillatory motion....
a block whose mass m is 0.65 kg is fastened to a spring whose spring constant...
a block whose mass m is 0.65 kg is fastened to a spring whose spring constant k =65 n the block is pulled a distance x=11cm from its equilibrium position at x=0 on a frictionless surface and released from rest at t=0. what are the angular, f, t? what is the amplitude? PE?KE?Etotal at t=T/6 Vmax? where the block when it occurs
A block–spring system consists of a spring with constant k=425 N/m attached to a 2.00-kg block...
A block–spring system consists of a spring with constant k=425 N/m attached to a 2.00-kg block on a frictionless surface. The block is pulled 8.00 cm from equilibrium and released from rest. For the resulting oscillation, find the (a) ampli- tude, (b) angular frequency, (c) frequency, and (d) period. What is the maximum value of the block’s (e) velocity and (f ) acceleration?
problem 17. fully explain parts e and f. I have answer need explanation as to why...
problem 17. fully explain parts e and f. I have answer
need explanation as to why we multiply for part e. amplitude times
angular frequency to get vmax
um 16. A 0.250-kg block attached to a light spring U 23. Thev At t frictionless, horizontal table. The oscillation amplitude is 0.125 m and the block moves at 3.00 m/s as it passes through equilibrium at 0. (a) Find the spring constant, k. (b) Calculate the total energy of the block-spring...
51 A Block-Spring System A 320-g block connected to a light spring for which the force...
51 A Block-Spring System A 320-g block connected to a light spring for which the force constant is 5.30 N/m is free to oscillate on a frictionless, horizontal surface. The block is displaced 5.10 cm from equilibrium and released from rest as in the figure. (A) Find the period of its motion. (B) Determine the maximum speed of the block. (C) What is the maximum acceleration of the block? (D) Express the position, velocity, and acceleration as functions of time...
(10%) Problem 4: A mass m= 3.6 kg is at the end of a horizontal spring...
(10%) Problem 4: A mass m= 3.6 kg is at the end of a horizontal spring of spring constant k=185 N/m on a frictionless horizontal surface. The block is pulled, stretching the spring a distance A = 5.5 cm from equilibrium, and released from rest. A 17% Part (a) Write an equation for the angular frequency w of the oscillation. HA17% Part (b) Calculate the angular frequency w of the oscillation in rad/seconds. A 17% Part (c) Write an equation...
A block of mass M is attached to a wall by a massless spring with spring constant k. The block is allowed to oscillate on a frictionless surface.
A block of mass M is attached to a wall by a massless spring with spring constant k. The block is allowed to oscillate on a frictionless surface. A second block of mass m is placed on top of the first block. The coefficient of static friction between the two blocks is his. What is the angular frequency of oscillation, and what is the maximum possible amplitude of oscillation such that the second block will not fly off?
2.0 kg block on a horizontal frictionless surface is attached to a spring whose force constant...
2.0 kg block on a horizontal frictionless surface is attached to a spring whose force constant is 590 N/m. The block is pulled from its equilibrium position at x = 0 m to a displacement x = +0.080 m and is released from rest. The block then executes simple harmonic motion along a horizontal x-axis. What is the period (in s) of the resulting motion?
A 0.73 kg block on a horizontal frictionless surface is attached to a spring whose force...
A 0.73 kg block on a horizontal frictionless surface is attached to a spring whose force constant is 210 N/m. The block is pulled from its equilibrium position at x = 0 m to a displacement x = +0.080 m and is released from rest. The block then executes simple harmonic motion along the x-axis (horizontal). When the displacement is x = -2.8×10−2 m, the magnitude of the acceleration of the block is closest to: A 0.73 block on a horizontal...
problem 17. fully explain parts e and f. I have answer
need explanation as to why we multiply for part e. amplitude times
angular frequency to get vmax
um 16. A 0.250-kg block attached to a light spring U 23. Thev At t frictionless, horizontal table. The oscillation amplitude is 0.125 m and the block moves at 3.00 m/s as it passes through equilibrium at 0. (a) Find the spring constant, k. (b) Calculate the total energy of the block-spring...
51 A Block-Spring System A 320-g block connected to a light spring for which the force constant is 5.30 N/m is free to oscillate on a frictionless, horizontal surface. The block is displaced 5.10 cm from equilibrium and released from rest as in the figure. (A) Find the period of its motion. (B) Determine the maximum speed of the block. (C) What is the maximum acceleration of the block? (D) Express the position, velocity, and acceleration as functions of time...
(10%) Problem 4: A mass m= 3.6 kg is at the end of a horizontal spring of spring constant k=185 N/m on a frictionless horizontal surface. The block is pulled, stretching the spring a distance A = 5.5 cm from equilibrium, and released from rest. A 17% Part (a) Write an equation for the angular frequency w of the oscillation. HA17% Part (b) Calculate the angular frequency w of the oscillation in rad/seconds. A 17% Part (c) Write an equation...
