A block whose mass m is 0.5 kg is fastened to a spring whose spring constant...

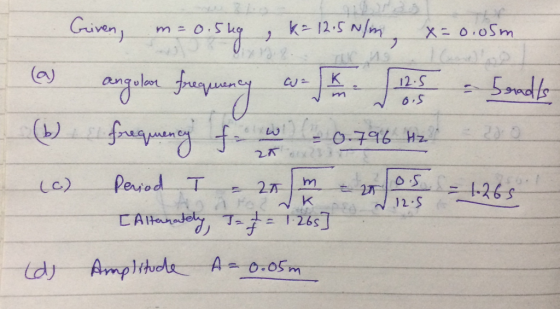

A block whose mass m is 0.5 kg is fastened to a spring whose spring constant is K = 12.5N/m. The block is pulled a distance 0.05 m from its equilibrium position at x = 0 on a frictionless surface and released from rest at t=0.
a) Angular frequency? (Include the symbol and unit of measurement )
b) Frequency? (Include the symbol and unit of measurement )
c) Period? (Include the symbol and unit of measurement )
d) Amplitude? (Include the symbol and unit of measurement )
e) Draw a time line between 0 and 1 second. Sketch the shape of this Oscillation, label the period and amplitude on your sketch.
Homework Answers
Add Answer to:
A block whose mass m is 0.5 kg is fastened to a spring whose
spring constant...
a block whose mass m is 0.65 kg is fastened to a spring whose spring constant...
a block whose mass m is 0.65 kg is fastened to a spring whose spring constant k =65 n the block is pulled a distance x=11cm from its equilibrium position at x=0 on a frictionless surface and released from rest at t=0. what are the angular, f, t? what is the amplitude? PE?KE?Etotal at t=T/6 Vmax? where the block when it occurs
A block of mass m is 650 g which is tied to a spring whose spring...
A block of mass m is 650 g which is tied to a spring whose spring constant is 62 N/m. The block is pulled a distance x=11 cm from its equilibrium position at x=0 on a frictionless surface and released from rest at t=0 s. What are the angular frequency, the frequency, and the period of the resulting motion? What is the amplitude of the oscillation? What is the maximum speed Vm of the oscillating block, and where is the...
A block–spring system consists of a spring with constant k=425 N/m attached to a 2.00-kg block...
A block–spring system consists of a spring with constant k=425 N/m attached to a 2.00-kg block on a frictionless surface. The block is pulled 8.00 cm from equilibrium and released from rest. For the resulting oscillation, find the (a) ampli- tude, (b) angular frequency, (c) frequency, and (d) period. What is the maximum value of the block’s (e) velocity and (f ) acceleration?
A block of mass m = 0.672 kg is fastened to an unstrained horizontal spring whose...
A block of mass m = 0.672 kg is fastened to an unstrained horizontal spring whose spring constant is k = 97.0 N/m. The block is given a displacement of +0.162 m, where the + sign indicates that the displacement is along the +x axis, and then released from rest. (a) What is the force (with sign) that the spring exerts on the block just before the block is released? (b) Find the angular frequency of the resulting oscillatory motion....
(10%) Problem 4: A mass m= 3.6 kg is at the end of a horizontal spring...
(10%) Problem 4: A mass m= 3.6 kg is at the end of a horizontal spring of spring constant k=185 N/m on a frictionless horizontal surface. The block is pulled, stretching the spring a distance A = 5.5 cm from equilibrium, and released from rest. A 17% Part (a) Write an equation for the angular frequency w of the oscillation. HA17% Part (b) Calculate the angular frequency w of the oscillation in rad/seconds. A 17% Part (c) Write an equation...
2.0 kg block on a horizontal frictionless surface is attached to a spring whose force constant...
2.0 kg block on a horizontal frictionless surface is attached to a spring whose force constant is 590 N/m. The block is pulled from its equilibrium position at x = 0 m to a displacement x = +0.080 m and is released from rest. The block then executes simple harmonic motion along a horizontal x-axis. What is the period (in s) of the resulting motion?
A block of mass M is attached to a wall by a massless spring with spring constant k. The block is allowed to oscillate on a frictionless surface.
A block of mass M is attached to a wall by a massless spring with spring constant k. The block is allowed to oscillate on a frictionless surface. A second block of mass m is placed on top of the first block. The coefficient of static friction between the two blocks is his. What is the angular frequency of oscillation, and what is the maximum possible amplitude of oscillation such that the second block will not fly off?
A block of mass m = 6.04 kg is attached to a spring with spring constant...
A block of mass m = 6.04 kg is attached to a spring with spring constant k = 1572 N/m and rests on a frictionless surface. The block is pulled, stretching the spring a distance of 0.170 m, and is held still. The block is then released and moves in simple harmonic motion about the equilibrium position. (Assume that the block is stretched in the positive direction.) (a) What is the frequency of this oscillation? 2.57 Hz (b) Where is...
A 0.73 kg block on a horizontal frictionless surface is attached to a spring whose force...
A 0.73 kg block on a horizontal frictionless surface is attached to a spring whose force constant is 210 N/m. The block is pulled from its equilibrium position at x = 0 m to a displacement x = +0.080 m and is released from rest. The block then executes simple harmonic motion along the x-axis (horizontal). When the displacement is x = -2.8×10−2 m, the magnitude of the acceleration of the block is closest to: A 0.73 block on a horizontal...
A 2.00-kg block lies at rest on a frictionless table. A spring, with a spring constant...
A 2.00-kg block lies at rest on a frictionless table. A spring, with a spring constant of 100 N/m, is attached to the wall and to the block. A second block of 0.50 kg is placed on top of the first one. The 2.00-kg block is gently pulled to a position x = + A and released from rest. There is a coefficient of friction of 0.45 between the two blocks. (a) Assuming that the top block does not slide,...
(10%) Problem 4: A mass m= 3.6 kg is at the end of a horizontal spring of spring constant k=185 N/m on a frictionless horizontal surface. The block is pulled, stretching the spring a distance A = 5.5 cm from equilibrium, and released from rest. A 17% Part (a) Write an equation for the angular frequency w of the oscillation. HA17% Part (b) Calculate the angular frequency w of the oscillation in rad/seconds. A 17% Part (c) Write an equation...
A block of mass m = 6.04 kg is attached to a spring with spring constant k = 1572 N/m and rests on a frictionless surface. The block is pulled, stretching the spring a distance of 0.170 m, and is held still. The block is then released and moves in simple harmonic motion about the equilibrium position. (Assume that the block is stretched in the positive direction.) (a) What is the frequency of this oscillation? 2.57 Hz (b) Where is...
