Homework Answers
Add Answer to:

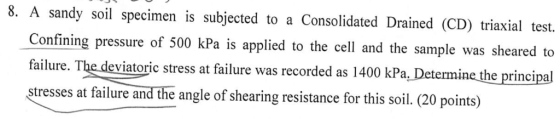

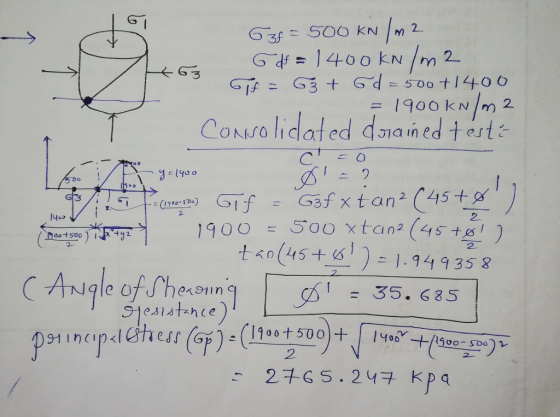

8. A sandy soil specimen is subjected to a Consolidated Drained (CD) triaxial test. Confining pressure...
Hg question A consolidated-drained triaxial test was conducted on saturated normally-consolidated clay sample. The effective confining...
Hg question A consolidated-drained triaxial test was conducted on saturated normally-consolidated clay sample. The effective confining stress was 200 kPa. The specimen failed at a deviatoric stress, (40), of 538 kPa. b. Determine the shear stress on the failure plane at failure. Use c = 0. Paragraph - BIE D Previous page Next page
Problem 3: A consolidated-drained triaxial test is carried out on a sand specimen that is subjected...
Problem 3: A consolidated-drained triaxial test is carried out on a sand specimen that is subjected to 80 kN/m2 confining pressure. The vertical deviator stress was increased slowly such that there is no built-up of pore water pressure within the specimen. The specimen failed when the addition axial stress reached 240 kN/m2. Find the friction angle of the sand. If another identical sand specimen was subjected to 150 kN/m? confining pressure, what would be the deviator stress at failure.
soil mechanics will rate if correct 13. A consolidated, undrained (CU) Triaxial test was performed on...
soil mechanics
will rate if correct
13. A consolidated, undrained (CU) Triaxial test was performed on a normally consolidated, saturated clay. The minor principal effective stress at the end of consolidation phase, c'3c was 100 kPa. The deviatoric stress, Aod, at failure was 60 kPa. The excess pore pressure at failure, Au was 45 kPa. What is the effective friction angle, "? (a) 21 degrees (6) 26 degrees (e) 33 degrees 14. A consolidated, undrained (CU) Triaxial test was performed...
Example 2 (past exam Q) A triaxial test specimen of fine sand was subjected to a cell pressure of 350kPa and a back...
Example 2 (past exam Q) A triaxial test specimen of fine sand was subjected to a cell pressure of 350kPa and a back pressure of 300kPa. After closing the valve to the back pressure, the cell pressure was increased to 450kPa to measure the pore pressure parameter B. The obtained B was 0.98. The specimen was then loaded undrained to failure with cell pressure of 450kPa. The sand has an angle of shearing resistance of 30°, the pore pressure parameter...
A consolidated undrained (CU) triaxial compression test (TXC) was conducted on a specimen of saturated clay....
A consolidated undrained (CU) triaxial compression test (TXC) was conducted on a specimen of saturated clay. The specimen was isotropically consolidated to a total cell pressure, σcell of 400 kPa. The backpressure was u0 = 100 kPa. At failure, the total pore water pressure was u = 90 kPa and the deviator stress was (σ1 − σ3)f = 526 kPa. Determine: a. The principal effective stresses, σ1′ and σ3′, at failure b. The friction angle, φ′ (secant method). c. The...
Problems 39 ist four major factors that influence the internal friction angle of cohesionless soils 7-2 Define soil sensitivity and thixotropy In a direct shear test on a loose sand, a shearing s...
Problems 39 ist four major factors that influence the internal friction angle of cohesionless soils 7-2 Define soil sensitivity and thixotropy In a direct shear test on a loose sand, a shearing stress of 36.1 kPa was recorded 7-3 while the normal stress on the failure plane was 66.4 kPa. (a) What are the shear strength parameters, c', φ'? (b) Find the major and minor principal stresses at failure. (c) Determine the shear strength at a normal stress of 110.0...
2. The results of a Consolidated Undrained (CU) triaxial test on a sand soil are in the figures below. The sample was subjected to a vertical load (do). At failure, the Δσ was 914 psi and the induced...
2. The results of a Consolidated Undrained (CU) triaxial test on a sand soil are in the figures below. The sample was subjected to a vertical load (do). At failure, the Δσ was 914 psi and the induced pore water pressure at failure (Au) was 683 psi. consolidated to a stress of 12 psi and then Au 6.83 psi σ,-12 psi -σ,-12 psi Sand At Failure Initial (Consolidation) A. Draw both the total and effective stress Mohr's Circles at failure...
4. Shear Strength A sample of cohesive soil with undrained shear strength of 30 Kpa is beng tested in a triaxial est with a confining pressure of 15 Kpa (see the figure below). Sketch the failure...
4. Shear Strength A sample of cohesive soil with undrained shear strength of 30 Kpa is beng tested in a triaxial est with a confining pressure of 15 Kpa (see the figure below). Sketch the failure envelope and Mohr's circle representing the state of stress at failure. Evaluate the following: (i) The vertical axial stress at failure. (ii) The major and minor principal stresses at failure (ii) The orientation of failure plane with respect to horizontal plane. (iv) The normal...
(b) A saturated specimen of cohesionless sand was tested under drained conditions in a triaxial compression...
(b) A saturated specimen of cohesionless sand was tested under drained conditions in a triaxial compression test apparatus and the sample failed at a deviator stress of 470 kN/m and the plane of failure made an angle of 58° to the horizontal I Determine the magnitudes of the principal stresses. (4 marks) II. Determine the magnitude of the deviator stress and the major principle stress at failure for another identical sample of sand if it is tested under a cell...
A standard isotropically consolidated drained triaxial compression loading test (CIDC) conducted on a normally consolidated clay...
A standard isotropically consolidated drained triaxial compression loading test (CIDC) conducted on a normally consolidated clay specimen with a preshear consolidation stress s’c = 150 kPa resulted in a measured peak deviator stress (s1-s3)f = 205 kPa. a. Estimate c’ and f’ b. What would p’f, qf, Ds’1f and Ds’3f be if a standard isotropically consolidated drained triaxial compression unloading test was conducted on the same soil with s’c = 200 kPa? Symbols: s=sigma, f=phi, D=delta, Ds'=delta sigma prime,
Hg question A consolidated-drained triaxial test was conducted on saturated normally-consolidated clay sample. The effective confining stress was 200 kPa. The specimen failed at a deviatoric stress, (40), of 538 kPa. b. Determine the shear stress on the failure plane at failure. Use c = 0. Paragraph - BIE D Previous page Next page
Problem 3: A consolidated-drained triaxial test is carried out on a sand specimen that is subjected to 80 kN/m2 confining pressure. The vertical deviator stress was increased slowly such that there is no built-up of pore water pressure within the specimen. The specimen failed when the addition axial stress reached 240 kN/m2. Find the friction angle of the sand. If another identical sand specimen was subjected to 150 kN/m? confining pressure, what would be the deviator stress at failure.
soil mechanics
will rate if correct
13. A consolidated, undrained (CU) Triaxial test was performed on a normally consolidated, saturated clay. The minor principal effective stress at the end of consolidation phase, c'3c was 100 kPa. The deviatoric stress, Aod, at failure was 60 kPa. The excess pore pressure at failure, Au was 45 kPa. What is the effective friction angle, "? (a) 21 degrees (6) 26 degrees (e) 33 degrees 14. A consolidated, undrained (CU) Triaxial test was performed...
Example 2 (past exam Q) A triaxial test specimen of fine sand was subjected to a cell pressure of 350kPa and a back pressure of 300kPa. After closing the valve to the back pressure, the cell pressure was increased to 450kPa to measure the pore pressure parameter B. The obtained B was 0.98. The specimen was then loaded undrained to failure with cell pressure of 450kPa. The sand has an angle of shearing resistance of 30°, the pore pressure parameter...
Problems 39 ist four major factors that influence the internal friction angle of cohesionless soils 7-2 Define soil sensitivity and thixotropy In a direct shear test on a loose sand, a shearing stress of 36.1 kPa was recorded 7-3 while the normal stress on the failure plane was 66.4 kPa. (a) What are the shear strength parameters, c', φ'? (b) Find the major and minor principal stresses at failure. (c) Determine the shear strength at a normal stress of 110.0...
2. The results of a Consolidated Undrained (CU) triaxial test on a sand soil are in the figures below. The sample was subjected to a vertical load (do). At failure, the Δσ was 914 psi and the induced pore water pressure at failure (Au) was 683 psi. consolidated to a stress of 12 psi and then Au 6.83 psi σ,-12 psi -σ,-12 psi Sand At Failure Initial (Consolidation) A. Draw both the total and effective stress Mohr's Circles at failure...
4. Shear Strength A sample of cohesive soil with undrained shear strength of 30 Kpa is beng tested in a triaxial est with a confining pressure of 15 Kpa (see the figure below). Sketch the failure envelope and Mohr's circle representing the state of stress at failure. Evaluate the following: (i) The vertical axial stress at failure. (ii) The major and minor principal stresses at failure (ii) The orientation of failure plane with respect to horizontal plane. (iv) The normal...
(b) A saturated specimen of cohesionless sand was tested under drained conditions in a triaxial compression test apparatus and the sample failed at a deviator stress of 470 kN/m and the plane of failure made an angle of 58° to the horizontal I Determine the magnitudes of the principal stresses. (4 marks) II. Determine the magnitude of the deviator stress and the major principle stress at failure for another identical sample of sand if it is tested under a cell...
