Sketch circuit for the following logic equation.

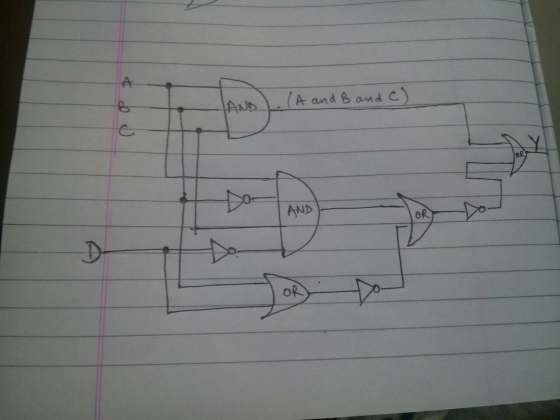

Y = (A and B and C) or not ((A and not B and C and not D) or not (B or D))
Sketch circuit for the following logic equation. Y = (A and B and C) or not...
4. Consider the logic equation Y=.NOT. (A. (B+C)(D+E)). a. Sketch the circuit using Complementary CMOS design (20%) b. Sketch the circuit using Dynamic Logic design (15%) c. Sketch the circuit using Domino Logic design (15%)
Implement the circuit defined by equation F(a,b,c,d) = ∑( )
using:
a. -to- multiplexers and logic gates.
b. -to- decoders and logic gates.
(0,5,6,7,11) 3. Implement the circuit defined by equation F(a,b,c,d) = using: a. 4-to-1 multiplexers and logic gates. b. 2-to-4 decoders and logic gates.
PROBLEM 3 (16 PTS) ▪ With a D
flip flop and logic gates, sketch the circuit whose excitation
equation is given by:
PROBLEM 3 (16 PTS) • With a D flip flop and logic gates, sketch the circuit whose excitation equation is given by: Qit+1) + y + Q(t) + y(t) (4 pts) • Complete the timing diagram of the circuit whose VHDL description is shown below. Also, get the excitation equation for q. library ieee: elsaf (cll'event and clk...
(0,5,6,7,11) using: Implement the circuit defined by equation F(a,b,c,d) 1. 4-to-1 multiplexers and logic gates. 2. 2-to-4 decoders with non-inverted outputs and logic gates.
(0,5,6,7,11) using: Implement the circuit defined by equation F(a,b,c,d) 1. 4-to-1 multiplexers and logic gates. 2. 2-to-4 decoders with non-inverted outputs and logic gates.
Consider the following logic functions with a, b, c, d, e as logic inputs, x and y as intermediate outputs, and fis the output. :=e(d + x) 5 a) Implement the logic function fas a 3-stage precharged dynamic complex CMOS circuit using inverter between two consecutive stages. b) Implement the logic function fas a 3-stage precharged dynamic complex CMOS circuit using NP logic
There are two multiplexers in the following circuit. The three ports A, B, C are inputs, and s) uput(1) Write a truth table for the logic function Y F(A, B, C) of the following cirouit (2) ne inimized Boolean equation for the logic function. B C 01 10 ground P. (5 pts). Use a decoder to implement the following Boolean logic function: Y= AB+AC. Draw schematic of your circuit.
4. Implement the function using only NOR gates (20 pts) (A B+C).D Sketch the logic gate schematic and verify your circuit by truth table.
A sequential circuit with two D Flip-Flops and one input X and one output Y is specifed by the following input equations: Y = A'+B DA = X + B DB = XA' (a) Draw the logic diagram of the circuit (b) Derive the state table. (c) Derive the state diagram. (b) Is this a Mealy or a Moore machine?
Problem 5. (20 points) Design and sketch a standard CMOS transistor circuit to implement the logic function F=(AB+C)D
Problem_#04] Using AND and OR gates develop the logic circuit for the Boolean equation shown below. Y =AB(C + DEF) + CE(A + B + F)
