Problem statement: The reel of rope has the angular motion shown. α = 8 rad/s2, ω = 5 rad/s.
Problem statement: The reel of rope has the angular motion shown. α = 8 rad/s2, ω = 5 rad/s.

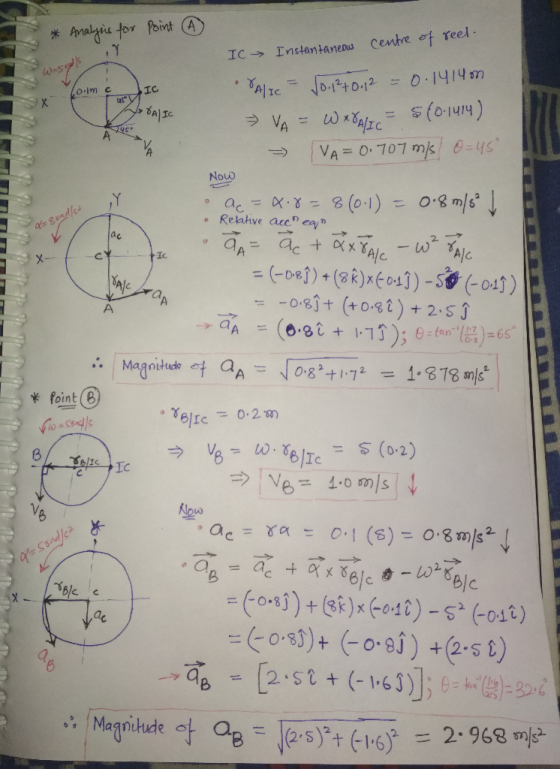

(a) Determine the velocity and acceleration of point A at the instant shown.
(b) Determine the velocity and acceleration of point B at the instant shown.
Homework Answers
Add Answer to:
Problem statement: The reel of rope has the angular motion shown. α = 8 rad/s2, ω = 5 rad/s.
The reel of rope has the angular velocity ω = 3 rad/s and angular acceleration α = 8 rad/s2 (Figure 1)
The reel of rope has the angular velocity ω = 3 rad/s and angular acceleration α = 8 rad/s2 (Figure 1) Part ADetermine the magnitude of the velocity of point A at the instant shownPart B Determine the direction of the velocity of point A at the instant shown. Part C Determine the magnitude of the acceleration of point A at the instant shown. Part D Determine the direction of the acceleration of point A at the instant shown.
The reel of rope has the angular velocity ω = 5 rad/s and angular acceleration α = 7 rad/s2 (Figure 1)
The reel of rope has the angular velocity ω = 5 rad/s and angular acceleration α = 7 rad/s2 (Figure 1) Part ADetermine the magnitude of the velocity of point A at the instant shownPart B Determine the direction of the velocity of point A at the instant shown. Part C Determine the magnitude of the acceleration of point A at the instant shown. Part D Determine the direction of the acceleration of point A at the instant shown.
Problem 16.113 17 The reel of rope has the angular velocity w = 5 rad/s and...
The reel of rope has the angular velocity ω = 5 rad/s and angular acceleration α = 8 rad/s2 (Figure 1) Part ADetermine the magnitude of the velocity of point A at the instant shownPart B Determine the direction of the velocity of point A at the instant shown. Part C Determine the magnitude of the acceleration of point A at the instant shown. Part D Determine the direction of the acceleration of point A at the instant shown.
2. At the instant shown, the shaft and plate rotates with ω-14 rad/s and α- 7 rad/s2. Determine t...
2. At the instant shown, the shaft and plate rotates with ω-14 rad/s and α- 7 rad/s2. Determine the velocity and acceleration of point D located on the corner of the plate at this instant. Express the result in Cartesian vector form. 0.6 m 0.2 m 0.4m 0.3 m 0.3 m 0.4 m
2. At the instant shown, the shaft and plate rotates with ω-14 rad/s and α- 7 rad/s2. Determine the velocity and acceleration of point D located on...
Problem 2 (8 points Knowing that at the instant shown the angular velocity of crank AB is 2.7 rad...
Problem 2 (8 points Knowing that at the instant shown the angular velocity of crank AB is 2.7 rad/sec clockwise and α =-2k rad/s, determine i) The angular velocity of link (ii) The velocity of the midpoint of link BD. (iii) The acceleration of point D. (iv) The angular acceleration of link BD 5 in. 9 in. 12 in
Problem 2 (8 points Knowing that at the instant shown the angular velocity of crank AB is 2.7 rad/sec clockwise and...
Disk D has angular velocity ω': 4 rad/s and angular acceleration α': 1.2 rad/s' and radius...
Disk D has angular velocity ω': 4 rad/s and angular acceleration α': 1.2 rad/s' and radius r = 0.3 m. The fixed curved surface C has radius R = 0.8 m. If no slipping occurs between disk D and the fixed surface C, determine the angular velocity and angular acceleration, ω and α, of arm AB. 2. ω,α ω.a
The device shown rotates about the fixed z-axis with angular velocity ω = 18 rad/s and...
The device shown rotates about the fixed z-axis with
angular velocity ω = 18 rad/s and angular acceleration
α = 36 rad/s2 in the directions indicated.
Determine the instantaneous velocity and acceleration of point
B.
B 50° 50° Ο Α هلال α OA = 380 mm, AB = 650 mm Answers: VB -14.361 -0.79782 -0.49794 + + Uk) m/s X ав = 28.721 -258.49 18 Ji + + Uk) m/s2
The disk rotates with the angular motion shown. The peg at B is fixed to the...
The disk rotates with the angular motion shown. The peg at
B is fixed to the disk. Suppose that ω = 9 rad/s
, α = 10 rad/s2, r = 0.3 m , and a =
1.35 m . (Figure 1)
Determine the angular velocity of the slotted link
AC at this instant measured counterclockwise.
Express your answer using three significant figures. Enter
positive value if the angular velocity is counterclockwise and
negative value if the angular velocity is clockwise....
The device shown rotates about the fixed z-axis with angular velocity ω = 18 rad/s and...
The device shown rotates about the fixed z-axis with
angular velocity ω = 18 rad/s and angular acceleration
α = 36 rad/s2 in the directions indicated.
Determine the instantaneous velocity and acceleration of point
B.
B 50 50° А OA = 380 mm, AB = 650 mm Answers: X X Ve = -14.361 0.79782 00 + Uk) m/s x a B 28.721 -258.49 -36 Ji + j + Uk) m/s2
5. At the instant shown, rod AB has a constant angular velocity of 5 rad/s counterclockwise. Dete...
5. At the instant shown, rod AB has a constant angular velocity of 5 rad/s counterclockwise. Determine (a) the angular acceleration of rod BD and (b) the angular acceleration of rod DIE 5 rad/s 60° 180 mm 180 mm
5. At the instant shown, rod AB has a constant angular velocity of 5 rad/s counterclockwise. Determine (a) the angular acceleration of rod BD and (b) the angular acceleration of rod DIE 5 rad/s 60° 180 mm 180 mm
2. At the instant shown, the shaft and plate rotates with ω-14 rad/s and α- 7 rad/s2. Determine the velocity and acceleration of point D located on the corner of the plate at this instant. Express the result in Cartesian vector form. 0.6 m 0.2 m 0.4m 0.3 m 0.3 m 0.4 m
2. At the instant shown, the shaft and plate rotates with ω-14 rad/s and α- 7 rad/s2. Determine the velocity and acceleration of point D located on...
Problem 2 (8 points Knowing that at the instant shown the angular velocity of crank AB is 2.7 rad/sec clockwise and α =-2k rad/s, determine i) The angular velocity of link (ii) The velocity of the midpoint of link BD. (iii) The acceleration of point D. (iv) The angular acceleration of link BD 5 in. 9 in. 12 in
Problem 2 (8 points Knowing that at the instant shown the angular velocity of crank AB is 2.7 rad/sec clockwise and...
Disk D has angular velocity ω': 4 rad/s and angular acceleration α': 1.2 rad/s' and radius r = 0.3 m. The fixed curved surface C has radius R = 0.8 m. If no slipping occurs between disk D and the fixed surface C, determine the angular velocity and angular acceleration, ω and α, of arm AB. 2. ω,α ω.a
The device shown rotates about the fixed z-axis with
angular velocity ω = 18 rad/s and angular acceleration
α = 36 rad/s2 in the directions indicated.
Determine the instantaneous velocity and acceleration of point
B.
B 50° 50° Ο Α هلال α OA = 380 mm, AB = 650 mm Answers: VB -14.361 -0.79782 -0.49794 + + Uk) m/s X ав = 28.721 -258.49 18 Ji + + Uk) m/s2
The disk rotates with the angular motion shown. The peg at
B is fixed to the disk. Suppose that ω = 9 rad/s
, α = 10 rad/s2, r = 0.3 m , and a =
1.35 m . (Figure 1)
Determine the angular velocity of the slotted link
AC at this instant measured counterclockwise.
Express your answer using three significant figures. Enter
positive value if the angular velocity is counterclockwise and
negative value if the angular velocity is clockwise....
The device shown rotates about the fixed z-axis with
angular velocity ω = 18 rad/s and angular acceleration
α = 36 rad/s2 in the directions indicated.
Determine the instantaneous velocity and acceleration of point
B.
B 50 50° А OA = 380 mm, AB = 650 mm Answers: X X Ve = -14.361 0.79782 00 + Uk) m/s x a B 28.721 -258.49 -36 Ji + j + Uk) m/s2
5. At the instant shown, rod AB has a constant angular velocity of 5 rad/s counterclockwise. Determine (a) the angular acceleration of rod BD and (b) the angular acceleration of rod DIE 5 rad/s 60° 180 mm 180 mm
5. At the instant shown, rod AB has a constant angular velocity of 5 rad/s counterclockwise. Determine (a) the angular acceleration of rod BD and (b) the angular acceleration of rod DIE 5 rad/s 60° 180 mm 180 mm
