The reel of rope has the angular velocity ω = 3 rad/s and angular acceleration α = 8 rad/s2 (Figure 1)

Question

Question

The reel of rope has the angular velocity ω = 3 rad/s and angular acceleration α = 8 rad/s² (Figure 1)

Part A

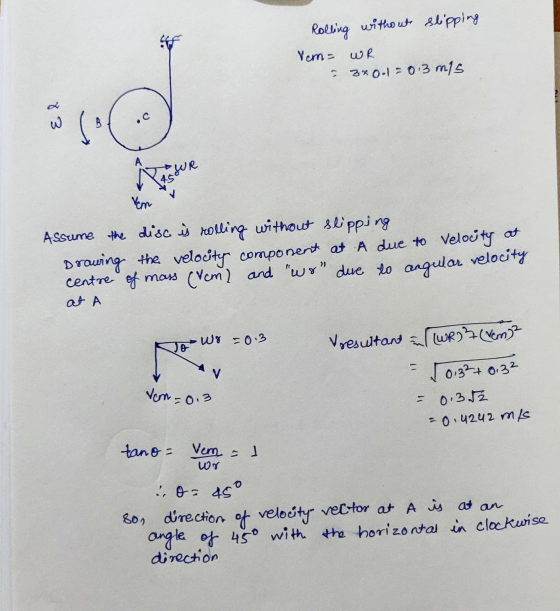

Determine the magnitude of the velocity of point A at the instant shown

Part B

Determine the direction of the velocity of point A at the instant shown.

Part C

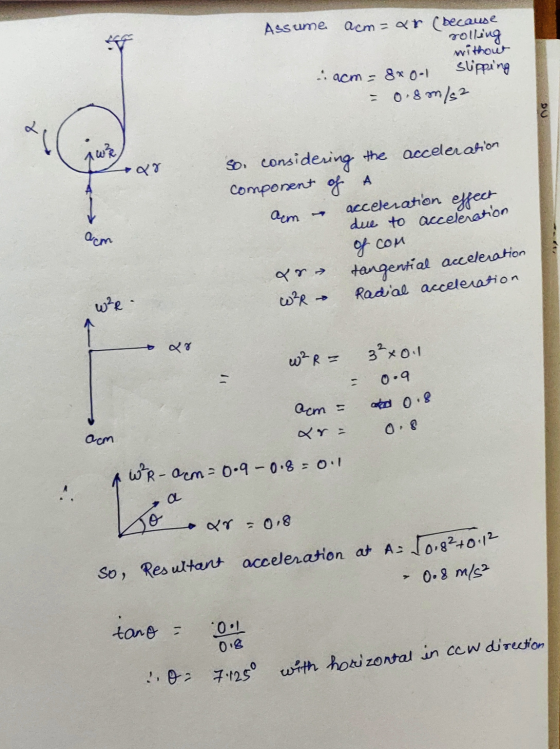

Determine the magnitude of the acceleration of point A at the instant shown.

Part D

Determine the direction of the acceleration of point A at the instant shown.

engineering Mechanical-Engineering

Answer 1

Answer #1

Answer 2
