Mermber AB has the angular velocity ωAB = 3 rad/s and angular acceleration αAB = 3.5 rad/s2

Question

Question

Mermber AB has the angular velocity ωAB = 3 rad/s and angular acceleration αAB = 3.5 rad/s2

Mermber AB has the angular velocity ωAB = 3 rad/s and angular acceleration αAB = 3.5 rad/s2 . (Figure 1)

Part A

Determine the angular velocity of member CB measured counterclockwise.

Part B

Determine the angular acceleration of member CB measured counterclockwise.

Part C

Determine the angular velocity of member DC measured counterclockwise.

Part D

Determine the angular acceleration of member DC measured counterclockwise.

engineering Mechanical-Engineering

Add a comment Improve this question Transcribed image text

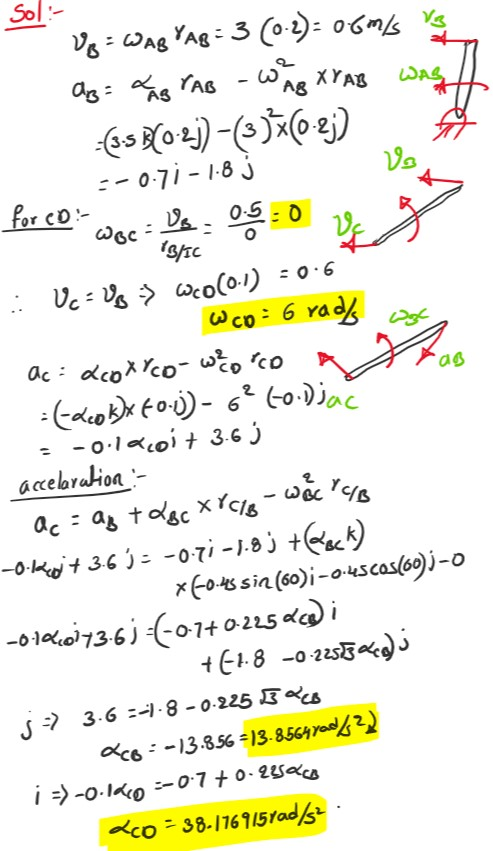

Answer 1

Answer #1

Add a comment

Answer 2

Similar Homework Help Questions

Mermber AB has the angular velocity ωAB = 2 rad/s and angular acceleration αAB = 3.5 rad/s2 . (Figure 1)

Mermber AB has the angular velocity ωAB = 2 rad/s and angular acceleration αAB = 3.5 rad/s2 . (Figure 1) Part A Determine the angular velocity of member CB measured counterclockwise. Part B Determine the angular acceleration of member CB measured counterclockwise. Part C Determine the angular velocity of member DC measured counterclockwise. Part D Determine the angular acceleration of member DC measured counterclockwise.
Member AB has the angular velocity ωAB = 2.5 rad/s and angular acceleration αAB = 5...

Member AB has the angular velocity ωAB = 2.5 rad/s and angular acceleration αAB = 5 rad/s2 . (Figure 1.Determine the angular velocity of member CB measured counterclockwise. 2.Determine the angular acceleration of member CB measured counterclockwise. 3.Determine the angular velocity of member DC measured counterclockwise. 4.Determine the angular acceleration of member DC measured counterclockwise. 0 D 450 mm 200 mm 100 mm 60° AB AB
Link AB has the angular velocity ωAB = 3.5 rad/s and angular acceleration αAB = 6 rad/s2 .

Link AB has the angular velocity ωAB = 3.5 rad/s and angular acceleration αAB = 6 rad/s2 . (Figure 1) Part A Determine the angular acceleration of link CD measured counterclockwise.

Member AB is rotating at ωAB = 3 rad/s. (Figure 1)

Member AB is rotating at ωAB = 3 rad/s. (Figure 1) Part A Determine the e and y components of the velocity of point D. Part B Determine the angular velocity of the member BPD measured clockwise. Part C Determine the angular velocity of the member CD measured counterclockwise.
Determine the angular acceleration αAB (positive if counterclockwise, negative if clockwise) of AB for the position...

Determine the angular acceleration αAB (positive if counterclockwise, negative if clockwise) of AB for the position shown if link OB has a constant angular velocity ω = 1.87 rad/s and the distance r = 335 mm. O to rv 2 Answer: AAB = rad/s2 the tolerance is +/-2%
The instant shown, bar AB has an angular velocity of 4.5 rad/s and an angular acceleration...

The instant shown, bar AB has an angular velocity of 4.5 rad/s and an angular acceleration of 2.4 rad/s2, both clockwise. 25 in. - 20 in. 20 in. - Determine the angular acceleration of bar BD by using the vector approach. (You must provide an answer before moving to the next part.) The angular acceleration of bar BD is r r ad/s2 counterclockwise.

The reel of rope has the angular velocity ω = 3 rad/s and angular acceleration α = 8 rad/s2 (Figure 1)

The reel of rope has the angular velocity ω = 3 rad/s and angular acceleration α = 8 rad/s2 (Figure 1) Part ADetermine the magnitude of the velocity of point A at the instant shownPart B Determine the direction of the velocity of point A at the instant shown. Part C Determine the magnitude of the acceleration of point A at the instant shown. Part D Determine the direction of the acceleration of point A at the instant shown.
The reel of rope has the angular velocity ω = 5 rad/s and angular acceleration α = 7 rad/s2 (Figure 1)

The reel of rope has the angular velocity ω = 5 rad/s and angular acceleration α = 7 rad/s2 (Figure 1) Part ADetermine the magnitude of the velocity of point A at the instant shownPart B Determine the direction of the velocity of point A at the instant shown. Part C Determine the magnitude of the acceleration of point A at the instant shown. Part D Determine the direction of the acceleration of point A at the instant shown.
The link AB has an angular velocity of 2.1 rad/s (Figure 1) Part A Determine the...

The link AB has an angular velocity of 2.1 rad/s (Figure 1) Part A Determine the velocity of block C, at the instant θ 45° Express your answer to three significant figures and include the appropriate units. Enter positive value if the velocity is directed to the left and negative value if the velocity is directed to the right. ucValue Units Submit Request Answer Part B Figure 1of 1 > Determine the angular velocity of link BC at the instant...

1. The bar AB rotates at constant 10 rad/s (a = 0 rad/s?) in the counterclockwise...

1. The bar AB rotates at constant 10 rad/s (a = 0 rad/s?) in the counterclockwise direction Determine: B D 0 1 1 m -450 S C 1 m 1 m Write the coordinates of all joints and COM. Assume the COM is in the center of each link: A B D С GI G2 G3 X у Write the equations for velocities and solve the system of equations (25 pts): a) Angular velocity of link BD: b) Angular velocity...

Mermber AB has the angular velocity ωAB = 3 rad/s and angular acceleration αAB = 3.5 rad/s2
