I need to complete the following task in multisim.

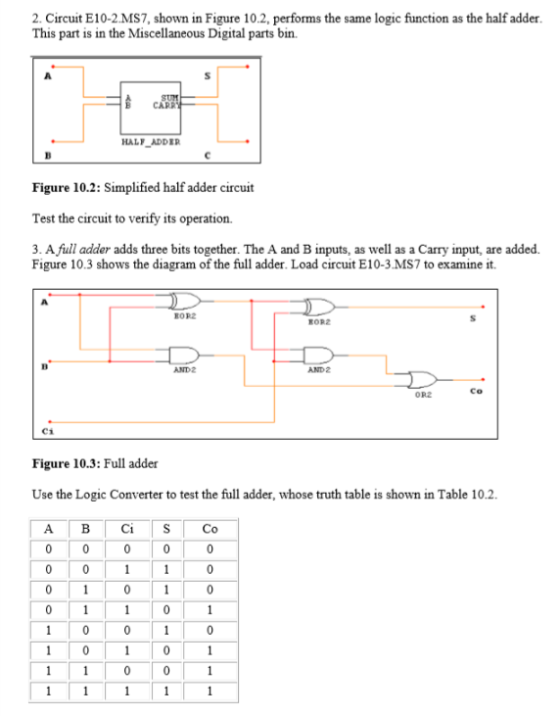

2. Circuit E10-2.MS7, shown in Figure 10.2, performs the same logic function as the half adder This part is in the Miscellaneous Digital parts bin HALF ADDER Figure 10.2: Simplified half adder circuit Test the circuit to verify its operation. 3. Afull adde? adds three bits together. The A and B inputs, as well as a Carry input, are added. Figure 10.3 shows the diagram of the full adder. Load circuit E10-3 MS7 to examine it. RORZ AND 2 Co OR2 C1 Figure 10.3: Full adder Use the Logic Converter to test the full adder, whose truth table is shown in Table 10.2.

0 0
Add a comment Improve this question Transcribed image text
Answer #1

ANSWER:

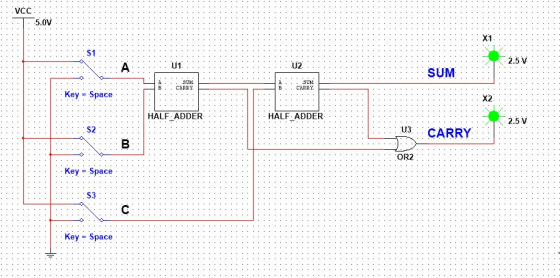

: .VCČ 5.0V .. . X1 $1 U2 SUM SUM B. . CARBY. SUM B . . CARBY. KeySpace се x2 HALF ADDER HALF ADDER 2.5 V CARRY $2 Key Spaee

For any queries, leave a comment. And a thumbs up is always appreciated. Thanks !
