Question

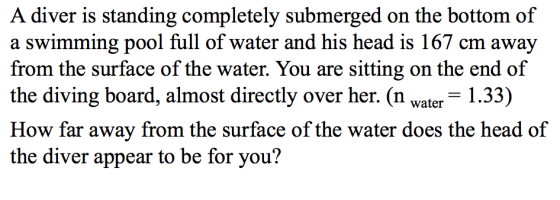

A diver is standing completely submerged on the bottom of a swimming pool full of water and his head is 167 cm away from the surface of the water. You are sitting on the end of the diving board, almost directly over her. (n water 1.33) How far away from the surface of the water does the head of the diver appear to be for you?

0 0
Add a comment Improve this question Transcribed image text
Answer #1

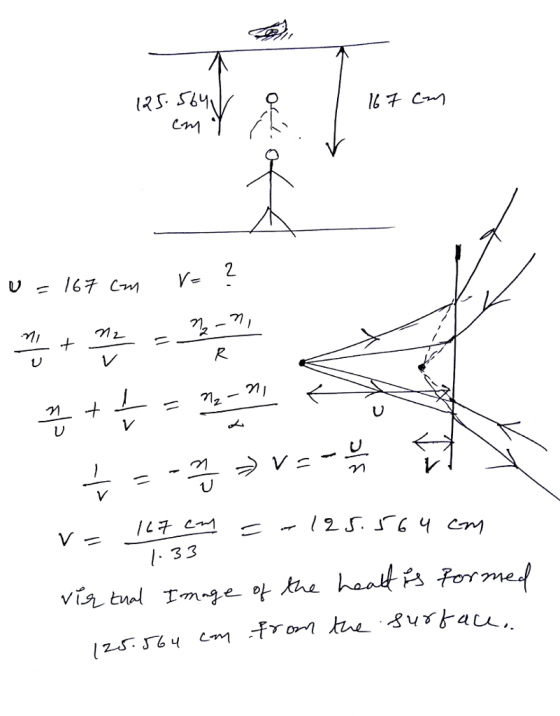

mI l. 33
