A 200 cm long vertical pole extends from the bottom of a swimming pool to a...

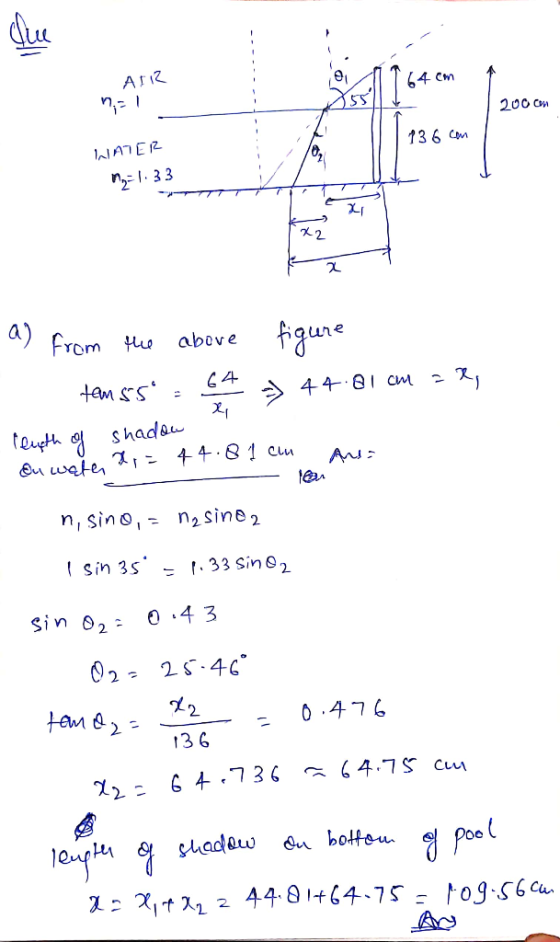

A 200 cm long vertical pole extends from the bottom of a swimming pool to a point that is 64 cm above the water. Sunlight is incident at 55° with respect to the surface of the water. (a) Find the length of the shadow of the pole on the surface of the water. (b) Find the length of the shadow of the pole on the bottom of the pool. Use n = 1.33 for the index of refraction of water.
Homework Answers
Add Answer to:
A 200 cm long vertical pole extends from the bottom of a
swimming pool to a...
In the figure, a 2.0-m-long vertical pole extends from the bottom of a swimming pool to...
In the figure, a 2.0-m-long vertical pole extends from the bottom of a swimming pool to a point 50.0 cm above the water. Sunlight is incident at angle θ = 50.0°. What is the length in meters of the shadow of the pole on the level bottom of the pool? The water has an index of refraction of 1.33.
In the figure, a 1.8-m-long vertical pole extends from the bottom of a swimming pool to...
In the figure, a 1.8-m-long vertical pole extends from the
bottom of a swimming pool to a point 50.0 cm above the water.
Sunlight is incident at angle θ = 48.0°. What is the length in
meters of the shadow of the pole on the level bottom of the pool?
The water has an index of refraction of 1.33.
Blocked Sunrays
In the figure, a 1.8-m-long vertical pole extends from the bottom of a swimming pool to...
In the figure, a 1.8-m-long vertical pole extends from the bottom of a swimming pool to a point 50.0 cm above the water. Sunlight is incident at angle 0 = 52.0°. What is the length in meters of the shadow of the pole on the level bottom of the pool? The water has an index of refraction of 1.33. Blocked sunrays Number Units
In the figure, a 2.4 m long vertical pole extends am the bottom of a swimming...
In the figure, a 2.4 m long vertical pole extends am the bottom of a swimming pool to a point S cm above the water Sunlight is incident at angle theta = 52.0 degree what is the length in meters of the shadow of the pale on the lessthanorequalto bottom of the pool? The water has an index of refraction of 1.33.
A small spotlight mounted in the bottom of a swimming pool that is 3.1 m deep...
A small spotlight mounted in the bottom of a swimming pool that is 3.1 m deep emits light in all directions. On the surface of the pool, directly above the light, the area illuminated is a circle. Determine the maximum radius of this circle. The index of refraction of water is 1.33. _______m
A flashlight is held at the edge of a swimming pool at a height h = 2.2 m
A flashlight is held at the edge of a swimming pool at a height h = 2.2 m such that its beam makes an angle of θ = 58 degrees with respect to the water's surface. The pool is d = 1.5 m deep and the index of refraction for air and water are n1=1 and n2 = 1.33, respectively. What is the horizontal distance D, from the edge of the pool to the port on the bottom of the pool...
A flashlight is held at the edge of a swimming pool at a height h = 2.4 m such that its beam makes an angle of θ = 41 degrees with respect to the water's surface
A flashlight is held at the edge of a swimming pool at a height h = 2.4 m such that its beam makes an angle of θ = 41 degrees with respect to the water's surface. The pool is d = 2.25 m deep and the index of refraction for air and water are n1 = 1 and n2 = 1.33, respectively.what is the horizontal distance, D, from the edge of the pool to the point on the bottom of...
You are standing in a 1.5-m-deep swimming pool at night. The water is very still. You...
You are standing in a 1.5-m-deep swimming pool at night. The water is very still. You hold a laser pointer just above the water's surface and shine it nearly parallel to the surface, but tilted slightly down so that the beam enters the water 3.5mfrom you. How far from you does the beam strike the bottom of the pool? Index of refraction of the water is 1.33.
Grade Cate Description Policies: Light is travel from the bottom of a swimming pool to the...
Grade Cate Description Policies: Light is travel from the bottom of a swimming pool to the air above. If the angle between the surface of the water and light refraction of water is 1.3 from the bottom of the pool is 60°, what is the angle of refraction. The index of You can che You can view give up on a You can keep you get it rig You lose S% o answer in you attempt at tha degrees D...
A diver is standing completely submerged on the bottom of a swimming pool full of water...
A diver is standing completely submerged on the bottom of a swimming pool full of water and his head is 167 cm away from the surface of the water. You are sitting on the end of the diving board, almost directly over her. (n water 1.33) How far away from the surface of the water does the head of the diver appear to be for you?
In the figure, a 1.8-m-long vertical pole extends from the
bottom of a swimming pool to a point 50.0 cm above the water.
Sunlight is incident at angle θ = 48.0°. What is the length in
meters of the shadow of the pole on the level bottom of the pool?
The water has an index of refraction of 1.33.
Blocked Sunrays
In the figure, a 1.8-m-long vertical pole extends from the bottom of a swimming pool to a point 50.0 cm above the water. Sunlight is incident at angle 0 = 52.0°. What is the length in meters of the shadow of the pole on the level bottom of the pool? The water has an index of refraction of 1.33. Blocked sunrays Number Units
In the figure, a 2.4 m long vertical pole extends am the bottom of a swimming pool to a point S cm above the water Sunlight is incident at angle theta = 52.0 degree what is the length in meters of the shadow of the pale on the lessthanorequalto bottom of the pool? The water has an index of refraction of 1.33.
Grade Cate Description Policies: Light is travel from the bottom of a swimming pool to the air above. If the angle between the surface of the water and light refraction of water is 1.3 from the bottom of the pool is 60°, what is the angle of refraction. The index of You can che You can view give up on a You can keep you get it rig You lose S% o answer in you attempt at tha degrees D...
A diver is standing completely submerged on the bottom of a swimming pool full of water and his head is 167 cm away from the surface of the water. You are sitting on the end of the diving board, almost directly over her. (n water 1.33) How far away from the surface of the water does the head of the diver appear to be for you?
