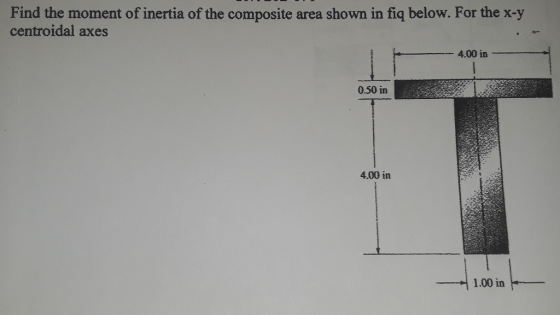

Find the moment of inertia of the composite area shown in fiq below. For the x-y...

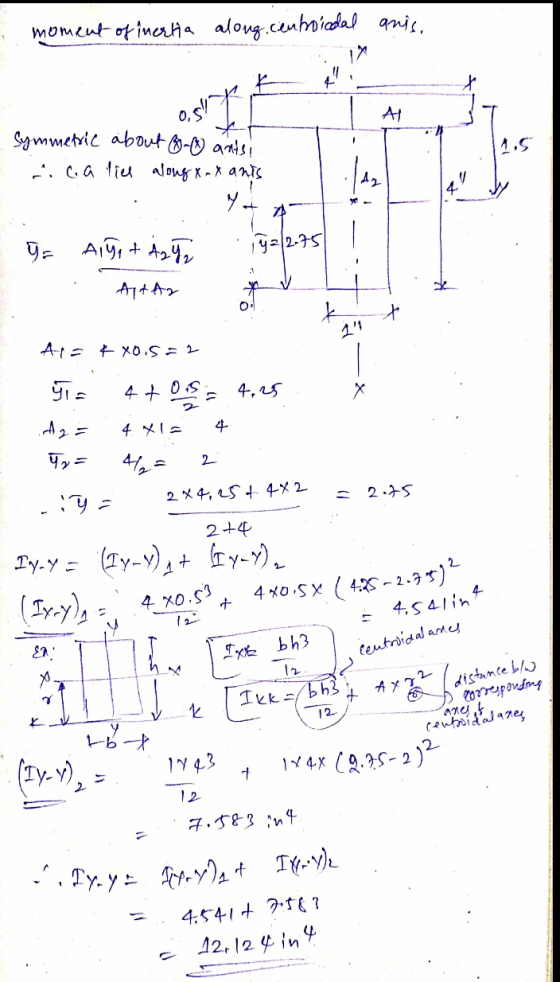

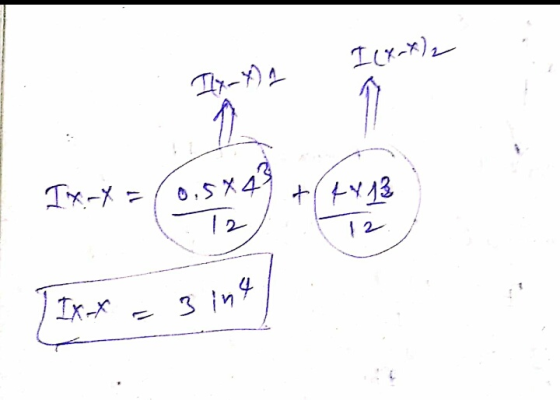

For the composite area shown: a) Determine the moment of inertia about the centroidal y-axis.
For the composite area shown: a) Determine the moment of inertia about the centroidal y-axis. b) Determine the moment of inertia about the centroidal x-axis.
Determine the Moment of Inertia Ix and Iy of the composite cross section about the centroidal x and y axes. Parallel Axis Theorem I = I + Ad2
Determine the Moment of Inertia Ix and Iy of the composite cross section about the centroidal x and y axes. Parallel Axis Theorem I = I + Ad2 HINT: 1st find the composite centroidal x and y axes, 2nd find the distance from the centroids of each section to the new composite centroidal axis, 3rd calculate the centroidal Ix and ly and areas using formulas for common shapes, 4th use the parallel axis theorem to calculate the moment of inertia. Also find...
(10 points) Determine the moment of inertia of the composite beam about the centroidal x and...
(10 points) Determine the moment of inertia of the composite beam about the centroidal x and y axis. Hint: You need to locate the centroid of the composite area. You can use the tables in Appendix B and C. Then, using the same tables and parallel axis theorem you can calculate the moment of inertia about the centroidal axes. 20 in Ism 5 in W10x54 Note: The drawing is not to scale. is the centerline symbol Problem 1
Locate the centroid of the composite cross-sectional area shown in the figure below. Also, determine the moments of inertia for the area about its x’and y' centroidal axes.
Locate the centroid of the composite cross-sectional area shown in the figure below. Also, determine the moments of inertia for the area about its x’and y' centroidal axes. y=y' Note: all dimensions in (mm).
Statics 3. For the following composite area shown below. Shaded regions have material while white regions...
Statics
3. For the following composite area shown below. Shaded regions have material while white regions are empty. Include proper units. a. Find the location of the centroid measured from the shown X and Y axes. b. Calculate the moment of inertia and radius of gyration about the indicated axes Yc centroidal Ixe = bh?/12 and lyc = hb?/12 h Xc b Yc centroidal Ixe = r4/4 and Iye = 1r4/4 Xc ka nga X- Y- 8" (5 points) (5...
3. For the following composite area shown below. Shaded regions have material while white regions are...
3. For the following composite area shown below. Shaded regions have material while white regions are empty. Include proper units. a. Find the location of the centroid measured from the shown X and Y axes. b. Calculate the moment of inertia and radius of gyration about the indicated axes Yc centroidal Ixe = bh?/12 and Iye = hb/12 h Xc b Yc centroidal Ixe = 1 r*/4 and lye - r*/4 Xc KX - Ky = Lt 2" 6" X=...
Determine the moment of inertia of the beam's cross sectional area about the centroidal x and y axes.
Determine the moment of inertia of the beam's cross sectional area about the centroidal x and y axes.
Statics problem Problem 09.036 - Moment of inertia of complex composite Determine the moments of inertia...
Statics problem
Problem 09.036 - Moment of inertia of complex composite Determine the moments of inertia of the shaded area shown with respect to the x and y-axes. Given a = 80 mm. 125 mm 250 mm 125 mm The moment of inertia with respect to the x-axis is * 106 mm 4 The moment of inertia with respect to the y-axis is Х 106 mm4.
3. For the following composite area shown below. Shaded regions have material while white regions are...
3. For the following composite area shown below. Shaded regions have material while white regions are empty. Include proper units. a. Find the location of the centroid measured from the shown X and Y axes. b. Calculate the moment of inertia and radius of gyration about the indicated axes fYc centroidal Ixc=bh3/12 and lyc = hb3/12 h Xc b 4Yc centroidal Ixe = 1 r*/4 and Iyo = r4/4 Xc Kx = = TEM Ky = { 6" X- (5...
An area is defined by two curves y = x and y = x2 as shown...
An area is defined by two curves y = x and y = x2 as shown below. (a) (2 pt) Define vertical and horizontal infinitesimal elements. (b) (1 pt) Find the total area. (c) (2 pts) Calculate the x- and y-coordinates of the centroid C. (d) (2 pts) Calculate area moments of inertia about x and y axes (Ix and Iy) first. (e) (2 pts) Apply the parallel axis theorem to find area moments of inertia about the centroidal axis...
(10 points) Determine the moment of inertia of the composite beam about the centroidal x and y axis. Hint: You need to locate the centroid of the composite area. You can use the tables in Appendix B and C. Then, using the same tables and parallel axis theorem you can calculate the moment of inertia about the centroidal axes. 20 in Ism 5 in W10x54 Note: The drawing is not to scale. is the centerline symbol Problem 1
Statics
3. For the following composite area shown below. Shaded regions have material while white regions are empty. Include proper units. a. Find the location of the centroid measured from the shown X and Y axes. b. Calculate the moment of inertia and radius of gyration about the indicated axes Yc centroidal Ixe = bh?/12 and lyc = hb?/12 h Xc b Yc centroidal Ixe = r4/4 and Iye = 1r4/4 Xc ka nga X- Y- 8" (5 points) (5...
3. For the following composite area shown below. Shaded regions have material while white regions are empty. Include proper units. a. Find the location of the centroid measured from the shown X and Y axes. b. Calculate the moment of inertia and radius of gyration about the indicated axes Yc centroidal Ixe = bh?/12 and Iye = hb/12 h Xc b Yc centroidal Ixe = 1 r*/4 and lye - r*/4 Xc KX - Ky = Lt 2" 6" X=...
Statics problem
Problem 09.036 - Moment of inertia of complex composite Determine the moments of inertia of the shaded area shown with respect to the x and y-axes. Given a = 80 mm. 125 mm 250 mm 125 mm The moment of inertia with respect to the x-axis is * 106 mm 4 The moment of inertia with respect to the y-axis is Х 106 mm4.
3. For the following composite area shown below. Shaded regions have material while white regions are empty. Include proper units. a. Find the location of the centroid measured from the shown X and Y axes. b. Calculate the moment of inertia and radius of gyration about the indicated axes fYc centroidal Ixc=bh3/12 and lyc = hb3/12 h Xc b 4Yc centroidal Ixe = 1 r*/4 and Iyo = r4/4 Xc Kx = = TEM Ky = { 6" X- (5...
