Problem#3. Find the ac steady state voltage Vo(t), if Vgi= 10Cos (5000t + 53.13%) and Vg2=...

Question

Question

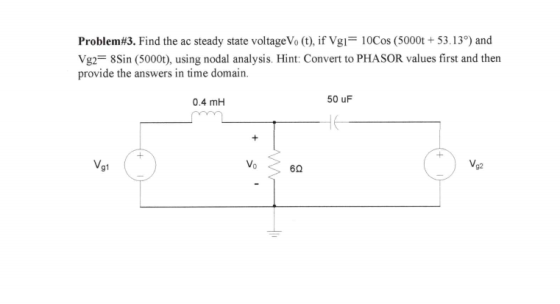

Problem#3. Find the ac steady state voltage Vo(t), if Vgi= 10Cos (5000t + 53.13%) and Vg2= 8Sin (5000t), using nodal analysis

engineering Electrical-Engineering

Answer 1

Answer #1

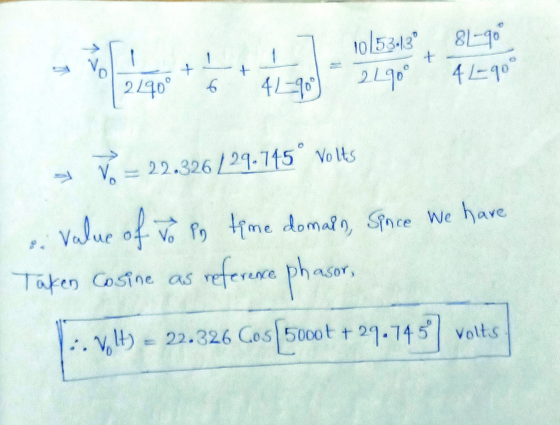

costut) as Reference phasor. Giver Circuit , Taking I w = 5000r/s 0.4mH 50 MF nom - H +42 Voor n 12 mg = 10 cos (5006 +53.13

Answer 2

Similar Homework Help Questions

Use the node-voltage method to find the steady-state expression for vo(t) in the circuit in (Figure...

Use the node-voltage method to find the steady-state expression for vo(t) in the circuit in (Figure 1) if vg1= 10 sin(400t+143.13∘)V, vg2= 18.03cos(400t+33.69∘)V. Write the steady-state expression for vo(t) as vo=Vocos(ωt+ϕ), where −180∘<ϕ≤180∘. Find the numerical value of Vo. Find the numerical value of ϕ. Find the numerical value of ω. 50 mH 1500
Use the node-voltage method to find the steady-state expression for vo(t) in the circuit in (Figure...

Use the node-voltage method to find the steady-state expression for vo(t) in the circuit in (Figure 1) if vg1= 19 sin(400t+143.13∘)V, vg2= 18.03cos(400t+33.69∘)V. Write the steady-state expression for vo(t) as vo=Vocos(ωt+ϕ), where −180∘<ϕ≤180∘. EE 211/EE 212 FA19 Circuits Analysis for Engineers KEE 211/212 HW #10 -- Impedances, Sinusoidal Steady State Analysis Problem 9.57 PSpicelMultisim Use the node-voltage method to find the steady-state expression for (t) in the circuit in (Figure 1) if gl19 sin(400t143.13°) V. g218.03 cos(400t 33.69o) V. Write...
Use the node-voltage method, find the steady-state expression for vo (t) in the following circuit if...

Use the node-voltage method, find the steady-state expression for vo (t) in the following circuit if v,(t) 20 cos(5000t +60) V and v2 (t)10sin(50001) V 0.8mH 8S2 it40uF

Problem #7) Perform a steady-state AC phasor analysis of the circuit shown below in order to...

Problem #7) Perform a steady-state AC phasor analysis of the circuit shown below in order to determine the RMS phasor values of the source current I, and the resistor voltage V, as shown in the figure, along with the value of the reactive power Qs produced by the voltage source: He v(t)=2.277-sin(0-t) 0=27. f ſ 60F f = 60 Hz vo 210 mH3 son Qs - - VARS
14. Problem For the circuit in figure below, find the steady-state output voltage vo (t). The inp...

14. Problem For the circuit in figure below, find the steady-state output voltage vo (t). The input signal is v (t) and C = 5 μF 4-2 cos 100t, R 1 kΩ Do C R 12 U) 14. Problem For the circuit in figure below, find the steady-state output voltage vo (t). The input signal is v (t) and C = 5 μF 4-2 cos 100t, R 1 kΩ Do C R 12 U)
1. A resistor R and capacitor care connected in series with an AC voltage source with...

1. A resistor R and capacitor care connected in series with an AC voltage source with frequency f and maximum voltage Vo. a. Find the complex impedance (in the form Z = R + jX). If the impedance is written in polar form (Z = Zejº), find expressions for Z and Ⓡ. Write your answers in terms of the variables R, C, and o(= 21f). b. If the voltage source is described by the phasor V = V, ejwt, and...

please show solution to 4.7 Calculate the peak value of the voltage across the inductor in...

please show solution to 4.7 Calculate the peak value of the voltage across the inductor in figure 4.7(a), assuming Vo= 10 V, a 2t x 103 s, R= 1 2, L 25 mH, and C 1 uF. 4.6 Calculate the phase of the voltage across the inductor relative to the source in figure 4.7(a) for the values given in problem 4.6 4.7 90 Sinusoldal Circuits circuit-reducti to linear sinusoidal theorems for dc circuits can be applied cuits if the impedances...
