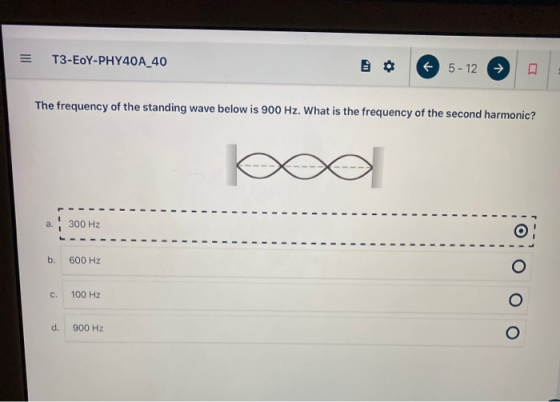

T3-EOY-PHY40A_40 5-12 → The frequency of the standing wave below is 900 Hz. What is the...

Question

Question

science Advanced-Physics

Answer 1

Answer #1

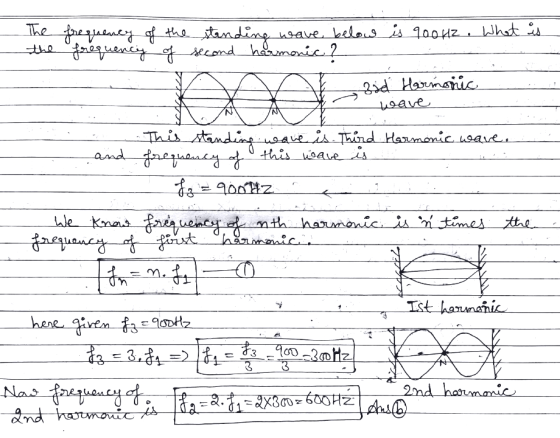

The frequency of the standing wave, below is 90042 . What is the frequency of second harmonic? sid Harmonic जिला wave This st

Answer 2

Similar Homework Help Questions

Question 20 If 300 Hz is the fundamental frequency of a standing wave on a string,...

Question 20 If 300 Hz is the fundamental frequency of a standing wave on a string, what is the frequency of the 2nd harmonic? 100 Hz 150 Hz 300 Hz 600 Hz 900 Hz
The animation below shows a representation of a particular longitudinal standing wave that is set up...

The animation below shows a representation of a particular longitudinal standing wave that is set up in a pipe which is open at both ends. A somewhat simpler transverse representation of the standing wave is shown in red, above the pipe. The speed of sound is 340 m/s, and the frequency of the standing wave is 720 Hz. The animation shows the wave in slow motion. the length of the pipe is .708 m (b) What is the fundamental frequency...
2. [1pt] A standing sound wave in a hollow tube is shown below What is the...

2. [1pt] A standing sound wave in a hollow tube is shown below What is the harmonic number for this mode of oscillation? You only have 2 tries! Answer Incorrect, ONE try left!! Submit All Answers Last Answer: S 3. [lpt] If the frequency of this standing wave is 278 Hz, what is the fundamental frequency of the tube? Use 336 m/s for the phase speed of sound in air. Submit All Answers Answer

A standing wave on a string that is fixed at both ends has frequency 80.0 Hz....

A standing wave on a string that is fixed at both ends has frequency 80.0 Hz. The distance between adjacent antinodes of the standing wave is 16.0 cm. What is the speed of the waves on the string, in m/s?
The frequency of the standing wave shown in the figure(Figure 1) is 235 Hz. Part A...

The frequency of the standing wave shown in the figure(Figure 1) is 235 Hz. Part A What is the fundamental frequency of this pipe? IVO AE ? si = Hz Submit Request Answer Figure < 1 of 1 > Part B What is the length of the pipe? IVO AED ? L = m Submit Request Answer
6. The standing wave is formed in a tube of length L which is open at...

6. The standing wave is formed in a tube of length L which is open at both ends. The shape of this standing wave is shown in the picture, whereas the frequency of the 5th harmonic is 450 Hz. Speed of sound is 343 m/s. Find (a) length L of the tube, and (b) harmonic’s number n; (c) wavelength, and (d) frequency of the wave shown in the picture.

(d) A standing wave is described by equation of the form an t+) y Ysin(kx)sin( The wave has a frequency of 11.5 Hz and...

(d) A standing wave is described by equation of the form an t+) y Ysin(kx)sin( The wave has a frequency of 11.5 Hz and a wavelength of 1.30 m. At t = 0 the displacement at the antinodes is given by y = Y= 0.125 m. What is the displacement at A/8 when t = 30.0 ms? the point x (d) A standing wave is described by equation of the form an t+) y Ysin(kx)sin( The wave has a frequency...
Part B & C please. A standing wave is set up in a 200-cm string fixed...

Part B & C please. A standing wave is set up in a 200-cm string fixed at both ends. The string vibrates in 5 distinct segments when driven by a 120-Hz source. (a) What is the wavelength of the wave? a. 10 cm b. 20 cm c. 40 cm d. 80 cm e. 100 cm What is the fundamental frequency for this string? a. 48 Hz b. 12 Hz c. 24 Hz d. 86 Hz e. 240 Hz
What is the frequency of a point in space on the standing wave? A /2 the...

What is the frequency of a point in space on the standing wave? A /2 the incident frequency B the same as the incident frequency C twice the incident frequency D depends on the wave speed,v E depends on other factors

SECTION A: MULTIPLE-CHOICE QUESTIONS A standing wave is oscillating at 950 Hz on a string, as...

SECTION A: MULTIPLE-CHOICE QUESTIONS A standing wave is oscillating at 950 Hz on a string, as shown in the figure. What is the wave speed? 60 cm c)200 m/s a)380 m/s b) 190 m/s d) 570 m/s e) 460 m/s 2. The graph below represents a particle in simple harmonic motion. What is the phase constant,$ -4 b)-209 rad c)1.05 rad 209 rad e-1.05 rad a) o 3. A diffraction grating with 4000 lines/cm is illuminated by light from the...
