A new experiment is created with the screen at a distance of 1.9 m from the...

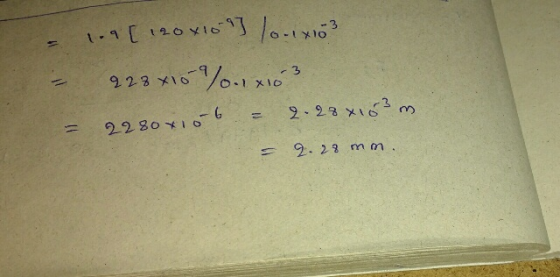

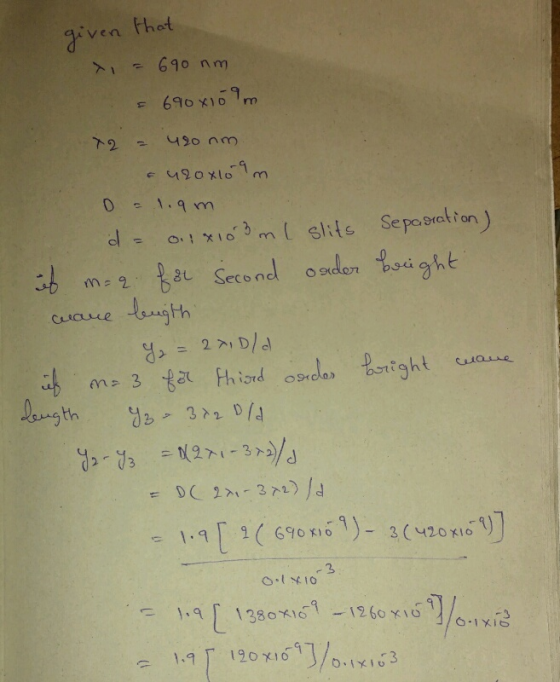

A new experiment is created with the screen at a distance of 1.9 m from the slits (with spacing 0.1 mm). What is the distance between the second order bright fringe of light with l = 690 nm and the third order bright fringe of light with l = 420 nm? (Give the absolute value of the smallest possible distance between these two fringes: the distance between bright fringes on the same side of the central bright fringe.)
Homework Answers
Add Answer to:
A new experiment is created with the screen at a distance of 1.9
m from the...
2) A new experiment is created with the screen at a distance of 1.9 m from...
2) A new experiment is created with the screen at a distance of 1.9 m from the slits (with spacing 0.11 mm). What is the distance between the second order bright fringe of light with 1-683 nm and the third order bright fringe of light with 1 = 419 nm? (Give the absolute value of the smallest possible distance between these two fringes: the distance between bright fringes on the same side of the central bright fringe.) 1x = 1882...
1) A double-slit experiment is set up using red light (A = 701 nm). A first...
1) A double-slit experiment is set up using red light (A = 701 nm). A first order bright fringe is seen at a given location on a screen. What wavelength of visible light (between 380 nm and 750 nm) would produce a dark fringe at the identical location on the screen? A = nm Submit You currently have 1 submissions for this question. Only 10 submission are allowed. You can make 9 more submissions for this question. 2) A new...
1) A double-slit experiment is set up using red light (A = 703 nm). A first...
1) A double-slit experiment is set up using red light (A = 703 nm). A first order bright fringe is seen at a given location on a screen. What wavelength of visible light (between 380 nm and 750 nm) would produce a dark fringe at the identical location on the screen? A = nm Submit You currently have 0 submissions for this question. Only 10 submission are allowed. You can make 10 more submissions for this question. 2) A new...
In a Young's double slit experiment a screen is placed 85.0 cm from two slits that...
In a Young's double slit experiment a screen is placed 85.0 cm from two slits that have a spacing of 0.300 mm. The slits are illuminated with coherent light with a wavelength of 540 nm. (a) What is the distance between the first and third-order dark fringes? (b) What is the distance between the first-order bright fringe and the second order dark fringe?
A Young's double slit experiment has the screen placed 2.6 m from the double slits where...
A Young's double slit experiment has the screen placed 2.6 m from the double slits where the spacing between the two slits is 0.03 mm. 16) The angle that locates the second-order bright fringe is 2.0degree. Find the wavelength of the light? 17) Find the distance y on the screen between the central bright fringe and the second-order bright fringe.
(6) With the aid of an appropriate diagram, show that for Young's double slit experiment, y...
(6) With the aid of an appropriate diagram, show that for Young's double slit experiment, y = 2. D/a, where 2 is the wavelength of the source, a is the slit separation, D is the distance between the slits and the screen, and y is the separation between the central bright fringe and the first order fringe. (c) In Young's double slit experiment, the slit spacing was 0.56 mm and the distance across the four-fringe spacing was 3.6 mm when...
In a double-slit experiment the distance between slits is d = 4 mm and the distance...
In a double-slit experiment the distance between slits is d = 4 mm and the distance to the screen is 1.4 m. There are two interference patterns on the screen: one due to light with λ1=470 nm and another due light with λ2=610 nm. What is the separation between third order (m = 3) bright fringes of the two patterns?
77) In the two-slit experiment, the distance between the slits and the screen is 1.1 m...
77) In the two-slit experiment, the distance between the slits and the screen is 1.1 m and the distance between the slits is 0.040 mm. If the first-order bright fringe is measured to be 3.4 cm from the centerline, what is the distance between the adjacent bright fringes? A) 5.1 cm B) 3.4 cm C) 7.0 cm D) 1.7 cm E) 6.8 cm
In a double-slit experiment the distance between slits is 5.8 mm and the slits are 2.0...
In a double-slit experiment the distance between slits is 5.8 mm and the slits are 2.0 m from the screen. Two interference patterns can be seen on the screen: one due to light with wavelength 490 nm, and the other due to light with wavelength 565 nm. What is the separation on the screen between the third-order (m = 3) bright fringes of the two interference patterns? ________________m
Question 1 (1.5 points) This assignment is set up for sequential assessment. Complete each question and...
Question 1 (1.5 points) This assignment is set up for sequential assessment. Complete each question and submit the answer before moving on to the next question. Correct answers for each question will be made available once the maximum number of attempts have been made for each submission. Double Slit Interference 1 Double Slit Interference Double Slit Screen Interference y=Ltane y 10 y = 0 L (destructive). L bright fringes: sine m=0, 11, 12,...(constructive) Dark fringes: above central: sin 8 =...
2) A new experiment is created with the screen at a distance of 1.9 m from the slits (with spacing 0.11 mm). What is the distance between the second order bright fringe of light with 1-683 nm and the third order bright fringe of light with 1 = 419 nm? (Give the absolute value of the smallest possible distance between these two fringes: the distance between bright fringes on the same side of the central bright fringe.) 1x = 1882...
1) A double-slit experiment is set up using red light (A = 701 nm). A first order bright fringe is seen at a given location on a screen. What wavelength of visible light (between 380 nm and 750 nm) would produce a dark fringe at the identical location on the screen? A = nm Submit You currently have 1 submissions for this question. Only 10 submission are allowed. You can make 9 more submissions for this question. 2) A new...
1) A double-slit experiment is set up using red light (A = 703 nm). A first order bright fringe is seen at a given location on a screen. What wavelength of visible light (between 380 nm and 750 nm) would produce a dark fringe at the identical location on the screen? A = nm Submit You currently have 0 submissions for this question. Only 10 submission are allowed. You can make 10 more submissions for this question. 2) A new...
In a Young's double slit experiment a screen is placed 85.0 cm from two slits that have a spacing of 0.300 mm. The slits are illuminated with coherent light with a wavelength of 540 nm. (a) What is the distance between the first and third-order dark fringes? (b) What is the distance between the first-order bright fringe and the second order dark fringe?
A Young's double slit experiment has the screen placed 2.6 m from the double slits where the spacing between the two slits is 0.03 mm. 16) The angle that locates the second-order bright fringe is 2.0degree. Find the wavelength of the light? 17) Find the distance y on the screen between the central bright fringe and the second-order bright fringe.
(6) With the aid of an appropriate diagram, show that for Young's double slit experiment, y = 2. D/a, where 2 is the wavelength of the source, a is the slit separation, D is the distance between the slits and the screen, and y is the separation between the central bright fringe and the first order fringe. (c) In Young's double slit experiment, the slit spacing was 0.56 mm and the distance across the four-fringe spacing was 3.6 mm when...
77) In the two-slit experiment, the distance between the slits and the screen is 1.1 m and the distance between the slits is 0.040 mm. If the first-order bright fringe is measured to be 3.4 cm from the centerline, what is the distance between the adjacent bright fringes? A) 5.1 cm B) 3.4 cm C) 7.0 cm D) 1.7 cm E) 6.8 cm
Question 1 (1.5 points) This assignment is set up for sequential assessment. Complete each question and submit the answer before moving on to the next question. Correct answers for each question will be made available once the maximum number of attempts have been made for each submission. Double Slit Interference 1 Double Slit Interference Double Slit Screen Interference y=Ltane y 10 y = 0 L (destructive). L bright fringes: sine m=0, 11, 12,...(constructive) Dark fringes: above central: sin 8 =...
