Homework Answers

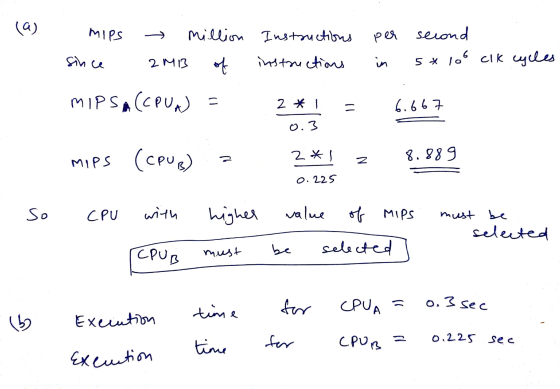

Per policy, I can answer only one question at a time. Solution
to your first question is given below. First we will calculate the
execution time for 2M instructions for both CPUs respectively. CPU
with higher value of MIPS must be selected.
Add Answer to:
CASE II AziTech is considering the design of a new CPU for its new model of...
AziTech is considering the design of a new CPU for its new model of computer systems...

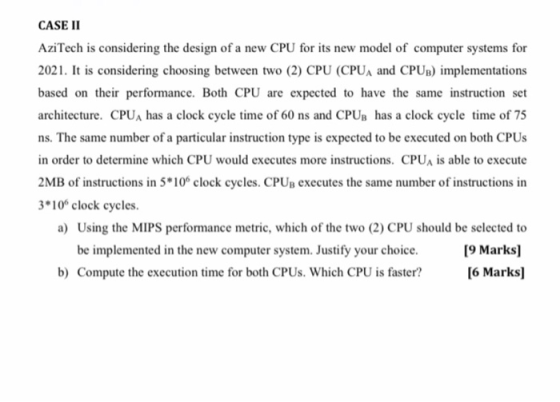

AziTech is considering the design of a new CPU for its new model of computer systems for 2021. It is considering choosing between two (2) CPU (CPUA and CPUB) implementations based on their performance. Both CPU are expected to have the same instruction set architecture. CPUA has a clock cycle time of 60 ns and CPUB has a clock cycle time of 75 ns. The same number of a particular instruction type is expected to be executed on both CPUs...
