b) if the steel cable's temperature is increased by 25°C, determine the reaction at D.
note: answer the one in the picture as a).
Homework Answers
Add Answer to:
b) if the steel cable's temperature is increased by
25°C, determine the reaction at D.
note:...
Problem 3 The length of the 2 mm diameter steel wire CD has been adjusted so...

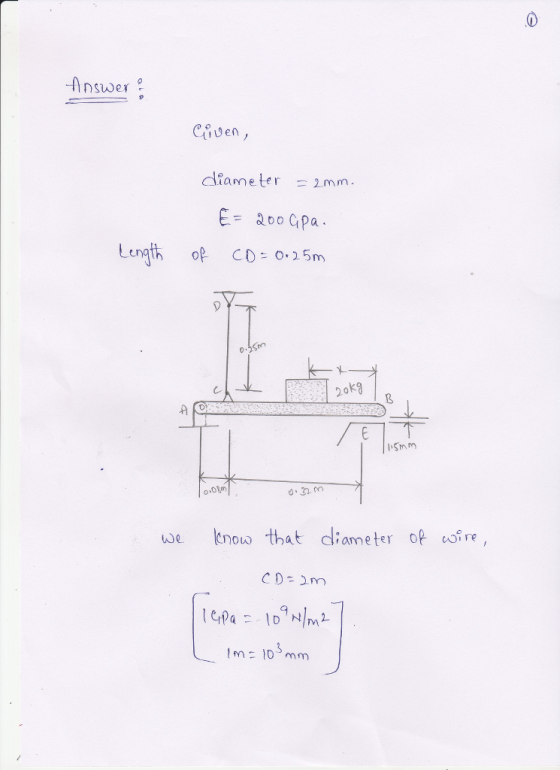

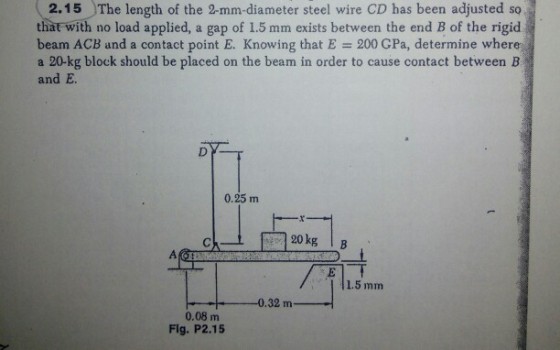

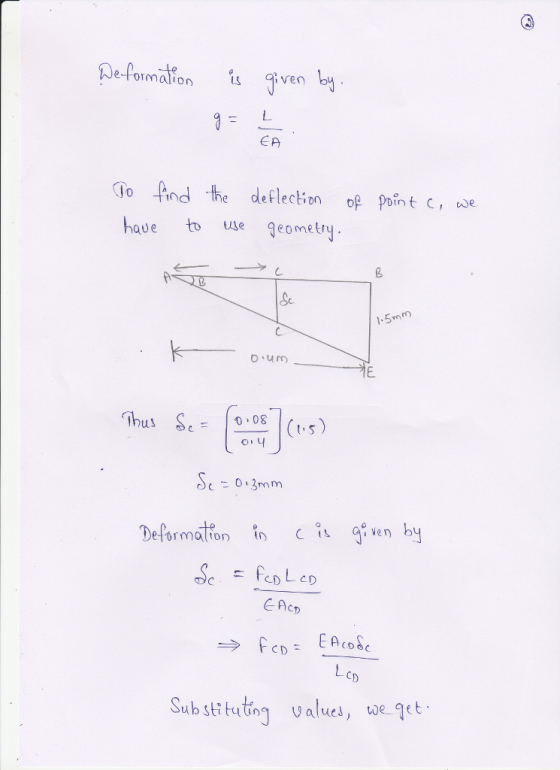

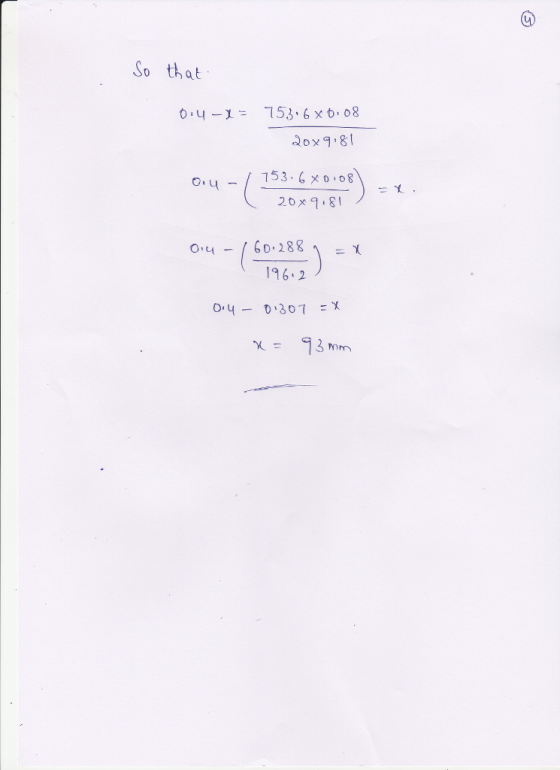

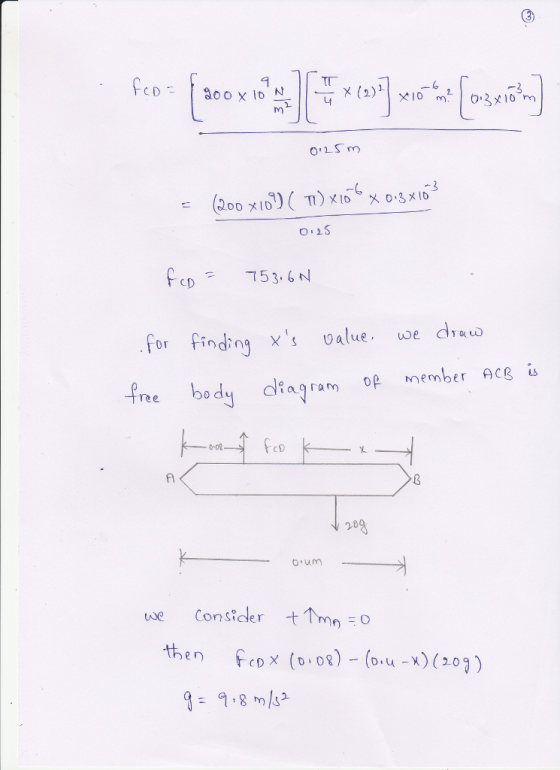

Problem 3 The length of the 2 mm diameter steel wire CD has been adjusted so that with no load applied, a gap of 1.5 mm exists between the end B of the rigid beam ACB and a contact point E. Knowing that E= 200 GPa, determine the distance x where a 20 kg block should be placed on the beam in order to cause contact between B and E. 250 mm 20 kg B 1.5 mm 80 mm
A rigid beam AB is supported by a hinge at A and by a steel wire...
A rigid beam AB is supported by a hinge at A and by a steel wire CD, 2.50mm in diameter and 300mm long, as shown. With no load applied on the beam, the end B is 2mm above the contact point E. Determine the elongation of CD just to touch point E. For the steel wire, E=200GPa. Express your answer in mm and use two decimal places. D W = 40 kg 44 Steel wire 2.5 mm E=200 GPa 300...
2- Knowing that a 0.5-mm gap exists between the rods shown below when the temperature is...
2- Knowing that a 0.5-mm gap exists between the rods shown below when the temperature is 20 °C, determine: (a) The temperature at which the normal stress in the stainless steel rod will be o = -150 MPa, (b) The corresponding exact length of the stainless steel rod 0.5 mm 300 mm- - 250 mm A В Aluminum Stainless steel A = 2000 mm2 E = 70 GPa 23 x 10-/C A = 800 mm2 E = 190 GPa 18...
Determine the support reaction at C when an axial force of P reaction at C when...
Determine the support reaction at C when an axial force of P reaction at C when an axial force of 40 05 kN is applied . The 2014-T6 aluminum rod AC is reinforced with the firmly bonded A992 steel tube BC. (Figure 1) When no load is applied to the assembly, the gap between end C and the rigid support is 0.5 mm Express your answer to three significant figures and include a riate units Units CVatue Figure < 1of1...
Ends A and D of the two solid steel shafts AB and CD are fixed, while ends B and C are connected...
Ends A and D of the two solid steel shafts AB and CD are fixed, while ends B and C are connected to gears as shown. Knowing that a 4kN-m torque T is applied to gear B,determine the maximum shearing stress (a) in shaft AB, (b) in shaft CD.
The assembly consists of two red brass C83400 copper rods AB and CD of diameter 30 mm, a stainless 304 steel alloy rod EF of diameter 40 mm, and a rigid cap G. The supports at A, C and F are rigid.
The assembly consists of two red brass C83400 copper rods ABAB and CDCD of diameter 30 mmmm, a stainless 304 steel alloy rod EFEF of diameter 40 mmmm, and a rigid cap GG. The supports at AA, CC and FF are rigid.Modul of elasticy for the copper is EcopperEcopper = 101 GPaGPa. Modul of elasticity for the steel is EsteelEsteel = 193 GPaGPa.(a) Determine the average normal stress developed in the rod ABAB.(b) Determine the average normal stress developed in the rod CDCD.
.. At room temperature (20°C) a 0.5-mm gap exists between the of the rods shown. At...
.. At room temperature (20°C) a 0.5-mm gap exists between the of the rods shown. At a later time when the temperature has reached 140°C, determine (a) the normal stress in the aluminum rod, (b) the change in length of the aluminum rod. (Io 0.5 mm ー250 mm→ Aluminum Stainless steel A=2000min- E = 75 GPa α = 23 × 10-6PC A=soo E= 190 GPa α = 17.3 × 10-6/oC
PRODES 6-120. The o brass (B) and composite beam is made of steel (A) bonded d...
PRODES 6-120. The o brass (B) and composite beam is made of steel (A) bonded d has the cross section shown. If it is subjected kN m, determine the maximum the o a stress in the brass and steel. Also, what is hehmaterial at the seam where they are bonded together? E 100 GPa, Est 200 GPa. 50 mm 200 mm 175 mm Prob. 6-120
Problem 3 The length of the 2 mm diameter steel wire CD has been adjusted so that with no load applied, a gap of 1.5 mm exists between the end B of the rigid beam ACB and a contact point E. Knowing that E= 200 GPa, determine the distance x where a 20 kg block should be placed on the beam in order to cause contact between B and E. 250 mm 20 kg B 1.5 mm 80 mm
A rigid beam AB is supported by a hinge at A and by a steel wire CD, 2.50mm in diameter and 300mm long, as shown. With no load applied on the beam, the end B is 2mm above the contact point E. Determine the elongation of CD just to touch point E. For the steel wire, E=200GPa. Express your answer in mm and use two decimal places. D W = 40 kg 44 Steel wire 2.5 mm E=200 GPa 300...
2- Knowing that a 0.5-mm gap exists between the rods shown below when the temperature is 20 °C, determine: (a) The temperature at which the normal stress in the stainless steel rod will be o = -150 MPa, (b) The corresponding exact length of the stainless steel rod 0.5 mm 300 mm- - 250 mm A В Aluminum Stainless steel A = 2000 mm2 E = 70 GPa 23 x 10-/C A = 800 mm2 E = 190 GPa 18...
Determine the support reaction at C when an axial force of P reaction at C when an axial force of 40 05 kN is applied . The 2014-T6 aluminum rod AC is reinforced with the firmly bonded A992 steel tube BC. (Figure 1) When no load is applied to the assembly, the gap between end C and the rigid support is 0.5 mm Express your answer to three significant figures and include a riate units Units CVatue Figure < 1of1...
.. At room temperature (20°C) a 0.5-mm gap exists between the of the rods shown. At a later time when the temperature has reached 140°C, determine (a) the normal stress in the aluminum rod, (b) the change in length of the aluminum rod. (Io 0.5 mm ー250 mm→ Aluminum Stainless steel A=2000min- E = 75 GPa α = 23 × 10-6PC A=soo E= 190 GPa α = 17.3 × 10-6/oC
PRODES 6-120. The o brass (B) and composite beam is made of steel (A) bonded d has the cross section shown. If it is subjected kN m, determine the maximum the o a stress in the brass and steel. Also, what is hehmaterial at the seam where they are bonded together? E 100 GPa, Est 200 GPa. 50 mm 200 mm 175 mm Prob. 6-120
