Question

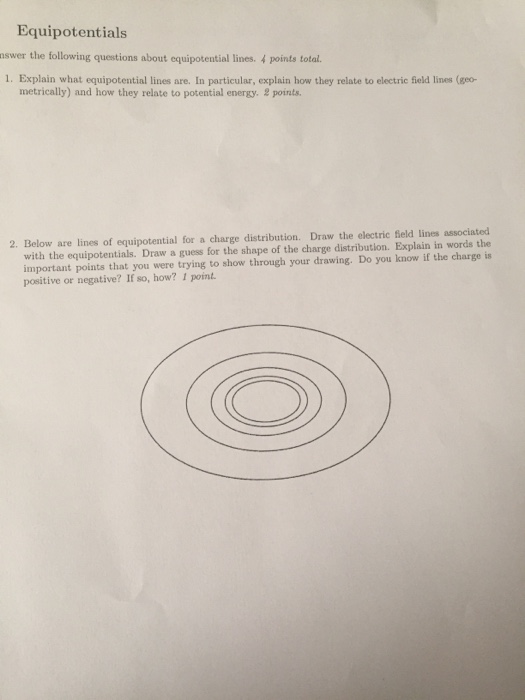

Equipotentials answer the following questions about equipotential lines. 4 points total. 1. Explain what equipotential lines are. In particular, explain how they relate to electric field lines (geo- metrically) and how they relate to potential energy. 2 points. 2. Below are lines of equipotential for a charge distribution. Draw the electric field lines associated with the equipotentials. Draw a guess for the shape of the charge distribution. Explain in words the important points that you were trying to show through your drawing. Do you know if the charge is positive or negative? If so, how? I point.

Answer 1

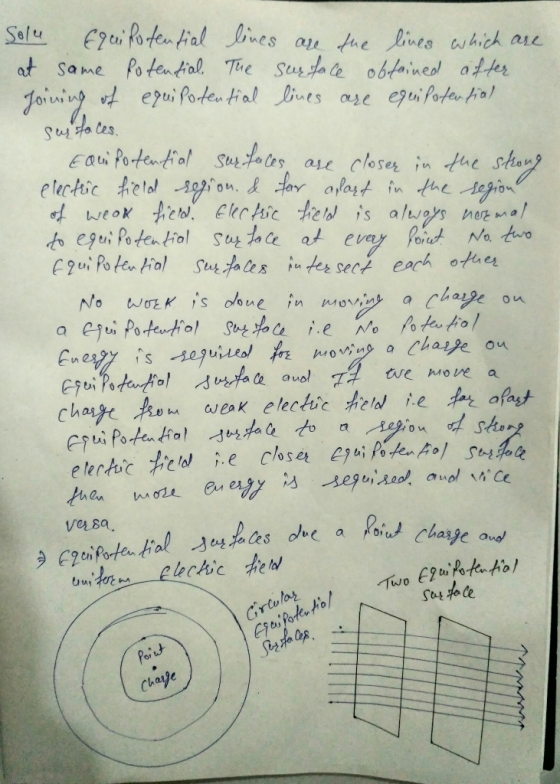

Solu Equipotential lines are the lines which are at same Rotential. The surface obtained after Joining of equipotential lines are equipotential surfaces. Eau Potential surfaces are closer in the strong electric field region. & far apart in the region of weak field. Electric field is always normal to equipotential surface at every point. No two Equipotential surfaces intersect each other. No work is done in moring a charge on a Equi potential surface ie No Potential Energy is required for moving a charge on Equipotential surface and If we move a charge from weak electric field il far apart squipotential surface to a region of strong electric field i.e closer Equipotenol surfall Але, мои ём их д ея. Хоо, ама се versa. due a due a point, point charge and & Equipotential surfaces unifer Electric field Two Equipotential Surface Circular Eraipotential Surfaces Charge

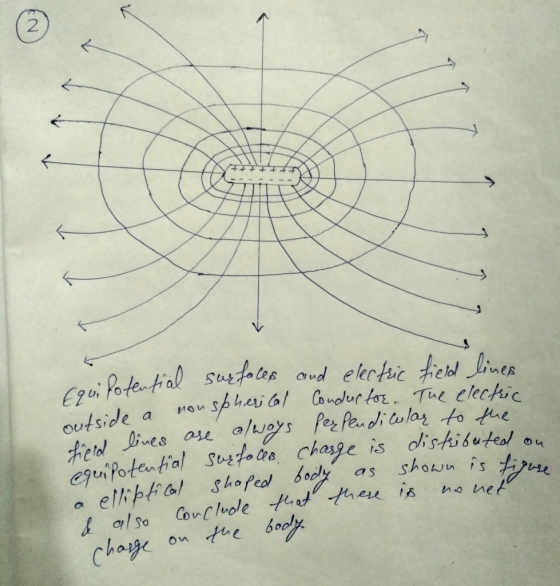

K / nonspherical outside a cauilotential surfaces and electric field lines a nonspherical Conductor. The electric w lines are always ferpendicular to the genpotential surfaces Charge is distributed on a elliptical shaped body as shown is figuer & also conclude that there is no neto the body charge on
TThis is solution of above question. sry for rough diagram. make sure you understand this. Thankz
