I need some explanation for this question. What are the equipotential lines? Draw electric field lines...
I need some explanation for this question.

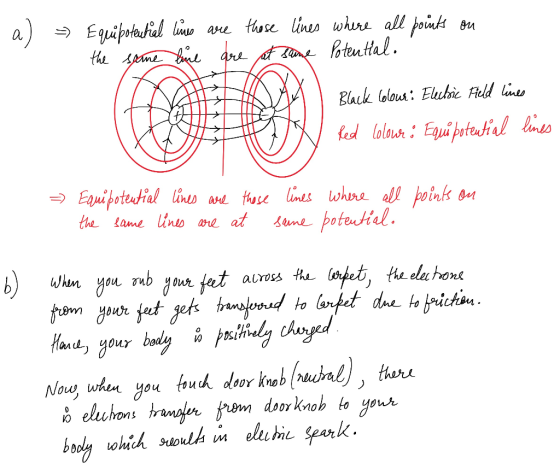

What are the equipotential lines? Draw electric field lines and equipotential lines around a positive and around a negative charge, if both opposite charges are located close to each other?
When you shuffle your feet across the carpet and then reach your hand to a nearby doorknob, you may create a spark between your hand and the door knob. Explain the Physics behind it in terms of electric potential difference
Homework Answers
Add Answer to:
I need some explanation for this question.
What are the equipotential lines? Draw electric field lines...
uestions for electric field experiment i) Info and draw on in it three more equipotential lines:...
uestions for electric field experiment i) Info and draw on in it three more equipotential lines: one at the one slightly to the right of center and another slightly o 1. Use Fig. 5.6 center of the dipole, to the left of center sli Figure 5.6: The dashed lines are field lines for a dipole configuration. At each point it shows the direction that a positive probe-charge would follow if left alone there. The concentric lines around the poles are...
Physics Prelab: Electric Field Explain what equipotential lines are? What is the work done when a...
Physics Prelab: Electric Field Explain what equipotential lines are? What is the work done when a charge moves along an equipotential line? How does one find the electric field when you know the voltage change between two points and the distance between those two points? Go to the website on cell phones and explain how your finger is able to interact with the phone using physics principles. What is the electric field of a 18 pC charge at a distance...
In the image below, draw representative electric field vectors and equipotential lines for a negative charge....
In the image below, draw representative electric field vectors
and equipotential lines for a negative charge. Label the highest
and lowest equipotential lines. You will be graded on thedirection,
orientation, and spacing of your lines.
In the image below, draw representative electric field vectors and equipotential lines (plane) for this parallel...
In the image below, draw representative electric field vectors and equipotential lines (plane) for this parallel plate capacitor. Label the highest and lowest equipotential lines. You will be graded on the direction, orientation, and spacing of your lines. +
(21) In the image below, draw representative electric field vectors and equipotential lines (plane) for this...
(21) In the image below, draw representative electric field vectors and equipotential lines (plane) for this parallel plate capacitor. Label the highest and lowest equipotential lines. You will be graded on the direction, orientation, and spacing of your lines.
I only need question 3. Questions: Compare the electric field lines drawn from this experiment with...
I only need question 3.
Questions: Compare the electric field lines drawn from this experiment with the corresponding graphs in your textbook and explain why there are some differences. 1. t possible for two equipotential lines to intersect? Is it possible for two electric field lines to intersect? Explain. 2. Is i 3) Draw the electric field lines for the following charge distribution. The right-hand side object is a conductor.
Page #4 Physics Il caline lab: Electric Field & Elecric Potential Part I: Electric Field Open...
Page #4 Physics Il caline lab: Electric Field & Elecric Potential Part I: Electric Field Open the PHET simulation "Charges and Fields". Add positive and negative charges as shown in the diagram below. Draw appropriate electric field lines around and in between the two charges. Use the tools available in the software and then draw manually. Where is the electric field the largest? (label the point #1 in your diagram) 2. Where is the electric field equal to zero? (label...
Group Problem Solving II: Drawing electric field lines /15, grading mark this week: Physics 121, University...
Group Problem Solving II: Drawing electric field lines /15, grading mark this week: Physics 121, University of British Columbia, Okanagan Graded by Group Mewbers: 1. (a) On the above graph please draw electric held lines for the distribution of four point charges shown. The central point has charge +3e, the three outer point charges have chargee each. Use four electric fiekd lines for each unit of charge e and inclhde arrows on your electric field line drawings (b) Draw a...
Which of the following statements about electric field lines are true? (choose all that are true)...
Which of the following statements about electric field lines are true? (choose all that are true) a) They are only defined for positive charges. b) They are always tangent to electric field vectors. c) They are always perpendicular to charged surfaces. d) They are a simple way to visualize the electric field vectors. e) None of the above. If a negative charge is placed in an electric field, what direction will it be accelerated? a) In the direction of the...
and using this questions and concepts; what could be a good experimental question and a hypothesis?...
and using this questions and concepts; what could be a
good experimental question and a hypothesis?
1. Consider the following question "You are planning out a route through Physics valley, up Physics Mountain, and back to your starting point Topological Map: Physics Mountain) You want to take the shortest path across the valley and up the mountain, but the summit is impossible to reach given that it turns into vertical cliffs. To enjoy the full view, you decide to hike...
uestions for electric field experiment i) Info and draw on in it three more equipotential lines: one at the one slightly to the right of center and another slightly o 1. Use Fig. 5.6 center of the dipole, to the left of center sli Figure 5.6: The dashed lines are field lines for a dipole configuration. At each point it shows the direction that a positive probe-charge would follow if left alone there. The concentric lines around the poles are...
In the image below, draw representative electric field vectors
and equipotential lines for a negative charge. Label the highest
and lowest equipotential lines. You will be graded on thedirection,
orientation, and spacing of your lines.
In the image below, draw representative electric field vectors and equipotential lines (plane) for this parallel plate capacitor. Label the highest and lowest equipotential lines. You will be graded on the direction, orientation, and spacing of your lines. +
(21) In the image below, draw representative electric field vectors and equipotential lines (plane) for this parallel plate capacitor. Label the highest and lowest equipotential lines. You will be graded on the direction, orientation, and spacing of your lines.
I only need question 3.
Questions: Compare the electric field lines drawn from this experiment with the corresponding graphs in your textbook and explain why there are some differences. 1. t possible for two equipotential lines to intersect? Is it possible for two electric field lines to intersect? Explain. 2. Is i 3) Draw the electric field lines for the following charge distribution. The right-hand side object is a conductor.
Page #4 Physics Il caline lab: Electric Field & Elecric Potential Part I: Electric Field Open the PHET simulation "Charges and Fields". Add positive and negative charges as shown in the diagram below. Draw appropriate electric field lines around and in between the two charges. Use the tools available in the software and then draw manually. Where is the electric field the largest? (label the point #1 in your diagram) 2. Where is the electric field equal to zero? (label...
Group Problem Solving II: Drawing electric field lines /15, grading mark this week: Physics 121, University of British Columbia, Okanagan Graded by Group Mewbers: 1. (a) On the above graph please draw electric held lines for the distribution of four point charges shown. The central point has charge +3e, the three outer point charges have chargee each. Use four electric fiekd lines for each unit of charge e and inclhde arrows on your electric field line drawings (b) Draw a...
and using this questions and concepts; what could be a
good experimental question and a hypothesis?
1. Consider the following question "You are planning out a route through Physics valley, up Physics Mountain, and back to your starting point Topological Map: Physics Mountain) You want to take the shortest path across the valley and up the mountain, but the summit is impossible to reach given that it turns into vertical cliffs. To enjoy the full view, you decide to hike...
