A sphere with a mass of 2.4 grams is attached to a string. An electric field...

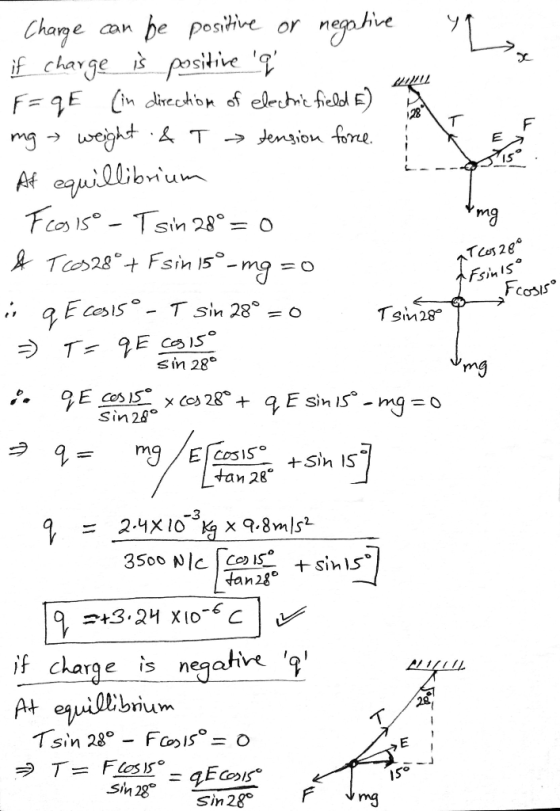

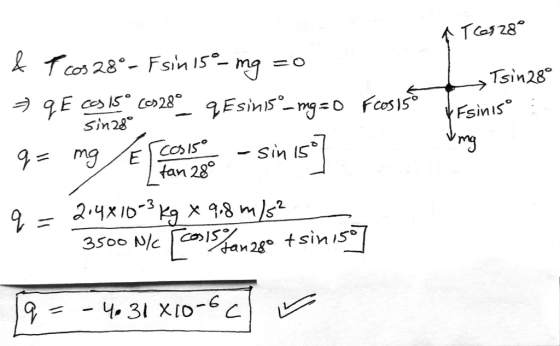

A sphere with a mass of 2.4 grams is attached to a string. An electric field 3500 N/C is activated and points upward to the right at a 15 degree angle above the x-axis. The sphere swings out to a 28 degree angle from the vertical before coming to rest. What is the charge of the sphere?
Homework Answers
Add Answer to:
A sphere with a mass of 2.4 grams is attached to a string. An
electric field...
A small sphere is suspended from a string in a uniform electric field shown by arrows,...
A small sphere is suspended from a string in a uniform electric field shown by arrows, making an angle O=35° with the vertical. If the mass of the sphere is 3 grams and it has a charge of 8 nC, what is the magnitude of the electric field?
A charged sphere is suspended from a string in a uniform electric field directed horizontally. There...
A charged sphere is suspended from a string in a uniform electric field directed horizontally. There is an electric force on the sphere to the right and a gravitational force pointing downward. As a result, the sphere hangs at an angle theta from the vertical. Combinations of sphere mass and electric charge are listed in the chart for four cases, all in the same uniform electric field. Rank the angle theta that the string forms with the vertical for these...
A point mass of mass m=0.0500 grams and unknown charge hangs on a vertical string. When...
A point mass of mass m=0.0500 grams and unknown charge hangs on a vertical string. When a uniform electric field, E=( 6.00 i - 3.00 j) N/C, is turned on the point mass swings to an angle of 30 degrees off the vertical to the right side. Find the Polarity and Magnitude of the Charge
0 A small sphere is suspended from a string in a uniform electric field shown by...
0 A small sphere is suspended from a string in a uniform electric field shown by arrows, making an angle 0=25° with the vertical. If the mass of the sphere is 3 grams and it has a charge of 4 nC, what is the magnitude of the electric field? 3.43 x 106 N/C 3.43 N/C 0.35 N/C 15.8 x 106 N/C O 3.5 x 105 N/C 15.8 N/C
e A small sphere is suspended from a string in a uniform electric field shown by...
e A small sphere is suspended from a string in a uniform electric field shown by arrows, making an angle 0=40° with the vertical. If the mass of the sphere is 4 grams and it has a charge of 9 nC, what is the magnitude of the electric field? 5.19 N/C 3.65 N/C 5.19 x 106 N/C O 3.73 x 105 N/C O0.373 N/C O 3.65 x 106 N/C
Please only round for the final answer A metal sphere hangs from a string and has...
Please only round for the
final answer
A metal sphere hangs from a string and has 4 kg of mass. The sphere has a charge of +2.7 μC, A uniform electric field is turned on and directed to the righ (a) Which way does the sphere move? left right (b) What is the electric force on the metal sphere if the magnitude of the electric field is 10 N/C? (c) When the sphere reaches equilibrium, what is the angle that...
A charged sphere of mass 2.8 X 104 kg is suspended from a string. An electric...
A charged sphere of mass 2.8 X 104 kg is suspended from a string. An electric force acts horizontally on the sphere so that the string makes an angle of 33° with the vertical when at rest. Find (a) the magnitude of the electric force and (b) the tension in the string.
8) A charge of +2 micro-coulombs is placed in a uniform electric field and electric force...
8) A charge of +2 micro-coulombs is placed in a uniform electric field and electric force acting on the charge is 14.7 Newtons in the +x direction. What is the magnitude of the electric field in x 106 N/C and in what direction is it? Indicate the -x direction, by including a negative sign. 9) A positive charge of 9 micro-coulombs with some mass is placed on a string and placed in a uniform electric field of 4.1 x 106...
A 28 mC charge is suspended vertically from a string connected to the ceiling. When a...
A 28 mC charge is suspended vertically from a string connected to the ceiling. When a background electric field is set up in the area, it causes the mass to change position so that the string makes a 46 degree angle with the vertical. The electric field has two components, 137 N/C horizontally and 63 N/C vertically upward. What is the mass (in kg) of the charge?
mal sphere of charge q = +64 μC and mass m = 5.1 g is attached...
mal sphere of charge q = +64 μC and mass m = 5.1 g is attached to a t string and placed in a uniform electric field that makes an angle 30° with the horizontal. The opposite end of the string is attached to a Il and the sphere is in static equilibrium when the string is horizontal as in figure shown below. (a) Construct a free body diagram for the sphere. (Submit a file with a maximum size of...
A small sphere is suspended from a string in a uniform electric field shown by arrows, making an angle O=35° with the vertical. If the mass of the sphere is 3 grams and it has a charge of 8 nC, what is the magnitude of the electric field?
A charged sphere is suspended from a string in a uniform electric field directed horizontally. There is an electric force on the sphere to the right and a gravitational force pointing downward. As a result, the sphere hangs at an angle theta from the vertical. Combinations of sphere mass and electric charge are listed in the chart for four cases, all in the same uniform electric field. Rank the angle theta that the string forms with the vertical for these...
0 A small sphere is suspended from a string in a uniform electric field shown by arrows, making an angle 0=25° with the vertical. If the mass of the sphere is 3 grams and it has a charge of 4 nC, what is the magnitude of the electric field? 3.43 x 106 N/C 3.43 N/C 0.35 N/C 15.8 x 106 N/C O 3.5 x 105 N/C 15.8 N/C
e A small sphere is suspended from a string in a uniform electric field shown by arrows, making an angle 0=40° with the vertical. If the mass of the sphere is 4 grams and it has a charge of 9 nC, what is the magnitude of the electric field? 5.19 N/C 3.65 N/C 5.19 x 106 N/C O 3.73 x 105 N/C O0.373 N/C O 3.65 x 106 N/C
Please only round for the
final answer
A metal sphere hangs from a string and has 4 kg of mass. The sphere has a charge of +2.7 μC, A uniform electric field is turned on and directed to the righ (a) Which way does the sphere move? left right (b) What is the electric force on the metal sphere if the magnitude of the electric field is 10 N/C? (c) When the sphere reaches equilibrium, what is the angle that...
mal sphere of charge q = +64 μC and mass m = 5.1 g is attached to a t string and placed in a uniform electric field that makes an angle 30° with the horizontal. The opposite end of the string is attached to a Il and the sphere is in static equilibrium when the string is horizontal as in figure shown below. (a) Construct a free body diagram for the sphere. (Submit a file with a maximum size of...
