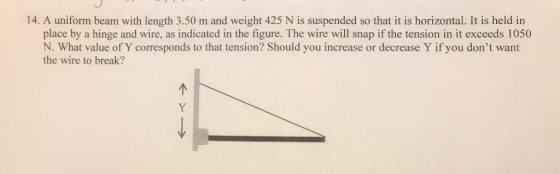

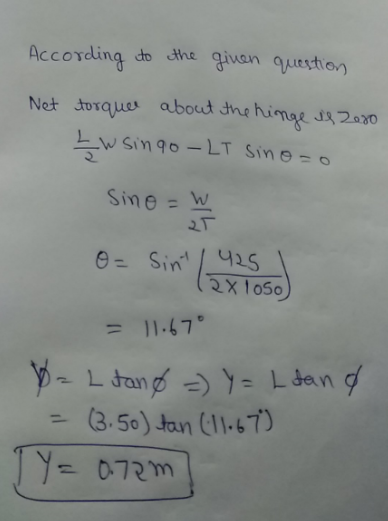

14. A uniform beam with length 3.50 m and weight 425 N is suspended so that...
In the figure, a uniform beam of weight 550 N and length 2.3 m is suspended...
In the figure, a uniform beam of weight 550 N and length 2.3 m is suspended horizontally. On the left it is hinged to a wall; on the right it is supported by a cable bolted to the wall at distance D above the beam. The least tension that will snap the cable is 1100 N What value of D corresponds to that tension? Number Units im The number of significant digits is set to 2, the tolerance is +/-1%
In the figure, one end of a uniform beam of weight 460 N is hinged to...
In the figure, one end of a uniform beam of weight 460 N is hinged to a wall; the other end is supported by a wire that makes angles theta = 26 degree with both wall and beam. Find (a) the tension in the wire and the (b) horizontal and (c) vertical components of the force of the hinge on the beam.
A drum of weight 200 N is supported by a beam of length s, weight W...
A drum of weight 200 N is supported by a beam of length s, weight W and a rope of length r. The mass per unit length of the beam is uniform. If the force exerted on the beam by the hinge is 200 N and acts at an angle of 25 above the horizontal then the tension in the cable of length r is TV zoo (a) 224 N (b) 79 N (c) 105 N (d) 338 N
A shop sign weighing 228 N is supported by a uniform 103 N beam of length...
A shop sign weighing 228 N is supported by a uniform 103 N beam
of length L = 1.75 m, hinged to the wall.
A) A guy wire is connected D = 1.21 m from the wall. Find the
tension in the guy wire. Assume θ = 38.3°.
B) Find the horizontal force exerted by the hinge on the
beam.
C)Find the vertical force exerted by the hinge on the beam. (Use
up as the positive direction.)
A 15 kg uniform beam, 2 m in length, is supported at it's end by a...
A 15 kg uniform beam, 2 m in length, is supported at it's end by a cable as shown below. The angle between the cable and the horizontal is 45 degrees. 2. Cable Beam Find the horizontal and vertical components of the force from the hinge (left end of the beam) acting on the beam a. b. If the tension in the cord exceeds 115N, the cord will break. Will placing a 5 kg mass at the right end of...
A 12.0 m uniform beam is hinged to a vertical wall and held horizontally by a...
A 12.0 m uniform beam is hinged to a vertical wall and held horizontally by a 5.00 m cable attached to the wall 4.00 m above the hinge, as shown in the figure below (Figure 1).The metal of this cable has a test strength of 0.900 kN which means that it will break if the tension in it exceeds that amount. You may want to review For related problem solving tips and strategies, you may want to view a Video...
Example 8.8 A uniform beam of weight 196 N and of length 1.00 m is attached...
Example 8.8 A uniform beam of weight 196 N and of length 1.00 m is attached to a hinge on the outside wall of a restaurant. 30.09 0.50 m 1.00 m A cord is attached at the Trattoria Ebrusca center of the beam and is attached to the wall, making an angle of 30.0 with the beam The cord keeps the beam perpendicular to the wall. If the breaking tension of the cord is 620 N, how large can the...
1. A uniform horizontal bar of length L = 2.0 m and weight 144 N is...
1. A uniform horizontal bar of length L = 2.0 m and weight 144 N is pinned to a vertical wall and supported by a thin wire that makes an angle of 0 = 150 with the horizontal. A mass M, with a weight of 302 N, can be moved anywhere along the bar. The wire can withstand a maximum tension of 573 N. What is the maximum possible distance from the wall at which mass M can be placed...
the length L of the uniform bar is 3.60 m and its weight is 180 N....
the length L of the uniform bar is 3.60 m and its weight is 180 N. Also, let the block's weight ws 330 N and angle θ-30°. The wire can maximum tension of 500 N. With the block placed at this maximum x, what is the horizontal component of the force on the bar from the hinge at A? N (right) N (up) 12 2 ENG1/2
Ex2: A beam with a weight of 500 N is connected to the wall with a...
Ex2: A beam with a weight of 500 N is connected to the wall with a hinge. The beam is horizontal and is held in place by a cable that is tied off to a wall. The angle between the cable and beam is 30 degrees. An object with a weight of 200 N is hanging at the end of the beam. a.What is the tension in the cable? b.What is the magnitude and direction of the force exerted on...
In the figure, a uniform beam of weight 550 N and length 2.3 m is suspended horizontally. On the left it is hinged to a wall; on the right it is supported by a cable bolted to the wall at distance D above the beam. The least tension that will snap the cable is 1100 N What value of D corresponds to that tension? Number Units im The number of significant digits is set to 2, the tolerance is +/-1%
In the figure, one end of a uniform beam of weight 460 N is hinged to a wall; the other end is supported by a wire that makes angles theta = 26 degree with both wall and beam. Find (a) the tension in the wire and the (b) horizontal and (c) vertical components of the force of the hinge on the beam.
A drum of weight 200 N is supported by a beam of length s, weight W and a rope of length r. The mass per unit length of the beam is uniform. If the force exerted on the beam by the hinge is 200 N and acts at an angle of 25 above the horizontal then the tension in the cable of length r is TV zoo (a) 224 N (b) 79 N (c) 105 N (d) 338 N
A shop sign weighing 228 N is supported by a uniform 103 N beam
of length L = 1.75 m, hinged to the wall.
A) A guy wire is connected D = 1.21 m from the wall. Find the
tension in the guy wire. Assume θ = 38.3°.
B) Find the horizontal force exerted by the hinge on the
beam.
C)Find the vertical force exerted by the hinge on the beam. (Use
up as the positive direction.)
A 15 kg uniform beam, 2 m in length, is supported at it's end by a cable as shown below. The angle between the cable and the horizontal is 45 degrees. 2. Cable Beam Find the horizontal and vertical components of the force from the hinge (left end of the beam) acting on the beam a. b. If the tension in the cord exceeds 115N, the cord will break. Will placing a 5 kg mass at the right end of...
A 12.0 m uniform beam is hinged to a vertical wall and held horizontally by a 5.00 m cable attached to the wall 4.00 m above the hinge, as shown in the figure below (Figure 1).The metal of this cable has a test strength of 0.900 kN which means that it will break if the tension in it exceeds that amount. You may want to review For related problem solving tips and strategies, you may want to view a Video...
Example 8.8 A uniform beam of weight 196 N and of length 1.00 m is attached to a hinge on the outside wall of a restaurant. 30.09 0.50 m 1.00 m A cord is attached at the Trattoria Ebrusca center of the beam and is attached to the wall, making an angle of 30.0 with the beam The cord keeps the beam perpendicular to the wall. If the breaking tension of the cord is 620 N, how large can the...
1. A uniform horizontal bar of length L = 2.0 m and weight 144 N is pinned to a vertical wall and supported by a thin wire that makes an angle of 0 = 150 with the horizontal. A mass M, with a weight of 302 N, can be moved anywhere along the bar. The wire can withstand a maximum tension of 573 N. What is the maximum possible distance from the wall at which mass M can be placed...
the length L of the uniform bar is 3.60 m and its weight is 180 N. Also, let the block's weight ws 330 N and angle θ-30°. The wire can maximum tension of 500 N. With the block placed at this maximum x, what is the horizontal component of the force on the bar from the hinge at A? N (right) N (up) 12 2 ENG1/2
