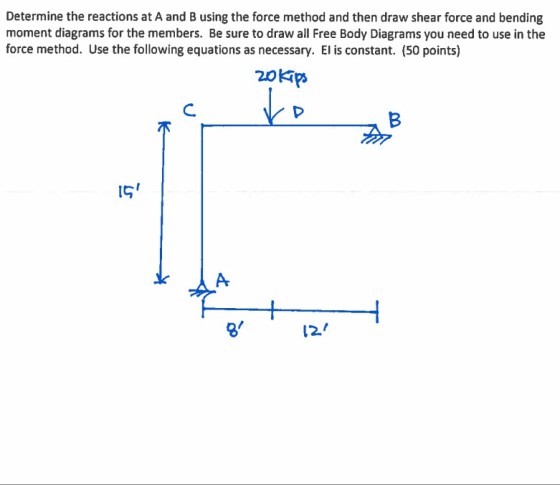

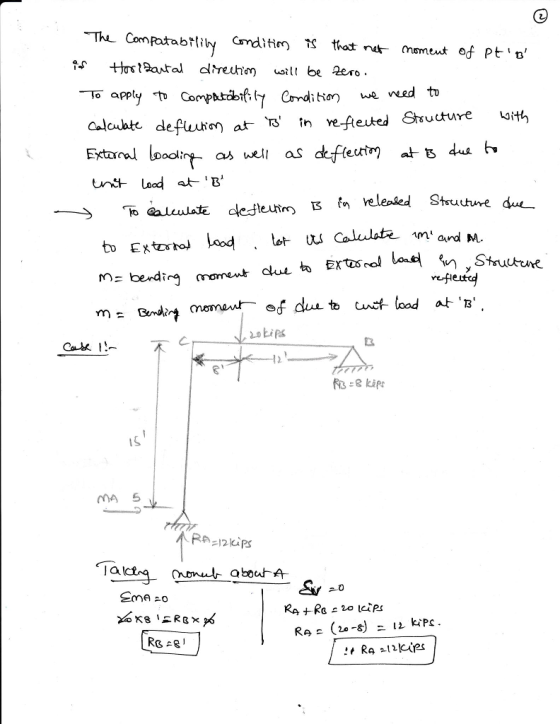

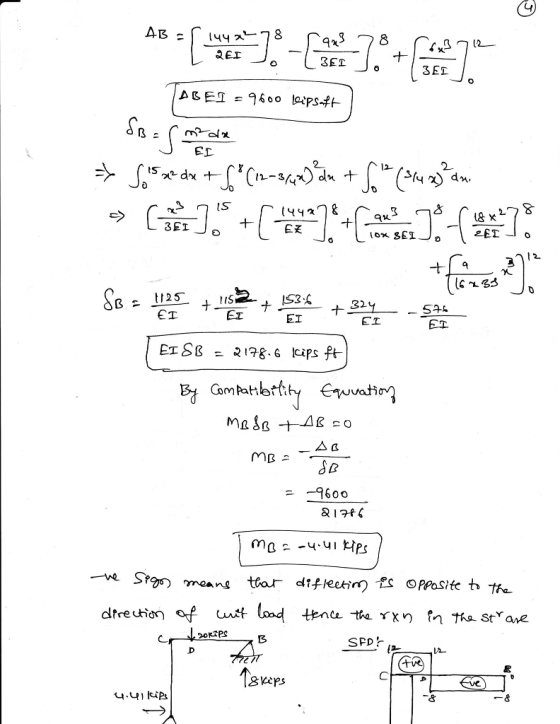

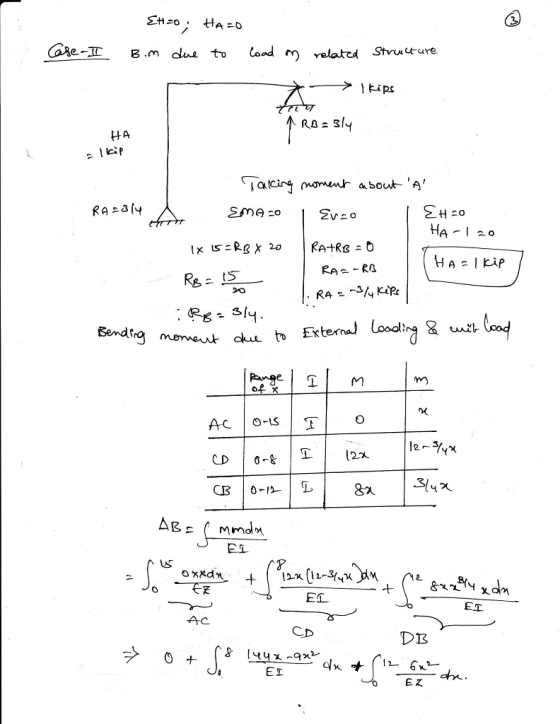

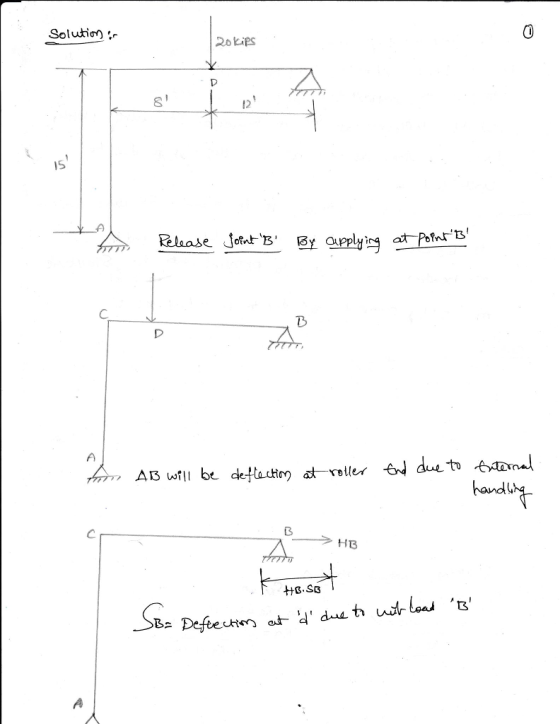

Determine the reactions at A and B using the force method...
Using force method , determine the reactions of the supports for the beam shown in Figure...
Using force method , determine the reactions of the
supports for the beam shown in Figure ( 5 ) . Then draw shear and
bending moment diagrams for the beam El is constant Use conjugate
beam method to determine deflections ,
6 m 50 KN 200 kN. 9 m - 3 m Fig. (5) BEST WISHES
Any one Can solve this Fast please i need it now Q5: Using force method, determine...
Any one Can solve this Fast please i need it
now
Q5: Using force method, determine the reactions of the supports for the beam shown in Figure (5). Then draw shear and bending moment diagrams for the beam. El is constant Use conjugate beam method to determine deflections. 6 m 50 KN 200 kN.m 2 B 9 m
Q5: Using force method, determine the reactions of the supports for the beam shown in Figure...
Q5: Using force method, determine the reactions of the
supports for the beam shown in Figure (5). Then draw shear and
bending moment diagrams for the beam. EI is constant. Use conjugate
beam method to determine deflections.
I need it in 30min or 1 h
6 m 50 KN 200 kN.m 22 А В. С 9 m to 3m
i need the answer quickly fast as you can Q5: Using force method, determine the reactions...
i need the answer quickly fast as you can
Q5: Using force method, determine the reactions of the supports for the beam shown in Figure (5). Then draw shear and bending moment diagrams for the beam. Er is constant. Use conjugate beam method to determine deflections. 6 m 50 KN 200 kN.m A 9 m 3 m
asap Q5: Using force method, determine the reactions of the supports for the beam shown in...
asap
Q5: Using force method, determine the reactions of the supports for the beam shown in Figure (5). Then draw shear and bending moment diagrams for the beam. EI is constant. Use conjugate beam method to determine deflections. 6 m 50 KN 200 kN.m 9 m 3 m Fig. (5)
Problem No.1: Solve the following indeterminate beams using slope-deflection method. Find reactions draw shear force and...
Problem No.1: Solve the following indeterminate beams using slope-deflection method. Find reactions draw shear force and bending moment diagrams. Also show your calculations: 30 kN 10 kN/m 4 m 9 m 6 m El Constant
Question No. 3 (25%) Determine the reactions at A, B and D, where A is hinge,...
Question No. 3 (25%) Determine the reactions at A, B and D, where A is hinge, B and D are rollers. Use the compatibility method of analysis. Draw the shear and bending moment diagrams FREE BODY DIAGRAMS, SECTIONS AND ALL CALCULATION STEPS MUST BE SHOWN 250 KN 25 kN/m -В с 12 m 6 m 6 m 1.57 E = constant
Find the reactions of the two statically indeterminate beams shown below using the Force method. Draw...
Find the reactions of the two statically indeterminate beams shown below using the Force method. Draw the shear and moment diagrams. Also, draw the deflected shape and indicate points of inflection and regions of positive and negative curvatures. El-Constant klft 2 lO lo P1
For the two frames given below Compute the Support Reactions Draw the Free Body Diagrams for...
For the two frames given below Compute the Support Reactions Draw the Free Body Diagrams for all members, and joints with concentrated load or moment Draw the Bending Moment Diagram, Shear Force Diagram, and Axial Force Diagram using the sign conventions and labeling scheme taught in the class Draw the Qualitative Deflected Shape, clearly showing the Inflection Points, if any. 1. (50 points) 45 k Need FBD 3 k/ft 15 ft 2. (50 points) 15 kN/m F G 65 kN...
To determine the reactive forces and moments acting on a beam;express the shear and bending...
To determine the reactive forces and moments acting on a beam;
express the shear and bending moment as functions of their
positions along the beam; and construct shear and bending moment
diagrams. The cantilever beam shown is subjected to a moment at A
and a distributed load that acts over segment BC, and is fixed at
C. Determine the reactions at the support located at C. Then write
expressions for shear and bending moment as a function of their
positions...
Using force method , determine the reactions of the
supports for the beam shown in Figure ( 5 ) . Then draw shear and
bending moment diagrams for the beam El is constant Use conjugate
beam method to determine deflections ,
6 m 50 KN 200 kN. 9 m - 3 m Fig. (5) BEST WISHES
Any one Can solve this Fast please i need it
now
Q5: Using force method, determine the reactions of the supports for the beam shown in Figure (5). Then draw shear and bending moment diagrams for the beam. El is constant Use conjugate beam method to determine deflections. 6 m 50 KN 200 kN.m 2 B 9 m
Q5: Using force method, determine the reactions of the
supports for the beam shown in Figure (5). Then draw shear and
bending moment diagrams for the beam. EI is constant. Use conjugate
beam method to determine deflections.
I need it in 30min or 1 h
6 m 50 KN 200 kN.m 22 А В. С 9 m to 3m
i need the answer quickly fast as you can
Q5: Using force method, determine the reactions of the supports for the beam shown in Figure (5). Then draw shear and bending moment diagrams for the beam. Er is constant. Use conjugate beam method to determine deflections. 6 m 50 KN 200 kN.m A 9 m 3 m
asap
Q5: Using force method, determine the reactions of the supports for the beam shown in Figure (5). Then draw shear and bending moment diagrams for the beam. EI is constant. Use conjugate beam method to determine deflections. 6 m 50 KN 200 kN.m 9 m 3 m Fig. (5)
Problem No.1: Solve the following indeterminate beams using slope-deflection method. Find reactions draw shear force and bending moment diagrams. Also show your calculations: 30 kN 10 kN/m 4 m 9 m 6 m El Constant
Question No. 3 (25%) Determine the reactions at A, B and D, where A is hinge, B and D are rollers. Use the compatibility method of analysis. Draw the shear and bending moment diagrams FREE BODY DIAGRAMS, SECTIONS AND ALL CALCULATION STEPS MUST BE SHOWN 250 KN 25 kN/m -В с 12 m 6 m 6 m 1.57 E = constant
Find the reactions of the two statically indeterminate beams shown below using the Force method. Draw the shear and moment diagrams. Also, draw the deflected shape and indicate points of inflection and regions of positive and negative curvatures. El-Constant klft 2 lO lo P1
For the two frames given below Compute the Support Reactions Draw the Free Body Diagrams for all members, and joints with concentrated load or moment Draw the Bending Moment Diagram, Shear Force Diagram, and Axial Force Diagram using the sign conventions and labeling scheme taught in the class Draw the Qualitative Deflected Shape, clearly showing the Inflection Points, if any. 1. (50 points) 45 k Need FBD 3 k/ft 15 ft 2. (50 points) 15 kN/m F G 65 kN...
To determine the reactive forces and moments acting on a beam;
express the shear and bending moment as functions of their
positions along the beam; and construct shear and bending moment
diagrams. The cantilever beam shown is subjected to a moment at A
and a distributed load that acts over segment BC, and is fixed at
C. Determine the reactions at the support located at C. Then write
expressions for shear and bending moment as a function of their
positions...
