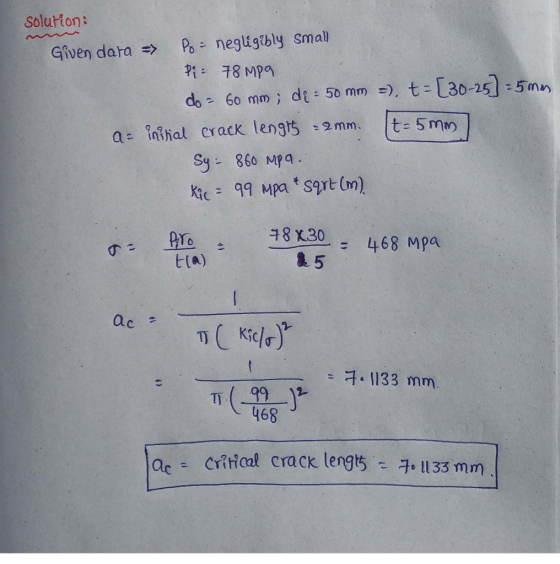

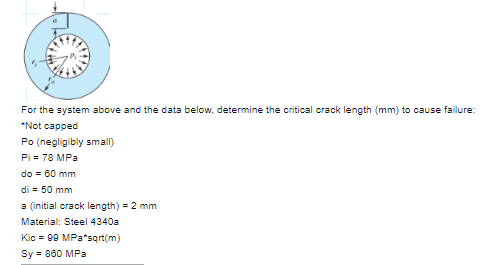

For the system above and the data below, determine the critical crack length (mm) to cause...
3.2 A steel tension bar 8-mm thick and 50-mm wide with an initial single- edge crack...
3.2 A steel tension bar 8-mm thick and 50-mm wide with an initial single- edge crack of 10-mm long is subjected to an uniaxial stress o = 140 MPa. a) Determine the stress intensity factor K). Is the crack stable? b) Determine the critical crack size, and c) determine the critical load. Data: Kic = 60 MPaym. [Solution: a) 34 MPa, b) 31.1 mm, and c) 98.84 kN).
QUESTION 3 3D Arm Given the system above and the data below, determine the cycles till...
QUESTION 3 3D Arm Given the system above and the data below, determine the cycles till failure: (don't forget about fatigue stress concentration factors) F1_min(N)200 F1_max(N) 10000 F2 min(N)-1000 F2_max(N) 10000 L- 848 mm a 825 mm b 825 mm 3 mm D 80 mm d 66.67 mm r 20 mm Material: 1095 Steel yield strength of the material: 813 MPa ultimate tensile strength of the material: 1260 MPa Surface Finish: Forged Temp (C)- 450 Reliability (%)-65 Node to analyze:...
3. A square rod of 500 mm long with a width of 10 mm is subjected...
3. A square rod of 500 mm long with a width of 10 mm is subjected to a load of 40000 N., The stress-strain behavior is shown in the Figure below. Based on the information, please answer the following questions: (Note: Pa = N/㎡, J = Nm) (a) Compute the applied stress (5 points). 70 Tensile strength 450 MPa (65.000 ps) -60 400 103 ps MPa 40厂 50 300 40 Yield strength30 250 MPa (36.000 ps) 200 100 20 10...
#3. Determine the critical load on a steel column having a rectangular cross section, 12 mm...
#3. Determine the critical load on a steel column having a rectangular cross section, 12 mm by 18 mm, and a length of 280 mm. It is proposed to use AISI 1040 hot-rolled steel. The lower end of the column is inserted into a dose-fitting socket and is welded securely. The upper end is pinned. Given E = 207 GPa and Sy=290 MPa Is this Euler or Johnson column? 7777777 020.docx (318.482 KB) Weld -12 mm Section 1-4 (a) Column...
1-Determine the % elongation, yield stress and ultimate tensile strength of the material tested above 2-Calculate...
1-Determine the % elongation, yield stress and ultimate tensile
strength of the material tested above
2-Calculate the elastic modulus of the material tested above
3-If a 200mm cylindrical rod of the material tested above, with
radius 20mm, was subjected to a tensile load of 200kN, what would
the length be?
4-An underground wastewater steel pipe with 2mm walls carries an
ammonia solution of 40 g/m3. The pipe is in contact with
groundwater (assume 0 g/m3 ammonia). Determine the
diffusion rate...
Hint: Use trial and error procedure to identify the critical crack length required for brittle fracture...
Hint: Use trial and error procedure to identify the critical crack length required for brittle fracture Integrate Paris law numerically to obtain number of cycles to failure Problem 3 (40 marks) The cross-section of a prototype gun barrel is shown in the figure below. Under repeatod firing, the barrel rapidly develops an array of 40 radial cracks, which undergo fatigue growth as a result of cyclic pressurization. It is a requirement that the fatigue life of the barrel, based on...
Determine the amount of axial force (in N) to cause buckling-failure for a Long or Intermediate...
Determine the amount of axial force (in N) to cause buckling-failure for a Long or Intermediate Column. (Hint: Only two buckling methods, Euler or Johnson, but determine whicl method you need to use first using determining equation) Data: Cross-Section is a hollow Cylinder with an outer diameter of 40 mm and inner diameter of 38 mm. Length of the column is 1.5 meters. Material is a Steel with a young's modulus of 207 GPa. Yield strength of 280 MPa Boundary...
Question #2 (30 points) A solid rectangular column has the dimensions and properties below. Determine if...
Question #2 (30 points) A solid rectangular column has the dimensions and properties below. Determine if it is a Johnson or an Euler column and find the critical load: (a) If its boundary conditions are pinned- pinned. (b) If its boundary conditions are fixed-free. Length of column L - 120 mm Thickness = 5 mm Height = 10 mm Material Steel Yield strength Sy = 305 MPa Modulus of elasticity E = 207 GPa 2 * 20 7
please show all work 2. (12 pts) A shaft w ith a step in diameter is made of SAE 1045 steel. It is required to withstand 107 cycles kN. The shaft has 2(a), di 25 mm, d2-30 mhm, and ρ :0.625 mm....
please show all work
2. (12 pts) A shaft w ith a step in diameter is made of SAE 1045 steel. It is required to withstand 107 cycles kN. The shaft has 2(a), di 25 mm, d2-30 mhm, and ρ :0.625 mm. Use Peterson's fitted on (equation below) for a value of a. Modification factors shall be applied for the following of an axial force amplitude P, 16kN applied along with a mean force of Pm dimensions, as in Figu...
Based on the document below, 1. Describe the hypothesis Chaudhuri et al ids attempting to evaluate;...
Based on the document below,
1. Describe the hypothesis Chaudhuri et al ids attempting to
evaluate; in other words, what is the goal of this paper? Why is he
writing it?
2. Does the data presented in the paper support the hypothesis
stated in the introduction? Explain.
3.According to Chaudhuri, what is the potential role of thew
alkaline phosphatase in the cleanup of industrial waste.
CHAUDHURI et al: KINETIC BEHAVIOUR OF CALF INTESTINAL ALP WITH PNPP 8.5, 9, 9.5, 10,...
3.2 A steel tension bar 8-mm thick and 50-mm wide with an initial single- edge crack of 10-mm long is subjected to an uniaxial stress o = 140 MPa. a) Determine the stress intensity factor K). Is the crack stable? b) Determine the critical crack size, and c) determine the critical load. Data: Kic = 60 MPaym. [Solution: a) 34 MPa, b) 31.1 mm, and c) 98.84 kN).
QUESTION 3 3D Arm Given the system above and the data below, determine the cycles till failure: (don't forget about fatigue stress concentration factors) F1_min(N)200 F1_max(N) 10000 F2 min(N)-1000 F2_max(N) 10000 L- 848 mm a 825 mm b 825 mm 3 mm D 80 mm d 66.67 mm r 20 mm Material: 1095 Steel yield strength of the material: 813 MPa ultimate tensile strength of the material: 1260 MPa Surface Finish: Forged Temp (C)- 450 Reliability (%)-65 Node to analyze:...
3. A square rod of 500 mm long with a width of 10 mm is subjected to a load of 40000 N., The stress-strain behavior is shown in the Figure below. Based on the information, please answer the following questions: (Note: Pa = N/㎡, J = Nm) (a) Compute the applied stress (5 points). 70 Tensile strength 450 MPa (65.000 ps) -60 400 103 ps MPa 40厂 50 300 40 Yield strength30 250 MPa (36.000 ps) 200 100 20 10...
#3. Determine the critical load on a steel column having a rectangular cross section, 12 mm by 18 mm, and a length of 280 mm. It is proposed to use AISI 1040 hot-rolled steel. The lower end of the column is inserted into a dose-fitting socket and is welded securely. The upper end is pinned. Given E = 207 GPa and Sy=290 MPa Is this Euler or Johnson column? 7777777 020.docx (318.482 KB) Weld -12 mm Section 1-4 (a) Column...
1-Determine the % elongation, yield stress and ultimate tensile
strength of the material tested above
2-Calculate the elastic modulus of the material tested above
3-If a 200mm cylindrical rod of the material tested above, with
radius 20mm, was subjected to a tensile load of 200kN, what would
the length be?
4-An underground wastewater steel pipe with 2mm walls carries an
ammonia solution of 40 g/m3. The pipe is in contact with
groundwater (assume 0 g/m3 ammonia). Determine the
diffusion rate...
Hint: Use trial and error procedure to identify the critical crack length required for brittle fracture Integrate Paris law numerically to obtain number of cycles to failure Problem 3 (40 marks) The cross-section of a prototype gun barrel is shown in the figure below. Under repeatod firing, the barrel rapidly develops an array of 40 radial cracks, which undergo fatigue growth as a result of cyclic pressurization. It is a requirement that the fatigue life of the barrel, based on...
Determine the amount of axial force (in N) to cause buckling-failure for a Long or Intermediate Column. (Hint: Only two buckling methods, Euler or Johnson, but determine whicl method you need to use first using determining equation) Data: Cross-Section is a hollow Cylinder with an outer diameter of 40 mm and inner diameter of 38 mm. Length of the column is 1.5 meters. Material is a Steel with a young's modulus of 207 GPa. Yield strength of 280 MPa Boundary...
Question #2 (30 points) A solid rectangular column has the dimensions and properties below. Determine if it is a Johnson or an Euler column and find the critical load: (a) If its boundary conditions are pinned- pinned. (b) If its boundary conditions are fixed-free. Length of column L - 120 mm Thickness = 5 mm Height = 10 mm Material Steel Yield strength Sy = 305 MPa Modulus of elasticity E = 207 GPa 2 * 20 7
please show all work
2. (12 pts) A shaft w ith a step in diameter is made of SAE 1045 steel. It is required to withstand 107 cycles kN. The shaft has 2(a), di 25 mm, d2-30 mhm, and ρ :0.625 mm. Use Peterson's fitted on (equation below) for a value of a. Modification factors shall be applied for the following of an axial force amplitude P, 16kN applied along with a mean force of Pm dimensions, as in Figu...
Based on the document below,
1. Describe the hypothesis Chaudhuri et al ids attempting to
evaluate; in other words, what is the goal of this paper? Why is he
writing it?
2. Does the data presented in the paper support the hypothesis
stated in the introduction? Explain.
3.According to Chaudhuri, what is the potential role of thew
alkaline phosphatase in the cleanup of industrial waste.
CHAUDHURI et al: KINETIC BEHAVIOUR OF CALF INTESTINAL ALP WITH PNPP 8.5, 9, 9.5, 10,...
