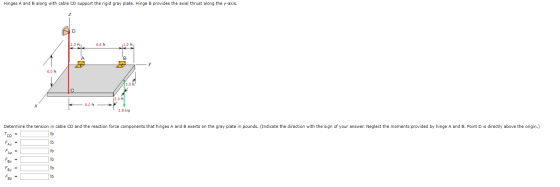

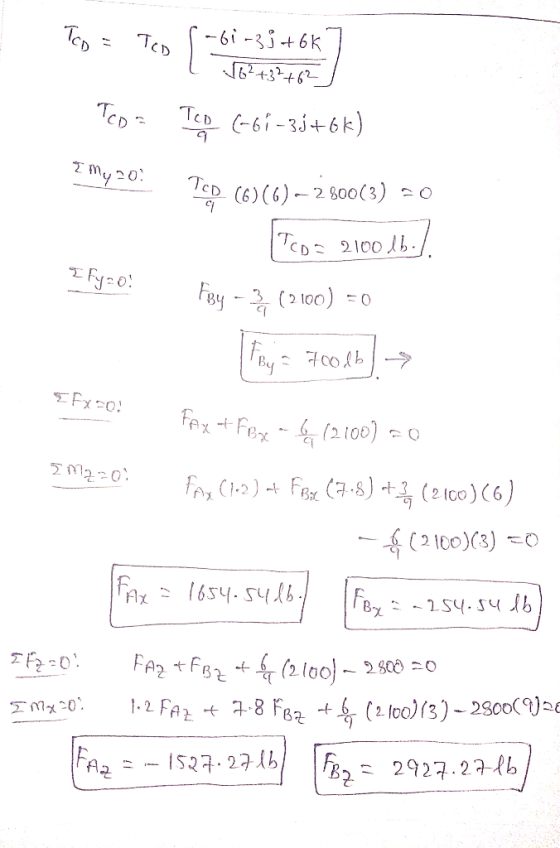

Hinges A and B along with cable CD support the rigid gray plate. Hinge B provides...
Rigid bar ABC is 4 ft long and lies in the yz-plane. A hinge at A and cable CD support the bar
Rigid bar ABC is 4 ft long and lies in the yz-plane. A hinge at A and cable CD support the bar. The hinge axis lies along the x-axis. (Due to the nature of this problem, do not use rounded intermediate values in your calculations-including answers submitted in WebAssign.) Determine the reactions the hinge exerts on the bar and the tension in cable CD. Point B, where F is applied to the rod, is 3 ft (measured along the rod) from...
The 37-kg uniform triangular plate is supported by two small hinges A and B and the...
The 37-kg uniform triangular plate is supported by two small hinges A and B and the cable system shown. For the horizontal position of the plate, determine all hinge reactions and the tension in the cable. Hinge A can resist axial thrust, but hinge B cannot. See Table D/3 in Appendix D for the mass-center location of a triangular plate. 0.94 m 0.24 m 0.36 m2 0.24 m 1.37 m 0 36 m Answers: - - - z zz zz...
The 41-kg uniform triangular plate is supported by two small hinges A and B and the...
The 41-kg uniform triangular plate is supported by two small hinges A and B and the cable system shown. For the horizontal position of the plate, determine all hinge reactions and the tension Tin the cable. Hinge A can resist axial thrust, but hinge B cannot. See Table D/3 in Appendix D for the mass-center location of a triangular plate. POR 0.66 m T 1.10 m 0.17 m 0.34 m 0.34 m 0.17 m c Ay Answers: Z Z Az...
Homework21 - 3D Rigid Body Equilibrium II Due: Monday, 7 Oct 2019 HW21.1 - The boom...
Homework21 - 3D Rigid Body Equilibrium II Due: Monday, 7 Oct 2019 HW21.1 - The boom AB is held in place by a ball-and- socket joint and a pulley and cord system as shown. Determine the axial component (y component) of the reaction at A. B 5 ft- 5f 1200 lb 2 ft TB 3ft & 300 lb HW21.2 -The horizontal shelf ABCD is held in place by hinges at A and B. There are typically two additional supports which...
Please answer all parts of the questions and please try making them clear and easy to understand. CONCEPTUAL QUESTIONS: (Total Points 10, 1 points each question) 1- A plate is support...
Please answer all parts of the questions and please
try making them clear and easy to understand.
CONCEPTUAL QUESTIONS: (Total Points 10, 1 points each question) 1- A plate is supported by a bal-and-socket joint at A, a roller joint at B, and a cable at C. How many unknown support reactions are there in this problem? 300 N 400 N i m A) Four forces and two moments B) Six forces C) Five forces D) Four forces and one...
The 37-kg uniform triangular plate is supported by two small hinges A and B and the cable system shown. For the horizontal position of the plate, determine all hinge reactions and the tension in the cable. Hinge A can resist axial thrust, but hinge B cannot. See Table D/3 in Appendix D for the mass-center location of a triangular plate. 0.94 m 0.24 m 0.36 m2 0.24 m 1.37 m 0 36 m Answers: - - - z zz zz...
The 41-kg uniform triangular plate is supported by two small hinges A and B and the cable system shown. For the horizontal position of the plate, determine all hinge reactions and the tension Tin the cable. Hinge A can resist axial thrust, but hinge B cannot. See Table D/3 in Appendix D for the mass-center location of a triangular plate. POR 0.66 m T 1.10 m 0.17 m 0.34 m 0.34 m 0.17 m c Ay Answers: Z Z Az...
Homework21 - 3D Rigid Body Equilibrium II Due: Monday, 7 Oct 2019 HW21.1 - The boom AB is held in place by a ball-and- socket joint and a pulley and cord system as shown. Determine the axial component (y component) of the reaction at A. B 5 ft- 5f 1200 lb 2 ft TB 3ft & 300 lb HW21.2 -The horizontal shelf ABCD is held in place by hinges at A and B. There are typically two additional supports which...
Please answer all parts of the questions and please
try making them clear and easy to understand.
CONCEPTUAL QUESTIONS: (Total Points 10, 1 points each question) 1- A plate is supported by a bal-and-socket joint at A, a roller joint at B, and a cable at C. How many unknown support reactions are there in this problem? 300 N 400 N i m A) Four forces and two moments B) Six forces C) Five forces D) Four forces and one...
