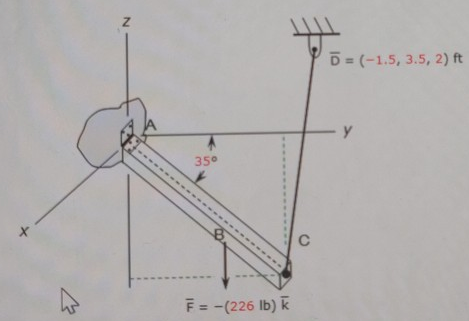

Rigid bar ABC is 4 ft long and lies in the yz-plane. A hinge at A and cable CD support the bar
Rigid bar ABC is 4 ft long and lies in the yz-plane. A hinge at A and cable CD support the bar. The hinge axis lies along the x-axis. (Due to the nature of this problem, do not use rounded intermediate values in your calculations-including answers submitted in WebAssign.)
Determine the reactions the hinge exerts on the bar and the tension in cable CD. Point B, where F is applied to the rod, is 3 ft (measured along the rod) from A. The width, thickness, and weight of bar ABC are negligible. Note that the hinge must develop all five components of reaction available to support the bar. (Indicate the direction with the sign of your answer. Enter the forces in pounds and the moments in ft lb.)

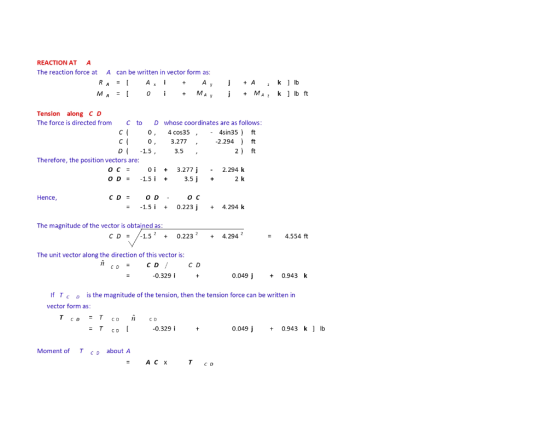

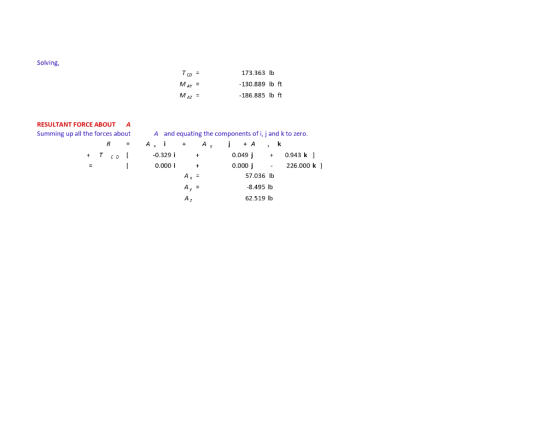

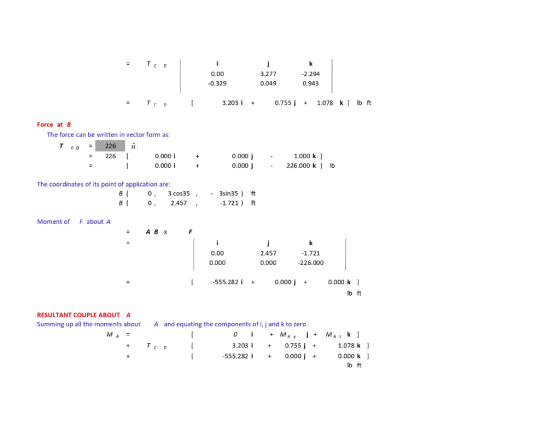

Homework Answers
Add Answer to:
Rigid bar ABC is 4 ft long and lies in the yz-plane. A hinge at A and cable CD support the bar
Hinges A and B along with cable CD support the rigid gray plate. Hinge B provides...
Hinges A and B along with cable CD support the rigid gray plate. Hinge B provides the axial thrust along the y-axis. KN 6.6 ft 6.0 ft 13.0 ft 6.0 ft - > 2.8 kip Determine the tension in cable CD and the reaction force components that hinges A and B exerts on the gray plate in pounds. (Indicate the direction with the sign of your answer. Neglect the moments provided by hinge A and B. Point D is directly...
Cables CE and BF along with the ball and socket at A support the rigid bar...
Cables CE and BF along with the ball and socket at A support the rigid bar ABCD. (Due to the nature of this problem, do not use rounded intermediate values in your calculations-including answers submitted in WebAssign.) z 6 m 4 m 2 ms 2 m F = -(175 NK Determine the tension in each cable and the reaction components the ball and socket joint exerts on ABCD at A in newtons. (Indicate the direction with the sign of your...
A ball and socket at A. Cable BD at B, and a smooth surface at C...
A ball and socket at A. Cable BD at B, and a smooth surface at C support rod ABC. The smooth surface that provides the support at C lies in the yz-plane. C(0,12,6) ft D(6,0,3) ft B(6,6,3) ft 124 lb BS (12,0,0) ft Determine the reaction components that the ball and socket exert on rod ABC, the tension in cable BD, and the force the smooth wall exerts on end of rod ABC: Note that cable BD does not pass...
The pin at B and link CD support bar ABC, Bar ABC supports the distributed loading...
The pin at B and link CD support bar ABC, Bar ABC supports the distributed loading shown. (Assume that the x-axis is to the right and the axis is up along the page.) 1.520 lb/ 720 lb TTTIIIII 14 -5- 5-- Determine the reactions at pin B and the force in link CD in pounds. Note that link CD is a two-force member. magnitude direction magnitude direction magnitude sense
A ball and socket at A, Cable BD at B, and a smooth surface at C...
A ball and socket at A, Cable BD at B, and a smooth surface at C
support rod ABC. The smooth surface that provides the support at C
lies in the yz-plane.
Determine the reaction components that the ball and socket exert
on rod ABC, the tension in cable BD, and the force the smooth wall
exerts on end C of rod ABC. Note that cable BD does not pass
through point O. (Indicate the direction with the sign of...
2. A bar on a hinge starts from rest and rotates with an angular acceleration α...
2. A bar on a hinge starts from rest and rotates with an angular acceleration α (10 + 61), where α is in rad/s" and 1 is in seconds. Determine the angle in radians through which the bar turns in the first 4.00 s. 4. A dentist's drll starts from rest. After 3.20 s of constant an- gular acceleration, it turns at a rate of 2.51 × 104 rev/min. (a) Find the drill's angular acceleration. (b) Determine the angle (in...
Please answer all parts of the questions and please try making them clear and easy to understand. CONCEPTUAL QUESTIONS: (Total Points 10, 1 points each question) 1- A plate is support...
Please answer all parts of the questions and please
try making them clear and easy to understand.
CONCEPTUAL QUESTIONS: (Total Points 10, 1 points each question) 1- A plate is supported by a bal-and-socket joint at A, a roller joint at B, and a cable at C. How many unknown support reactions are there in this problem? 300 N 400 N i m A) Four forces and two moments B) Six forces C) Five forces D) Four forces and one...
Hinges A and B along with cable CD support the rigid gray plate. Hinge B provides the axial thrust along the y-axis. KN 6.6 ft 6.0 ft 13.0 ft 6.0 ft - > 2.8 kip Determine the tension in cable CD and the reaction force components that hinges A and B exerts on the gray plate in pounds. (Indicate the direction with the sign of your answer. Neglect the moments provided by hinge A and B. Point D is directly...
Cables CE and BF along with the ball and socket at A support the rigid bar ABCD. (Due to the nature of this problem, do not use rounded intermediate values in your calculations-including answers submitted in WebAssign.) z 6 m 4 m 2 ms 2 m F = -(175 NK Determine the tension in each cable and the reaction components the ball and socket joint exerts on ABCD at A in newtons. (Indicate the direction with the sign of your...
A ball and socket at A. Cable BD at B, and a smooth surface at C support rod ABC. The smooth surface that provides the support at C lies in the yz-plane. C(0,12,6) ft D(6,0,3) ft B(6,6,3) ft 124 lb BS (12,0,0) ft Determine the reaction components that the ball and socket exert on rod ABC, the tension in cable BD, and the force the smooth wall exerts on end of rod ABC: Note that cable BD does not pass...
The pin at B and link CD support bar ABC, Bar ABC supports the distributed loading shown. (Assume that the x-axis is to the right and the axis is up along the page.) 1.520 lb/ 720 lb TTTIIIII 14 -5- 5-- Determine the reactions at pin B and the force in link CD in pounds. Note that link CD is a two-force member. magnitude direction magnitude direction magnitude sense
A ball and socket at A, Cable BD at B, and a smooth surface at C
support rod ABC. The smooth surface that provides the support at C
lies in the yz-plane.
Determine the reaction components that the ball and socket exert
on rod ABC, the tension in cable BD, and the force the smooth wall
exerts on end C of rod ABC. Note that cable BD does not pass
through point O. (Indicate the direction with the sign of...
2. A bar on a hinge starts from rest and rotates with an angular acceleration α (10 + 61), where α is in rad/s" and 1 is in seconds. Determine the angle in radians through which the bar turns in the first 4.00 s. 4. A dentist's drll starts from rest. After 3.20 s of constant an- gular acceleration, it turns at a rate of 2.51 × 104 rev/min. (a) Find the drill's angular acceleration. (b) Determine the angle (in...
Please answer all parts of the questions and please
try making them clear and easy to understand.
CONCEPTUAL QUESTIONS: (Total Points 10, 1 points each question) 1- A plate is supported by a bal-and-socket joint at A, a roller joint at B, and a cable at C. How many unknown support reactions are there in this problem? 300 N 400 N i m A) Four forces and two moments B) Six forces C) Five forces D) Four forces and one...
