Homework Answers
for combination (A) the equivalent resistance is
Re = R+1/(1/R+1/R)=1+1/2 = 1.5 ohms
For combination B the equivalent resistance is
Re = 1/(1/3R+1/3R )=1/(1/3+1/3) = 3/2 = 1.5 ohms
So the answer is
Both (A) and (B)
Add Answer to:

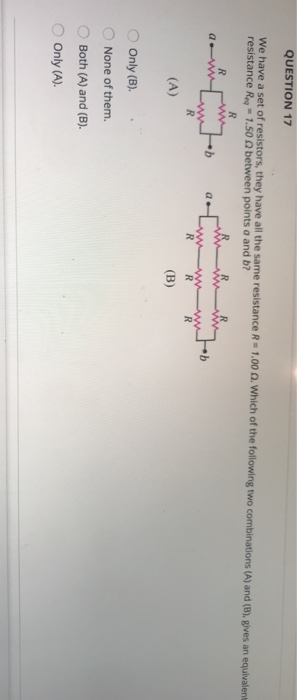

QUESTION 17 We have a set of resistors, they have all the same resistance R=1.00 ....
