1. Determine the reactions at the supports A and B using Force Method. El is constant....

Question

Question

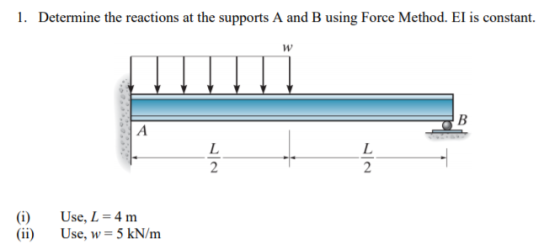

1. Determine the reactions at the supports A and B using Force Method. El is constant. w B А L 2 L 2 (i) (ii) Use, L = 4 m Us

engineering Civil-Engineering

Answer 1

Similar Homework Help Questions

1. Determine all reactions of supports using force method. El is constant. lookg 50kg 4m 2m...

1. Determine all reactions of supports using force method. El is constant. lookg 50kg 4m 2m 2 m
Using force method , determine the reactions of the supports for the beam shown in Figure...

Using force method , determine the reactions of the supports for the beam shown in Figure ( 5 ) . Then draw shear and bending moment diagrams for the beam El is constant Use conjugate beam method to determine deflections , 6 m 50 KN 200 kN. 9 m - 3 m Fig. (5) BEST WISHES
Solve using the stiffness method Determine the reactions at the supports. El is a constant. Prob....

Solve using the stiffness method Determine the reactions at the supports. El is a constant. Prob. 15-7 6 12 kN/m 5 m 2.5 m Show transcribed image text

Q5: Using force method, determine the reactions of the supports for the beam shown in Figure...

Q5: Using force method, determine the reactions of the supports for the beam shown in Figure (5). Then draw shear and bending moment diagrams for the beam. EI is constant. Use conjugate beam method to determine deflections. I need it in 30min or 1 h 6 m 50 KN 200 kN.m 22 А В. С 9 m to 3m
Using the force method, Determine the reactions at supports. EI is constant. Determine the reactions at...

Using the force method, Determine the reactions at supports. EI is constant. Determine the reactions at supports. El is constant. 500 lb/ft 3k 10 ft- SA 0 a 6.5 (10) 10 ft - 2.5 uz
Determine the reactions at the supports. Assume O is a roller. El is constant Prob. 15-1...

Determine the reactions at the supports. Assume O is a roller. El is constant Prob. 15-1 5 kN/m Solve using Stiffness method and show each matrix and final matrix

asap Q5: Using force method, determine the reactions of the supports for the beam shown in...

asap Q5: Using force method, determine the reactions of the supports for the beam shown in Figure (5). Then draw shear and bending moment diagrams for the beam. EI is constant. Use conjugate beam method to determine deflections. 6 m 50 KN 200 kN.m 9 m 3 m Fig. (5)
0 Question 3 a) Using the Force Method, determine the reactions at all supports. In addition to t...

0 Question 3 a) Using the Force Method, determine the reactions at all supports. In addition to the applied loads, support at A rotates 0.005 radian counterclockwise Given E=200GPa and i=150 x 106 mm! 200 x 109 (20 marks) oda rotation 5 kN/m 25 kNm 10 m 6 m By Figure 3 b) If a spring is connected at point C, determine the force in this spring using the force Method By comparing to the solution in Question 3(a), what...
10-23. Determine the reactions at the supports. Assume A and B are pins. El is constant...

10-23. Determine the reactions at the supports. Assume A and B are pins. El is constant 9 kN/m Prob. 10-23

Any one Can solve this Fast please i need it now Q5: Using force method, determine...

Any one Can solve this Fast please i need it now Q5: Using force method, determine the reactions of the supports for the beam shown in Figure (5). Then draw shear and bending moment diagrams for the beam. El is constant Use conjugate beam method to determine deflections. 6 m 50 KN 200 kN.m 2 B 9 m
