Question

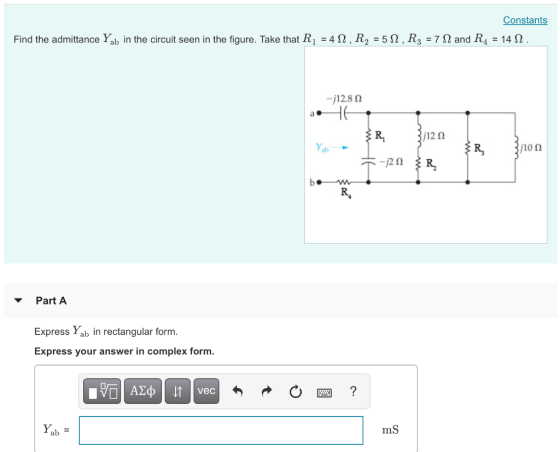

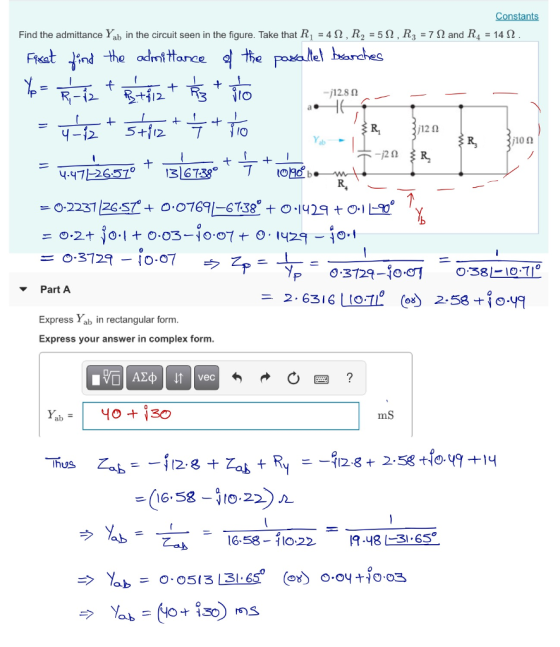

Constants Find the admittance Yab in the circuit seen in the figure. Take that R1 = 4 Ω , R2 = 5 Ω , R3 = 7 Ω and R4 = 14 Ω -j128 Ω a1 ab j10 Ω ▼ Part A Express Yab in rectangular form. Express your answer in complex form. mS ab =

0 0
Add a comment Improve this question Transcribed image text
Know the answer?
Add Answer to:
Constants Find the admittance Yab in the circuit seen in the figure. Take that R1 =...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
