Question

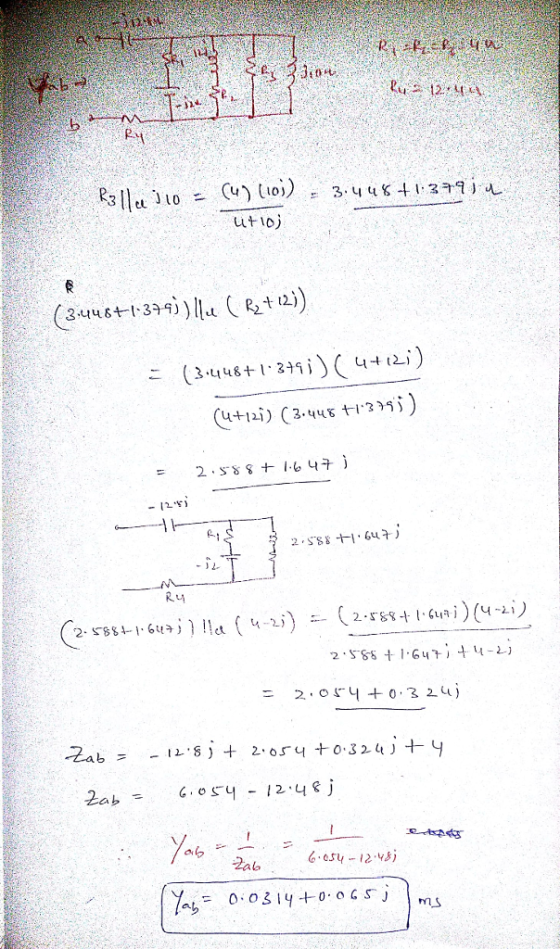

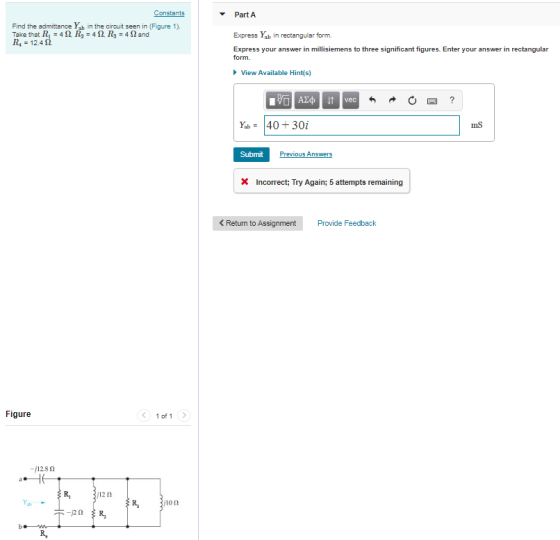

Part A Find the admittance Yab in the circuit seen in (Figure 1). Express Yab in rectangular form R,-12.4 12. View Available Hint(s) mS Submit X Incorrect Try Again; 5 attempts remaining Return to Assignment Provide Feedback Figure 1 of 1 -,128 Ω R, 12 2 馬 3/10Ω

0 0
Add a comment Improve this question Transcribed image text
Know the answer?
Add Answer to:
Part A Find the admittance Yab in the circuit seen in (Figure 1). Express Yab in...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • Find the admittance Yab in the circuit seen in (Figure 1). Take that R1 8, R2...

    Find the admittance Yab in the circuit seen in (Figure 1). Take that R1 8, R2 3 2, R3 62 and R4 14.72 Express Yab in rectangular form. Express your answer in millisiemens to three significant figures. Enter your answer in rectangulan View Available Hint(s) mS Figure 1 of 1 Submit Previous Answers X Incorrect, Try Again; 8 attempts remaining -j128 Ω R, Provide Feedback ab

  • Find the admittance Yab in the circuit seen in the figure. Part A 14.132. (Figure 1)...

    Find the admittance Yab in the circuit seen in the figure. Part A 14.132. (Figure 1) Express Yab in rectangular form. Express your answer in complex form. 図? mS ab Submit Request Answer Figure 1 of 1 Provide Feedback Next > -j128 Ω İ12Ω R,

  • Constants Find the admittance Yab in the circuit seen in the figure. Take that R1 =...

    Constants Find the admittance Yab in the circuit seen in the figure. Take that R1 = 4 Ω , R2 = 5 Ω , R3 = 7 Ω and R4 = 14 Ω -j128 Ω a1 ab j10 Ω ▼ Part A Express Yab in rectangular form. Express your answer in complex form. mS ab =

  • Find the admittance Y in the circuit soon in the figure. Take that Ri - 59....

    Find the admittance Y in the circuit soon in the figure. Take that Ri - 59. Rg = 2 . Rs = 71 and Ri = 14.8 (Figure 1) Part A Express Y in rectangular form Express your answer in complex form. IVO AXI 2 ms Submit Request Answer Provide Feedback Figure < 1 of 1 > -12. 20 30 -2 R

  • Part A In the circuit of the figure (Figure 1), how much power is dissipated in...

    Part A In the circuit of the figure (Figure 1), how much power is dissipated in the 2.0-92 resistor? Express your answer with the appropriate units. НА Im ? P2.00 = 7.53 W Submit Previous Answers Request Answer * Incorrect; Try Again; 3 attempts remaining Provide Feedback Figure < 1 of 1 1.012 6.0V = 2.0 Ω WWW 4.0 12 6.0 12 WWW

  • Part A The action of the two switches in the circuit seen in the figure is...

    Part A The action of the two switches in the circuit seen in the figure is as follows. For t<0, switch 1 is in position a and switch 2 is open. This state has existed for a long time. At t 0, switch 1 moves instantaneously from position a to position b, while switch 2 remains open. Ten milliseconds after switch 1 operates, switch 2 closes, remains closed for 10 ms and then opens. (Figure 1) Find vo(t) 44 ms...

  • Problem 4 Part A Find the average power supplied by the voltage source in the circuit...

    Problem 4 Part A Find the average power supplied by the voltage source in the circuit in the figure if Ug = 40 cos 10% V. Express your answer with the appropriate units. View Available Hint(s) UNHA to P= 9.69 w Submit Previous Answers Figure 1 of 1 > X Incorrect; Try Again; & attempts remaining Part B 401 Find the reactive power supplied by the voltage source in the circuit. Express your answer with the appropriate units. 80 H...

  • The variable resistor (R) in the circuit in (Figure 1) is adjusted for maximum power transfer...

    The variable resistor (R) in the circuit in (Figure 1) is adjusted for maximum power transfer to R. Suppose that P=256 X Incorrect; Try Again: 3 attempts remaining Part 6 Figure What percentage of the total power developed in the circuit is delivered to R, found in partA? Express your answer using three significant figures. 1 of 1 V AED vec RO? % delivered = 40 160 Submit Previous Answers Request Answer 400 V 180 C 200 V X Incorrect:...

  • Circuit help. tem 5 Part A Use the mesh-current method to find the phasor current 19...

    Circuit help. tem 5 Part A Use the mesh-current method to find the phasor current 19 in the circuit in Figure 1). Suppose that R-11 ? Express your answer in complex form using three significant figures Figure 1 of 1 > Submit Previous Answers Request Ans Previous Answers Request Answer X Incorrect: Try Again; 3 attempts remaining Provide Feedback j412 1 20902 y

  • Problem 4.90 PSpicelMultisim Part A The variable resistor (RL.) in the circuit in (Figure 1) is a...

    Problem 4.90 PSpicelMultisim Part A The variable resistor (RL.) in the circuit in (Figure 1) is adjusted for maximum power transfer to RI. Suppose that R:54 Ω Find the numerical value of RL Express your answer to three significant figures and include the appropriate units RL-Value Units Submit vio Figure Incorrect; Try Again; 4 attempts remaining Part B 30 0 Find the maximum power transferred to RI Express your answer to three significant figures and include the appropriate units 45...
