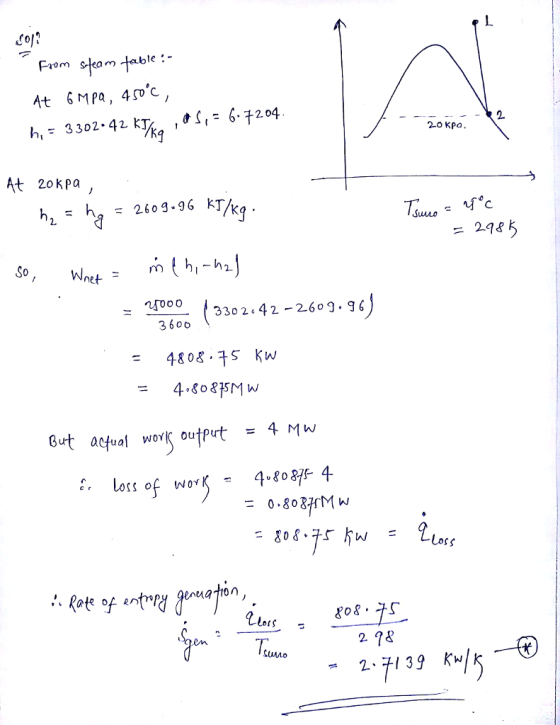

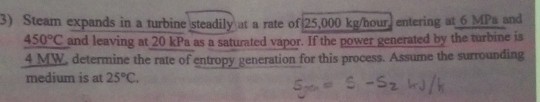

3) Steam expands in a turbine steadily at a rate of 25,000 kg/hour) entering at 6...
Steam flows steadily through a turbine at a rate of 20,000 kg/h, entering at 6.5 MPa...
Steam flows steadily through a turbine at a rate of 20,000 kg/h, entering at 6.5 MPa and 500 C, and leaving at 60C as saturated water. If the power generated by the turbine is 40 MW, determine the heat loss from the turbine.
1 out of 2 attempt Steam flows steadily through a turbine at a rate of 53,500...
1 out of 2 attempt Steam flows steadily through a turbine at a rate of 53,500 lbm/h, entering at 1,000 psia and 900°F and leaving at 5 psia as saturated vapor. If the power generated by the turbine is 4.26 MW, determine the rate of heat loss from the steam. Btu/s (Round to one decimal place) out
Steam enters an adiabatic turbine steadily at 3 MPa and 450°C at a rate of 8...
Steam enters an adiabatic turbine steadily at 3 MPa and 450°C at a rate of 8 kg/s and exits at 0.2 MPa and 150*C. If the surrounding air is at 25°C and 100 kPa, determine: a. The specific flow exergy of steam at turbine entrance b. The specific flow exergy of steam at turbine exit c. The rate of flow exergy change in the process.
Steam enters an adiabatic turbine steadily at 7 MPa, 500 °C, and 45 m/s
Steam enters an adiabatic turbine steadily at 7 MPa, 500 °C, and 45 m/s, and leaves at 100 kPa and 75 m/s. If the power output of the turbine is 5 MW and the isentropic efficiency is 77 percent, determine: A. the mass flow rate of steam through the turbine, B. the temperature at the turbine exit, and C. the rate of entropy generation during this process.
An adiabatic turbine uses steam as the medium and it operates steadily at pressure of 6...
An adiabatic turbine uses steam as the medium and it operates steadily at pressure of 6 Mpa, temperature of 600 oC and velocity inlet of 53 m/ The steam expands in the turbine and exits at pressure of 10 kPa and velocity of 82 m/s. During the process, the power produced by the turbine is 5.4 Mw and the isentropic efficiency is 50 % Format: 80.5 Format:73498 Format:4.8577 Format 0.88 Format: 7547.8 Format : 9.5 Format: 34366 Format : 6588...
Steam with the mass flow rate of 0.75 kg/s enters an adiabatic turbine steadily at 19 MPa, 600°C and 150 m/s
Steam with the mass flow rate of 0.75 kg/s enters an adiabatic turbine steadily at 19 MPa, 600°C and 150 m/s, and leaves at 150 kPa and 350 m/s. The isentropic efficiency of the turbine is 85%. Neglect potential energy. (I) Determine the exit temperature of the steam, and its quality (if saturated mixture) (ii) Calculate the actual power output of the turbine, in kW (iii) Illustrate a T-s diagram with respect to saturation lines for the isentropic process by clearly indicating all pressure, temperature,...
Steam flows steadily through a turbine at a rate of 45,000 lbm/hr, entering at 1,000 lbf/in2...
Steam flows steadily through a turbine at a rate of 45,000 lbm/hr, entering at 1,000 lbf/in2 and 900oF and leaving at a pressure of 5 lbf/in2. If the power generated by the turbine is 1.37x107 Btu/hr and the turbine is cooled at a rate of 7x106 Btu/hr, determine the temperature of the steam at the exit [oF]. Show the inlet and exit states on a P-v diagram.
Steam flows steadily through an adiabatic turbine
Steam flows steadily through an adiabatic turbine. The inlet conditions of the steam are 4 MPa, 500°C, and 80 m/s, and the exit conditions are 30 kPa, 92 percent quality, and 50 m/s. The mass flow rate of the steam is 12 kg/s. Determine a. (3) Change in kinetic energy (-23.4 kJ) b. (4) Power output (12.12 MW) c. (3) Turbine inlet area (0.012966 m2)
Refrigerant 134a enters a turbine with a mass flow rate of 12 kg/s at 54°C, 3...
Refrigerant 134a enters a turbine with a mass flow rate of 12 kg/s at 54°C, 3 MPa, while the velocity is negligible. The refrigerant expands in the turbine to a saturated vapor at 400 kPa where 10 percent of the steam is removed for some other use. The remainder of the refrigerant continues to expand to the turbine exit where the pressure is 5 kPa and quality is 75 percent. If the turbine is adiabatic, determine the rate of work...
Steam enters an adiabatic turbine steadily at 6 MPa, 500oC and 45 m/s and exits at...
Steam enters an adiabatic turbine steadily at 6 MPa, 500oC and 45 m/s and exits at 100 kPa, 100oC, and 75 m/s. The power output from the turbine is 5 MW. Calculate: the mass flow rate of steam through the turbine, the rate of exergy destroyed during this process, and the second law efficiency of the turbine.
1 out of 2 attempt Steam flows steadily through a turbine at a rate of 53,500 lbm/h, entering at 1,000 psia and 900°F and leaving at 5 psia as saturated vapor. If the power generated by the turbine is 4.26 MW, determine the rate of heat loss from the steam. Btu/s (Round to one decimal place) out
Steam enters an adiabatic turbine steadily at 3 MPa and 450°C at a rate of 8 kg/s and exits at 0.2 MPa and 150*C. If the surrounding air is at 25°C and 100 kPa, determine: a. The specific flow exergy of steam at turbine entrance b. The specific flow exergy of steam at turbine exit c. The rate of flow exergy change in the process.
An adiabatic turbine uses steam as the medium and it operates steadily at pressure of 6 Mpa, temperature of 600 oC and velocity inlet of 53 m/ The steam expands in the turbine and exits at pressure of 10 kPa and velocity of 82 m/s. During the process, the power produced by the turbine is 5.4 Mw and the isentropic efficiency is 50 % Format: 80.5 Format:73498 Format:4.8577 Format 0.88 Format: 7547.8 Format : 9.5 Format: 34366 Format : 6588...
Steam flows steadily through an adiabatic turbine. The inlet conditions of the steam are 4 MPa, 500°C, and 80 m/s, and the exit conditions are 30 kPa, 92 percent quality, and 50 m/s. The mass flow rate of the steam is 12 kg/s. Determine a. (3) Change in kinetic energy (-23.4 kJ) b. (4) Power output (12.12 MW) c. (3) Turbine inlet area (0.012966 m2)
Refrigerant 134a enters a turbine with a mass flow rate of 12 kg/s at 54°C, 3 MPa, while the velocity is negligible. The refrigerant expands in the turbine to a saturated vapor at 400 kPa where 10 percent of the steam is removed for some other use. The remainder of the refrigerant continues to expand to the turbine exit where the pressure is 5 kPa and quality is 75 percent. If the turbine is adiabatic, determine the rate of work...
