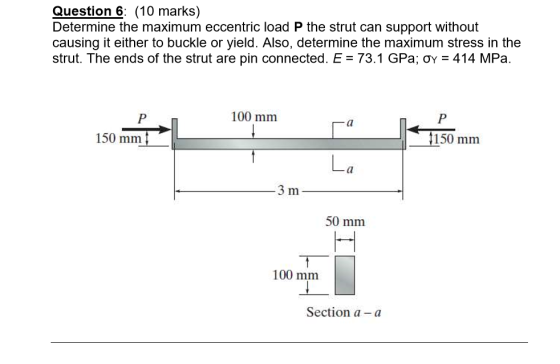

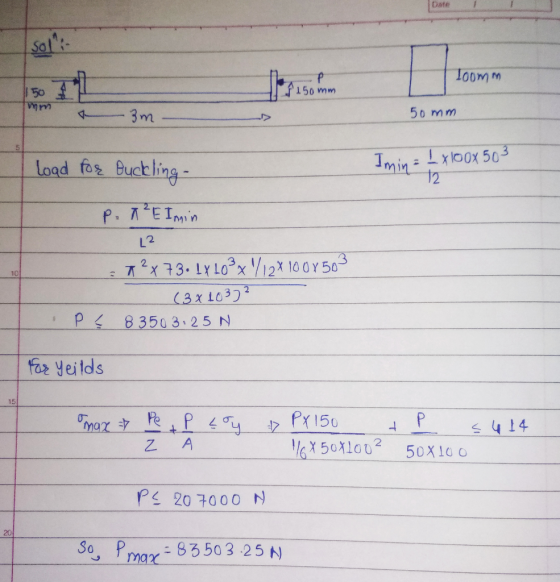

Question 6: (10 marks) Determine the maximum eccentric load P the strut...
A straight strut of cross section 12.5 mm by 5 mm, and length 1 m is mounted on strut testing machine, and then loaded axially until it buckles. The fixtures at the strut ends are pin - joints. If the...
A straight strut of cross section 12.5 mm by 5 mm, and length 1 m is mounted on strut testing machine, and then loaded axially until it buckles. The fixtures at the strut ends are pin - joints. If the maximum central deflection of the strut at failure is 0.20 m, determine the yield stress of the strut. you are given the strut material stiffness of 210 GPa.
A column is subjected to eccentric forces of P and 2P as shown in figure 5a. Calculate the maximum normal stress developed on the cross section of the column if P 60kN. (a) [10 marks] 2P 15 mm 1...
A column is subjected to eccentric forces of P and 2P as shown in figure 5a. Calculate the maximum normal stress developed on the cross section of the column if P 60kN. (a) [10 marks] 2P 15 mm 15 mm 150 m 150 mm 15 mmi 100 m 100 mm 75 mm 100 mm
A column is subjected to eccentric forces of P and 2P as shown in figure 5a. Calculate the maximum normal stress developed on the cross section...
Question 3 4 Marks) A rectangular column shown below is subjected to an eccentric compressive force....
Question 3 4 Marks) A rectangular column shown below is subjected to an eccentric compressive force. Determine the maximum eccentricity that would ensure no tensile stress in the column. 200 mm Question 4 4 Marks): For the following end conditions, calculate the critical buckling load for a 3m long rectangular column (200mm x 300mm). Assume Modulus of Elasticity of 28,000 MPa. a) Pin-Fixed b) Fixed-Free
Determine the maximum load P the frame can support without buckling member AB. Assume that AB is made of steel and is p...
Determine the maximum load P the frame can support without buckling member AB. Assume that AB is made of steel and is pinned at its ends. Est - 200 GPa, , 360 MPa. 50 mm 50 mm 4 m 50 mm
Determine the maximum load P the frame can support without buckling member AB. Assume that AB is made of steel and is pinned at its ends. Est - 200 GPa, , 360 MPa. 50 mm 50 mm 4 m...
Determine the largest load P that can be applied to the frame without causing either the...
Determine the largest load P that can be applied to the frame without causing either the
average normal stress or the average shear stress at section a-a to exceed σ = 150 Mpa and τ =
60 Mpa, respectively. Member CB has a square cross section of 25 mm on each side.
1. Determine the maximum load P the frame in Figure 1 can support without member AB...
1. Determine the maximum load P the frame in Figure 1 can support without member AB to buckle elastically. Assume that AB is made of steel and is pinned at its ends for x-r-axis buckling and fixed at its ends for y-y axis buckling. E - 200 GPa. 50 mm 4 m 50 mm 50 mm Figure 1
Three plates are joined with a 12 mm diameter pin as shown. Determine the maximum load P that can be transmitted by the joint if:(a)The maximum normal stress on a cross-section of the plates at the pin must not exceed 372 MPa.(b)The maximum bearing stress
Three plates are joined with a 12 mm diameter pin as shown. Determine the maximum load P that can be transmitted by the joint if:(a)The maximum normal stress on a cross-section of the plates at the pin must not exceed 372 MPa.(b)The maximum bearing stress between a plate and the pin must not exceed 612 MPa.(c)The maximum shear stress on a cross-section of the pin must not exceed 268 MPa.(d)The punching shear resistance of the material in the top and...
Question 5 150 d at both ends and. (6 marks) y are laced Structural Figure 3a....
Question 5 150 d at both ends and. (6 marks) y are laced Structural Figure 3a. Given for one steel 3 x 106 mm 15 Marks steel channels are used to construct a column that is 12 m long as shown in (b) The total compressive mm back to back as shown E-200 GPa. load required to buckle two such members if t in Figure 3b. Assume the columns are pinne channel be Area - 3795m F81.8 mm Hint: Compare...
Only information given e QUESTION 4 The T-section short column shown in Figure 4 carries an eccentric load P of 100 kN at the position indicated. Determine: (13 The stress induced at the location of...
Only information given
e QUESTION 4 The T-section short column shown in Figure 4 carries an eccentric load P of 100 kN at the position indicated. Determine: (13 The stress induced at the location of the load P; 4.1 4.2 The stress induced at location A, and; 4.3 The position of the neutral axis. 100 mm E X 40 mm Figure 2. T-Section short column.
e QUESTION 4 The T-section short column shown in Figure 4 carries an eccentric load...
The cantilevered beam shown below is a sandwich beam with a plastic core and aluminum alloy faces...
The cantilevered beam shown below is a sandwich beam with a plastic core and aluminum alloy faces. The member is subjected to a concentrated load at the free end. The plastic core (240mm x 200 m m in cross section) has an elastic modulus of 100 GPa and allowable normal stress of 220 MPa, while the 6 mm thick aluminum face plates have an elastic modulus of 75 GPa and allowable normal stress of 260 MPa. Question I: 118 marks]...
A column is subjected to eccentric forces of P and 2P as shown in figure 5a. Calculate the maximum normal stress developed on the cross section of the column if P 60kN. (a) [10 marks] 2P 15 mm 15 mm 150 m 150 mm 15 mmi 100 m 100 mm 75 mm 100 mm
A column is subjected to eccentric forces of P and 2P as shown in figure 5a. Calculate the maximum normal stress developed on the cross section...
Question 3 4 Marks) A rectangular column shown below is subjected to an eccentric compressive force. Determine the maximum eccentricity that would ensure no tensile stress in the column. 200 mm Question 4 4 Marks): For the following end conditions, calculate the critical buckling load for a 3m long rectangular column (200mm x 300mm). Assume Modulus of Elasticity of 28,000 MPa. a) Pin-Fixed b) Fixed-Free
Determine the maximum load P the frame can support without buckling member AB. Assume that AB is made of steel and is pinned at its ends. Est - 200 GPa, , 360 MPa. 50 mm 50 mm 4 m 50 mm
Determine the maximum load P the frame can support without buckling member AB. Assume that AB is made of steel and is pinned at its ends. Est - 200 GPa, , 360 MPa. 50 mm 50 mm 4 m...
Determine the largest load P that can be applied to the frame without causing either the
average normal stress or the average shear stress at section a-a to exceed σ = 150 Mpa and τ =
60 Mpa, respectively. Member CB has a square cross section of 25 mm on each side.
1. Determine the maximum load P the frame in Figure 1 can support without member AB to buckle elastically. Assume that AB is made of steel and is pinned at its ends for x-r-axis buckling and fixed at its ends for y-y axis buckling. E - 200 GPa. 50 mm 4 m 50 mm 50 mm Figure 1
Question 5 150 d at both ends and. (6 marks) y are laced Structural Figure 3a. Given for one steel 3 x 106 mm 15 Marks steel channels are used to construct a column that is 12 m long as shown in (b) The total compressive mm back to back as shown E-200 GPa. load required to buckle two such members if t in Figure 3b. Assume the columns are pinne channel be Area - 3795m F81.8 mm Hint: Compare...
Only information given
e QUESTION 4 The T-section short column shown in Figure 4 carries an eccentric load P of 100 kN at the position indicated. Determine: (13 The stress induced at the location of the load P; 4.1 4.2 The stress induced at location A, and; 4.3 The position of the neutral axis. 100 mm E X 40 mm Figure 2. T-Section short column.
e QUESTION 4 The T-section short column shown in Figure 4 carries an eccentric load...
The cantilevered beam shown below is a sandwich beam with a plastic core and aluminum alloy faces. The member is subjected to a concentrated load at the free end. The plastic core (240mm x 200 m m in cross section) has an elastic modulus of 100 GPa and allowable normal stress of 220 MPa, while the 6 mm thick aluminum face plates have an elastic modulus of 75 GPa and allowable normal stress of 260 MPa. Question I: 118 marks]...
