Homework Answers
Comment below in case of any trouble with the answers. I will try to respond asap.
_____________________________________________________________________

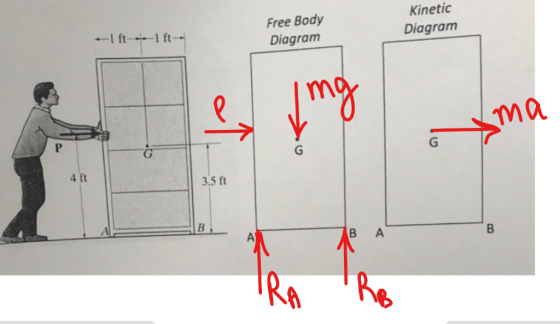

Diagram:
_____________________________________________________________________

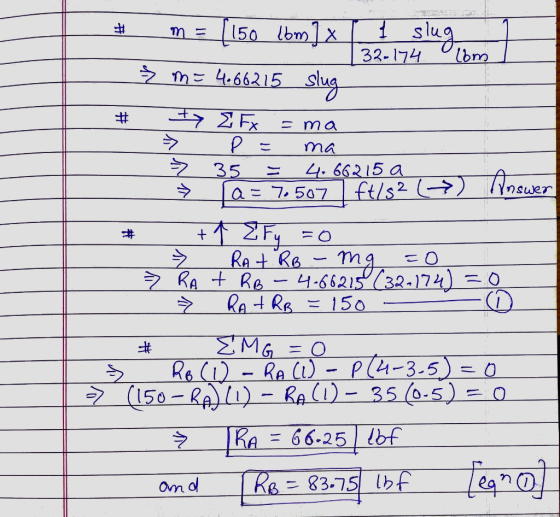

Solution:
Add Answer to:

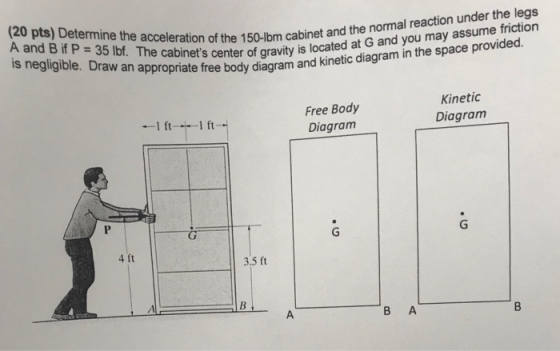

(20 pts) Determine the acceleration of the 15 utaiocaed at Gand yn the space provided. A...
