3.111 3.6 m IN 3.111 Two cables exert forces of 90 kN each on a truss...

Question

Question

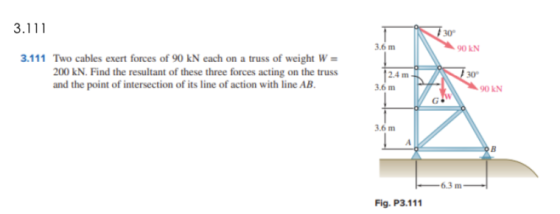

3.111 3.6 m IN 3.111 Two cables exert forces of 90 kN each on a truss of weight W = 200 KN. Find the resultant of these three

engineering Civil-Engineering

Answer 1

Answer #1

yEigoxus30+ 9oxLs30= 155.884 kn y =fyi = 9oxsingo-9oxsingo-w-45-45-200-29o KN 1 329.241 eN fre Fe JtJISs.s4 t20) 50 9- Moment

Answer 2

Answer #2

I do not understand the moment 90xsin30ºx(6.3/3)

Answer 3
