Calculate the normal force FCD B 30° 30° D C a 5 KN 10 KN

Question

Question

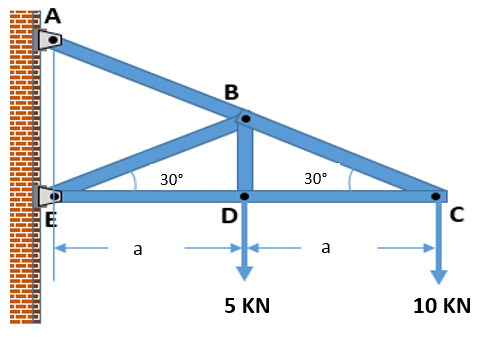

Calculate the normal force F_CD

B 30° 30° D C a 5 KN 10 KN

engineering Mechanical-Engineering

Answer 1

Answer #1

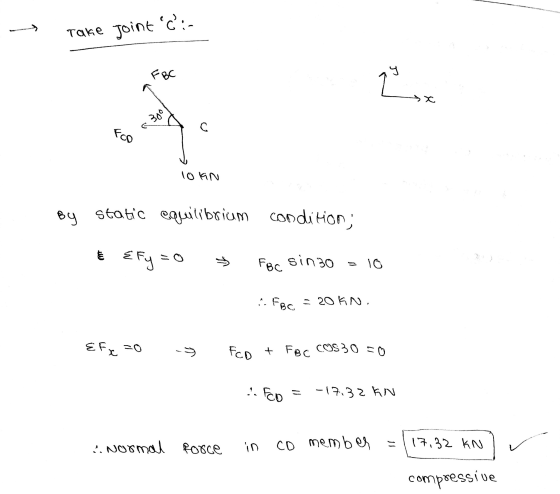

--- Take Joint C:- 22 x 300 с Fco 10 KN By static equilibrium condition Efy → FBC sinzo 10 .. FBC = 20 KN. EFx=0 FCD + FBC CO

Answer 2
