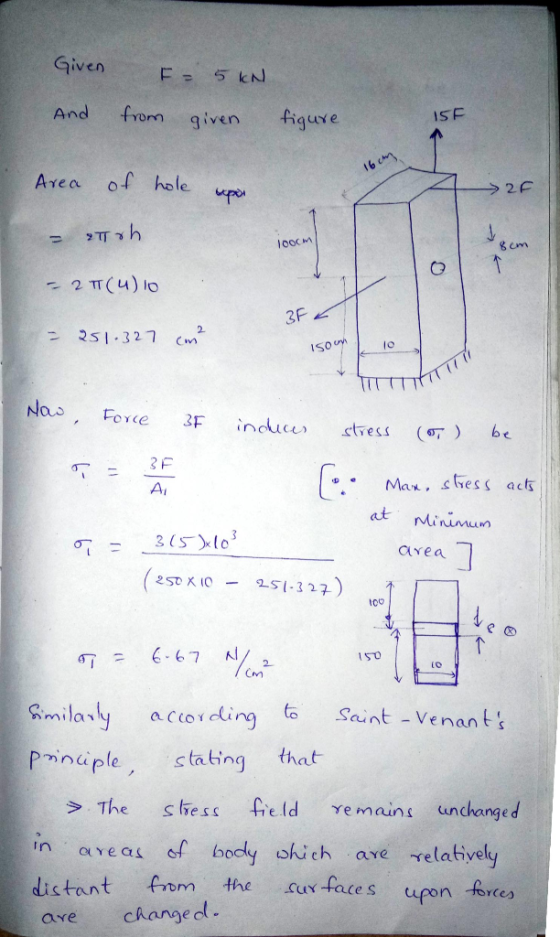

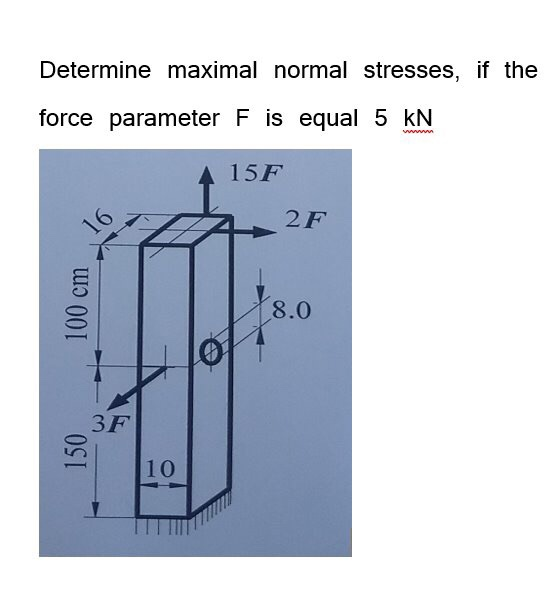

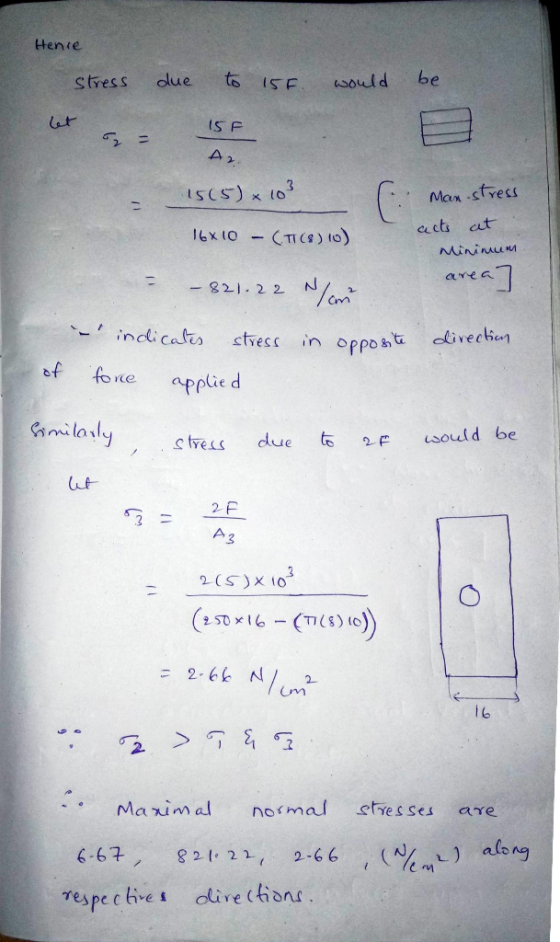

Determine maximal normal stresses, if the force parameter F is equal 5 kN ww 15F 16...
Determine the normal stresses at A and B. 5, 12 kN 140 mm A B width...
Determine the normal stresses at A and B. 5, 12 kN 140 mm A B width 112 mm thickness 72 mm
A)Determine the internal normal force at point C, if F = 45 kN
A)Determine the internal normal force at point C, if F = 45
kNB)Determine the shear force at point C.C)Determine the bending moment at point C
Knowing that the magnitude of the horizontal force P is 10 kN, determine the stresses at...
Knowing that the magnitude of the horizontal force
P is 10 kN, determine the
stresses at points A and B
30 mm A B 24 mm D P 45 mm 15 mm
M8.20 C-clamp normal stresses scenes Width 140 mm 16 kN Thickness 22 mm 55 mm B...
M8.20 C-clamp normal stresses scenes Width 140 mm 16 kN Thickness 22 mm 55 mm B CA (MPa) Determine the normal stresses at A and B (+ = tension, compression). -= Ов (MPа) Try one 1st 2nd 3rd enter attempt
Determine the normal stress at point A only. Change the 300 kN force to a 250...
Determine the normal stress at point A only. Change the 300 kN force to a 250 kN force acting up and the 500 kN force to a 300 kN force acting down. 500 kN 300 kN 100 mm 100 mm A 100 mm 150 mm 50 mim 150 mim 150 mm 150 mr
Variant: 8 Complexity: 2 3F 2F F PÅ B B R 2/30 a с Given: P...
Variant: 8 Complexity: 2 3F 2F F PÅ B B R 2/30 a с Given: P =20 kN, P = 40 kN, P, = 100 KN, P = 80 kN, a = 3 m, b = 4 m,c=5 m. Goal: obtain equations of normal force in cross-sections of a rod and draw the graphs of its distribution along the length of a rod.
8.42A 13-kN force is applied as shown to the 60-mm-diameter cast-iron post ABD. At point H, determine (a) the principal stresses and principal planes, (b) the maximum shearing stress 13 kN 300 mm 100...
8.42A 13-kN force is applied as shown to the 60-mm-diameter cast-iron post ABD. At point H, determine (a) the principal stresses and principal planes, (b) the maximum shearing stress 13 kN 300 mm 100 mm 125 mm 150 mm Fig. P8.42
8.42A 13-kN force is applied as shown to the 60-mm-diameter cast-iron post ABD. At point H, determine (a) the principal stresses and principal planes, (b) the maximum shearing stress 13 kN 300 mm 100 mm 125 mm 150 mm...
If F = 8.0 kN, determine the magnitude of the resultant force acting on the screw eye.(Figure 1)
Part A If F = 8.0 kN, determine the magnitude of the resultant force acting on the screw eye.(Figure 1) Part B Determine the direction of the resultant force acting on the screw eye measured clockwise from the x axis.
PROBLEM 1: Given the overhang beam shown below and subjected to a downward force equal to 20 kN at B. The stiffiess of the beam is El 10 kN-m2 and that of the spring is k (note: F-kA). Determine...
PROBLEM 1: Given the overhang beam shown below and subjected to a downward force equal to 20 kN at B. The stiffiess of the beam is El 10 kN-m2 and that of the spring is k (note: F-kA). Determine the value of k such that the deflection at point D due to the 20 kN load is zero. 20 kN 4 m 4 m
PROBLEM 1: Given the overhang beam shown below and subjected to a downward force equal to...
Question 15 For the truss shown in the figure below, determine the vertical reaction force at support A 5 kN 3 m 45 1 m 2 m +5 KN + 4.3 kN -3 kN -5 kN Question 16 For the truss shown in the fi...
Question 15 For the truss shown in the figure below, determine the vertical reaction force at support A 5 kN 3 m 45 1 m 2 m +5 KN + 4.3 kN -3 kN -5 kN Question 16 For the truss shown in the figure below, determine the horizontal reaction force at support D: 5 kN 45° 1 m 2 m + 15 kN - 12.5 kN 0 kN +5 kN Question 17 For the truss shown in the figure...
Determine the normal stresses at A and B. 5, 12 kN 140 mm A B width 112 mm thickness 72 mm
A)Determine the internal normal force at point C, if F = 45
kNB)Determine the shear force at point C.C)Determine the bending moment at point C
Knowing that the magnitude of the horizontal force
P is 10 kN, determine the
stresses at points A and B
30 mm A B 24 mm D P 45 mm 15 mm
M8.20 C-clamp normal stresses scenes Width 140 mm 16 kN Thickness 22 mm 55 mm B CA (MPa) Determine the normal stresses at A and B (+ = tension, compression). -= Ов (MPа) Try one 1st 2nd 3rd enter attempt
Determine the normal stress at point A only. Change the 300 kN force to a 250 kN force acting up and the 500 kN force to a 300 kN force acting down. 500 kN 300 kN 100 mm 100 mm A 100 mm 150 mm 50 mim 150 mim 150 mm 150 mr
Variant: 8 Complexity: 2 3F 2F F PÅ B B R 2/30 a с Given: P =20 kN, P = 40 kN, P, = 100 KN, P = 80 kN, a = 3 m, b = 4 m,c=5 m. Goal: obtain equations of normal force in cross-sections of a rod and draw the graphs of its distribution along the length of a rod.
8.42A 13-kN force is applied as shown to the 60-mm-diameter cast-iron post ABD. At point H, determine (a) the principal stresses and principal planes, (b) the maximum shearing stress 13 kN 300 mm 100 mm 125 mm 150 mm Fig. P8.42
8.42A 13-kN force is applied as shown to the 60-mm-diameter cast-iron post ABD. At point H, determine (a) the principal stresses and principal planes, (b) the maximum shearing stress 13 kN 300 mm 100 mm 125 mm 150 mm...
PROBLEM 1: Given the overhang beam shown below and subjected to a downward force equal to 20 kN at B. The stiffiess of the beam is El 10 kN-m2 and that of the spring is k (note: F-kA). Determine the value of k such that the deflection at point D due to the 20 kN load is zero. 20 kN 4 m 4 m
PROBLEM 1: Given the overhang beam shown below and subjected to a downward force equal to...
Question 15 For the truss shown in the figure below, determine the vertical reaction force at support A 5 kN 3 m 45 1 m 2 m +5 KN + 4.3 kN -3 kN -5 kN Question 16 For the truss shown in the figure below, determine the horizontal reaction force at support D: 5 kN 45° 1 m 2 m + 15 kN - 12.5 kN 0 kN +5 kN Question 17 For the truss shown in the figure...
