Question 16 For the truss shown in the figure below, determine the horizontal reaction force at support D: 5 kN 45° 1 m 2 m + 15 kN - 12.5 kN 0 kN +5 kN

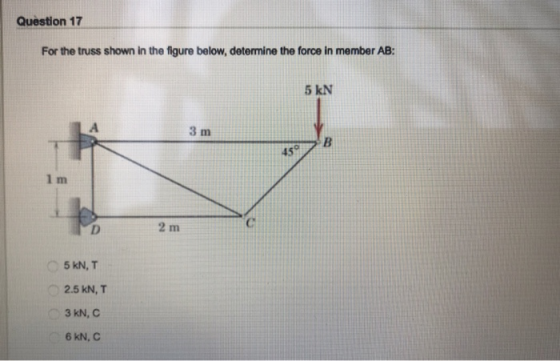

Question 17 For the truss shown in the figure below, determine the force in member AB: 5 kN 3 m 45 2 m 5 kN, T 2.5 kN, T 3kN, C 6 KN, C

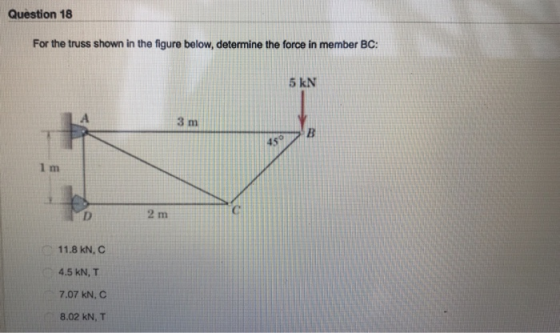

Question 18 For the truss shown in the figure below, determine the force in member BC: 5 kN 3 m 45 1 m 2 m 11.8 KN, C 4.5 kN, T 7.07 kN, C 8.02 KN, T

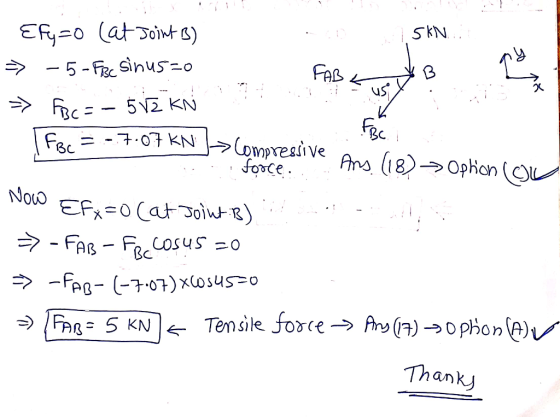

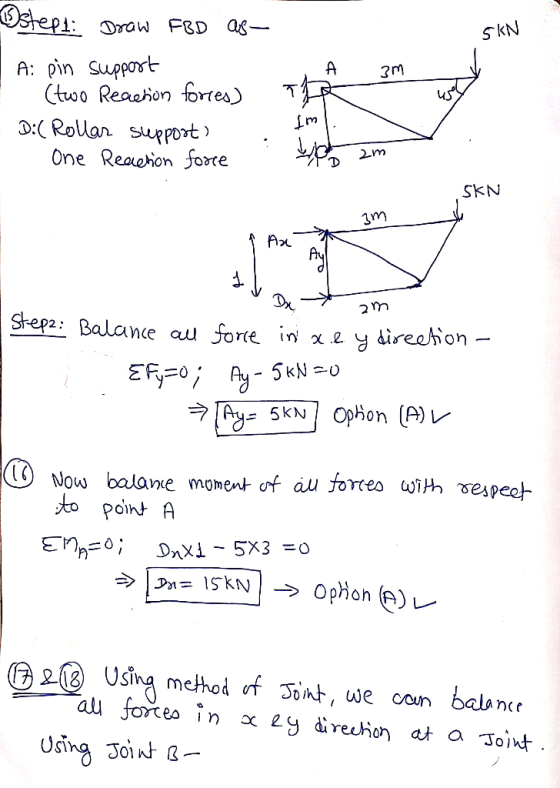

Homework Answers
Thanks
Add Answer to:

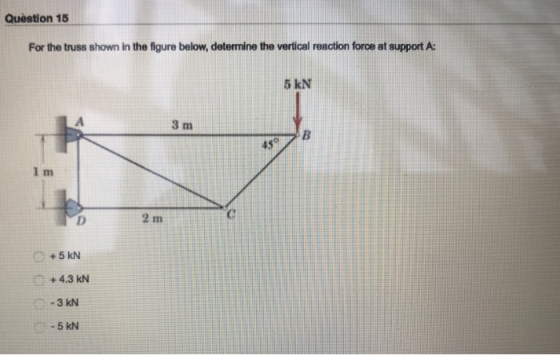

Question 15 For the truss shown in the figure below, determine the vertical reaction force at support A 5 kN 3 m 45 1 m 2 m +5 KN + 4.3 kN -3 kN -5 kN Question 16 For the truss shown in the fi...
